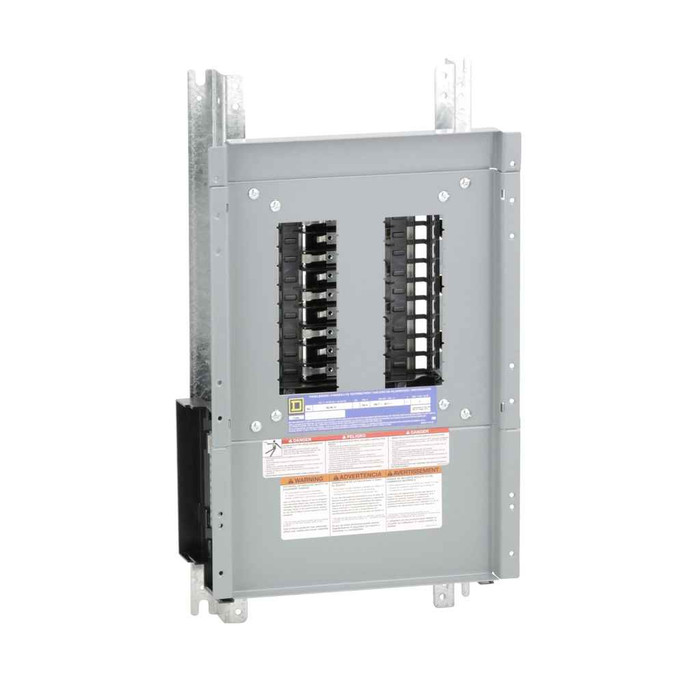

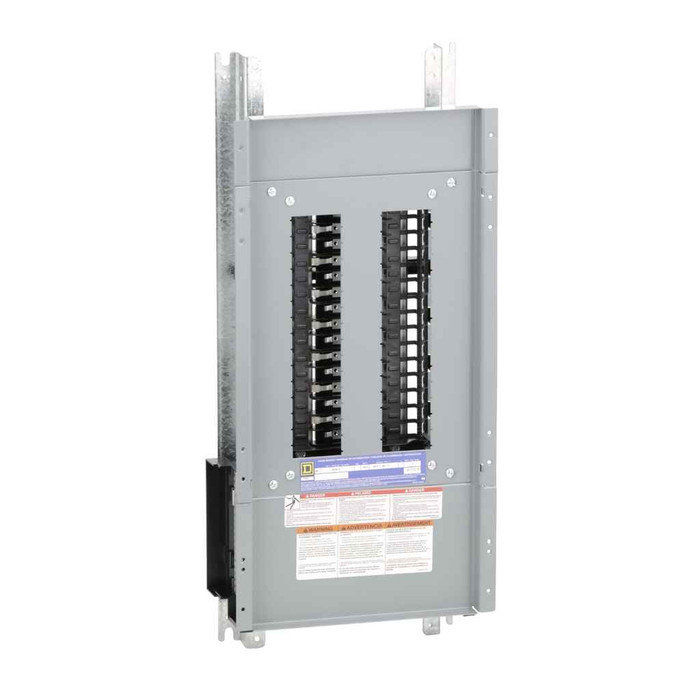

Schneider Electric NQ Panelboard Interior 100A Main Lugs with Copper Bus

Schneider Electric NQ Panelboard Interior 100A Main Lugs with Copper Bus

Professional electrical distribution solution for commercial applications

The Schneider Electric NQ Panelboard Interior delivers reliable 100A electrical distribution with main lugs configuration and copper bus construction. This commercial-grade panelboard interior features a 20-inch enclosure width and 10.44-inch product width, providing versatile installation options for professional electrical systems. Built with quality copper bus material and designed for standard function operation, this interior ensures dependable power distribution performance.

Professional Features & Benefits

• 100A Line Rated Current: Provides substantial power handling capacity for commercial electrical distribution requirements
• Main Lugs Configuration: Offers flexible connection options without requiring a main breaker, allowing for upstream protection flexibility
• Copper Bus Construction: Ensures excellent conductivity and long-term reliability with superior corrosion resistance
• 20-inch Enclosure Width: Accommodates multiple circuit breakers and provides ample space for professional installations
• Commercial Market Segmentation: Engineered specifically for commercial applications with appropriate ratings and certifications
• RoHS Compliant Design: Meets environmental standards with mercury-free construction and toxic heavy metal-free materials
• Standard Function Operation: Provides reliable, straightforward electrical distribution without complex features

Technical Specifications

• Accessories: NQMB2HJ
• China Rohs In Scope: No
• China Rohs Label: 1
• Enclosure Nominal Width: 20 in
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP2303005
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant
• Function Option: Standard
• Function Option Id: STANDARD
• H And D Domain: Safety
• H And D Enrichment Assignment: no
• H And D Enrichment Class 3: Panel components
• H And D Enrichment Class 4: Panelboard interior
• H And D Enrichment Function: ENCLOSURES
• H And D Subrange: COM
• Legacy Weee Scope: In
• Line Rated Current: 100 A
• Load Center Type: main lugs
• Market Segmentation: Commercial
• Market Segmentation Id: COMMERCIAL
• Mercury Free: Yes
• Packaging Made With Recycled Cardboard: Yes
• Packaging Without Single Use Plastic: No
• Product Availability: Stock - Normally stocked in distribution facility
• Product Contributes To Saved And Avoided Emissions: No
• Product Material: copper
• Product Or Component Type: interiors
• Product Width: 10.44 in
• Reach Compliance Directive: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes
• Reach Free Shvc: Yes
• Reach Full Compliance Status: Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: NOT_CONTAINING_SVHC
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2532
• Rohs Eur Full Compliance Status: Compliant
• Rohs Eur Full Compliance Status Id: COMPLIANT
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Sustainable Packaging: No
• Take Back: No
• Tier: 1
• Tier Id: 1
• Toxic Heavy Metal Free: Yes
• Wd Status: 1 - GSC certified
• With Recycled Cardboard: Yes
• Without Single Use Plastic: No
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Office Buildings
• Retail Establishments
• Light Industrial Facilities
• Multi-Unit Properties
• Professional Services Buildings
• Educational Facilities
• Healthcare Facilities

Why Choose Schneider Electric Quality?

Schneider Electric panelboard interiors deliver proven reliability with RoHS compliant construction and mercury-free materials. The copper bus design ensures long-term performance while meeting commercial market requirements. With stock availability and returnable design, this interior provides the dependable electrical distribution solution professionals trust.
