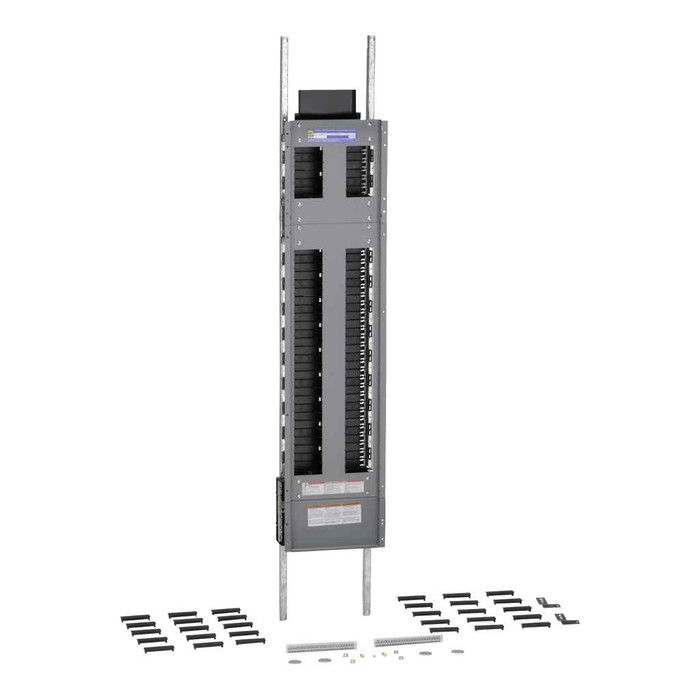

Schneider Electric NF Panelboard Interior 600A Main Lugs with Copper Bus

Schneider Electric NF Panelboard Interior 600A Main Lugs with Copper Bus

Professional electrical distribution for commercial applications

The Schneider Electric NF Panelboard Interior delivers reliable 600A electrical distribution with main lugs configuration and copper bus construction. This commercial-grade panelboard interior features 42 spaces for comprehensive circuit protection and accommodates EDB/EDG/EDJ circuit breakers with 65 kA interrupting capacity. The copper bus material ensures excellent conductivity and long-term performance in demanding commercial environments.

Professional Features & Benefits

• 600A Line Rated Current: Handles substantial electrical loads for commercial facilities with reliable power distribution capacity.
• 65 kA Interrupting Rating: Provides robust fault protection with high short-circuit current interrupting capability for enhanced safety.
• 42 Circuit Spaces: Accommodates extensive circuit protection requirements with flexible branch circuit configuration options.
• Copper Bus Construction: Delivers superior electrical conductivity and corrosion resistance for long-term reliability and performance.
• Main Lugs Configuration: Enables flexible upstream protection coordination and simplified installation in various electrical systems.
• EDB/EDG/EDJ Compatibility: Accepts standard Schneider Electric circuit breakers for consistent performance and easy maintenance.
• Commercial Market Segmentation: Engineered specifically for commercial applications with appropriate ratings and certifications.

Technical Specifications

• Carbon Footprint: 342.8601594
• Carbon Footprint Kg Co2 Eq Total Life Cycle: 342.8601594
• China Rohs In Scope: No
• China Rohs Label: 1
• Circuit Breaker Type: EDB/EDG/EDJ
• Country Of Origin: Mexico
• Distribution Carbon Footprint: 4.917582629
• Enclosure Nominal Height: 56 in
• Enclosure Nominal Width: 20 in
• End Of Life Carbon Footprint: 41.60370182
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP2303003
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant
• Function Option: Standard
• Function Option Id: STANDARD
• H And D Domain: Safety
• H And D Enrichment Assignment: no
• H And D Enrichment Class 3: Panel components
• H And D Enrichment Class 4: Panelboard interior
• H And D Enrichment Function: ENCLOSURES
• H And D Subrange: COM
• Installation Carbon Footprint: 1.479501424
• Iu Rated Interrupted Current: 65 kA
• Legacy Weee Scope: In
• Line Rated Current: 600 A
• Load Center Type: main lugs
• Manufacturing Carbon Footprint: 250.1559132
• Market Segmentation: Commercial
• Market Segmentation Id: COMMERCIAL
• Mercury Free: Yes
• Number Of Spaces: 42
• Package Weight Lbs: 17.06 kg
• Packaging Made With Recycled Cardboard: Yes
• Packaging Without Single Use Plastic: No
• Product Availability: Stock - Normally stocked in distribution facility
• Product Contributes To Saved And Avoided Emissions: No
• Product Height: 52 in
• Product Material: copper
• Product Width: 10.44 in
• Reach Compliance Directive: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes
• Reach Free Shvc: Yes
• Reach Full Compliance Status: Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: NOT_CONTAINING_SVHC
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2532
• Rohs Eur Full Compliance Status: Compliant
• Rohs Eur Full Compliance Status Id: COMPLIANT
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Sustainable Packaging: No
• Take Back: No
• Tier: 1
• Tier Id: 1
• Total Lifecycle Carbon Footprint: 343 kg CO2 eq.
• Toxic Heavy Metal Free: Yes
• Use Carbon Footprint: 44.70346035
• Wd Status: 5 - INITIALIZED WITH DataSCAN OK (Migration)
• With Recycled Cardboard: Yes
• Without Single Use Plastic: No
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Office Buildings
• Retail Establishments
• Light Industrial Facilities
• Multi-Unit Properties
• Professional Services Buildings
• Educational Facilities
• Healthcare Facilities

Why Choose Schneider Electric Quality?

Schneider Electric panelboard interiors deliver proven reliability with copper bus construction and comprehensive regulatory compliance including RoHS and REACH directives. The mercury-free design and toxic heavy metal-free construction ensure environmental responsibility while maintaining the performance standards required for commercial electrical distribution systems.
