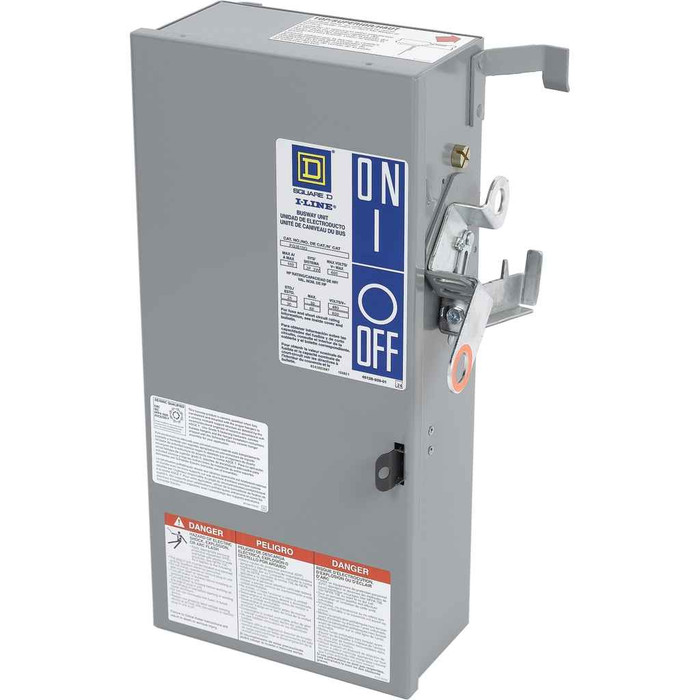

Schneider Electric I-Line Busway Fusible Plug-In Unit 100A 600VAC 3-Pole with Ground
Professional Power Distribution for Commercial and Industrial Applications
The Schneider Electric I-Line Busway Fusible Plug-In Unit delivers reliable 100A power distribution with 600VAC rating and 3-pole configuration with ground. This fusible disconnect unit features plug-in electrical connection for easy installation and maintenance in I-Line busway systems, providing professional-grade power distribution for commercial and industrial facilities.
Professional Features & Benefits
- 100A Current Rating: Handles substantial electrical loads for demanding commercial and industrial applications with reliable performance.
- 600VAC Voltage Rating: Compatible with standard commercial voltage systems for versatile installation options.
- 3-Pole with Ground Configuration: Provides complete three-phase power distribution with safety grounding for comprehensive electrical protection.
- Fusible Disconnect Design: Incorporates H, K, J or R fuse types for overcurrent protection and safe electrical isolation during maintenance.
- Plug-In Connection: Enables quick installation and removal from I-Line busway systems without hardwired connections.
- I-Line Busway Compatibility: Designed specifically for Schneider Electric I-Line busway systems ensuring proper fit and performance.
- 20-Year Average Life Duration: Engineered for long-term reliability reducing replacement costs and maintenance requirements.
Technical Specifications
- Accessories: HRK1020
- Average Life Duration: 20 year(s)
- Busbar Description: ground
- China Rohs In Scope: No
- Circularity Profile: ENVEOLI1407016EN
- Country Of Origin: Mexico
- Device Type: Busway & cable - LV busway
- Disconnector Device Type: fusible disconnect
- Electrical Connection: plug-in
- End Of Life Doc Ref: ENVEOLI1407016EN
- Environmental Disclosure: ENVPEP1407016EN
- Eoli Availability Display: Yes
- Eu Rohs Directive: Compliant with Exemptions
- Field Service Division: PPIBS
- Function Option: Standard
- Function Option Id: STANDARD
- Fuse Type: H, K, J or R
- Green Premium Status For Reporting: Green Premium product
- Html Descr: Busway FS Plug-In 100A
- Ie Rated Operational Current: 100 A
- Legacy Weee Scope: In
- Manufacturer: Schneider Electric
- Mercury Free: Yes
- Number Of Poles: 3
- Package Weight Lbs: 7.961 kg
- Packaging Made With Recycled Cardboard: No
- Packaging Without Single Use Plastic: No
- Product Availability: Stock - Normally stocked in distribution facility
- Product Contributes To Saved And Avoided Emissions: No
- Product Or Component Type: plug-in unit
- Range Of Product: I-Line
- Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
- Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
- Reach Full Compliance Status Id: CONTAINS_SVHC
- Reach Regulation: Reference contains Substances of Very High Concern above the threshold
- Recycled Metal Content At Cr Level: 0%
- Relationshiptype: Compatible relationship
- Return Indicator: Y
- Returnability: Yes
- Rohs Eur Conformity Date: 1911
- Rohs Eur Full Compliance Status: Compliant with Exemptions
- Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
- Rohs Eur In Scope: Yes
- Rohs Eur Status: Compliant with Exemptions
- Rohs Exemption Information: Yes
- Scope Perimeter: At least in Europe
- Serviceability: No
- Sustainable Packaging: No
- Take Back: No
- Tier: 2
- Tier Id: 2
- Traceability: No
- Wd Status: 1 - GSC certified
- With Recycled Cardboard: No
- Without Single Use Plastic: No
- Department: Electrical
Professional Applications
- Commercial Building Power Distribution
- Industrial Facility Electrical Systems
- Manufacturing Plant Power Management
- Data Center Electrical Infrastructure
- Healthcare Facility Power Distribution
- Educational Institution Electrical Systems
- Retail and Office Building Applications
Why Choose Schneider Electric Quality?
Schneider Electric I-Line busway systems provide proven reliability with 20-year average life duration and Green Premium product status. RoHS compliant construction with mercury-free design ensures environmental responsibility while maintaining professional performance standards for critical power distribution applications.
Manufacturer Resources
Product Specs
- Accessories:
- HRK1020
- Average Life Duration:
- 20 year(s)
- Busbar Description:
- ground
- China Rohs In Scope:
- No
- Circularity Profile:
- ENVEOLI1407016EN
- Country Of Origin:
- Mexico
- Device Type:
- Busway & cable - LV busway
- Disconnector Device Type:
- fusible disconnect
- Electrical Connection:
- plug-in
- End Of Life Doc Ref:
- ENVEOLI1407016EN
- Environmental Disclosure:
- ENVPEP1407016EN
- Eoli Availability Display:
- Yes
- Eu Rohs Directive:
- Compliant with Exemptions
- Field Service Division:
- PPIBS
- Function Option:
- Standard
- Fuse Type:
- H, K, J or R
- Green Premium Status For Reporting:
- Green Premium product
- Html Descr:
- Busway FS Plug-In 100A
- Ie Rated Operational Current:
- 100 A
- Legacy Weee Scope:
- In
- Mercury Free:
- Yes
- Number Of Poles:
- 3
- Package Weight Lbs:
- 7.961 kg
- Packaging Made With Recycled Cardboard:
- No
- Packaging Without Single Use Plastic:
- No
- Product Availability:
- Stock - Normally stocked in distribution facility
- Product Contributes To Saved And Avoided Emissions:
- No
- Product Or Component Type:
- plug-in unit
- Range Of Product:
- I-Line
- Reach Full Compliance Status:
- Reference contains Substances of Very High Concern above the threshold
- Recycled Metal Content At Cr Level:
- 0%
- Relationshiptype:
- Compatible relationship
- Rohs Eur Conformity Date:
- 1911
- Rohs Exemption Information:
- Yes
- Serviceability:
- No
- Sustainable Packaging:
- No
- Take Back:
- No
- Tier:
- 2
- Traceability:
- No
- Wd Status:
- 1 - GSC certified
- With Recycled Cardboard:
- No
- Without Single Use Plastic:
- No
- Department:
- Electrical
- Product Type:
- Plug-in Unit
- Product Group:
- Enclosures & Wiring Infrastructure
Schneider PQ3610G – Frequently Asked Questions
1) What fuses does the PQ3610G busway plug-in unit take?
It accepts Class H, K, J or R fuses at up to 100 A. Fuses are not part of the unit, so order them separately and size them to the branch load. With three poles plus ground, you are fusing three phases: three fuses per unit.
2) Is this a 3-phase 4-wire unit, or 3-phase 3-wire with a ground?
Three poles with an equipment ground bar, not a neutral. The PQ3610G fuses three phases and lands a ground; if the branch circuit needs a neutral for line-to-neutral loads, you need a unit configured with a neutral instead.
3) Can I use a 100A I-Line fusible plug-in unit on a 480V three-phase system?
Yes. The unit is rated 600 VAC, which covers 480Y/277 V and 208Y/120 V three-phase distribution, with a rated operational current of 100 A.
4) Does the PQ3610G give me a disconnect for maintenance, or do I need a separate safety switch downstream?
It is a fusible disconnect in its own right, so it serves as the local disconnecting means and overcurrent device for the tap it feeds. A separate downstream safety switch is only needed if the equipment being fed sits out of sight of the busway run or your local code requires a disconnect at the machine.
5) Is there a hubbed rainproof or accessory kit listed for this I-Line plug-in unit?
HRK1020 is the listed accessory for the PQ3610G. It is ordered separately from the plug-in unit itself.
6) Can the PQ3610G plug-in unit be repaired or rebuilt in the field?
No. Schneider lists it as non-serviceable, so it is a replace-in-kind item rather than something you rebuild. Fuse replacement is normal maintenance; internal repair is not supported.
7) Does this Schneider busway unit meet RoHS and REACH for a facility with sustainability reporting?
It carries Green Premium status and is mercury free, and is RoHS compliant with exemptions. On REACH, Schneider declares the reference contains Substances of Very High Concern above the threshold, with environmental disclosure ENVPEP1407016EN and end-of-life profile ENVEOLI1407016EN available for your documentation file. Recycled metal content at CR level is 0%.
8) Where is the Schneider PQ3610G made, and what is its expected service life?
Built in Mexico, with a 20 year average life duration published by Schneider. For a facility planning busway replacement cycles, that is the figure to budget against.
