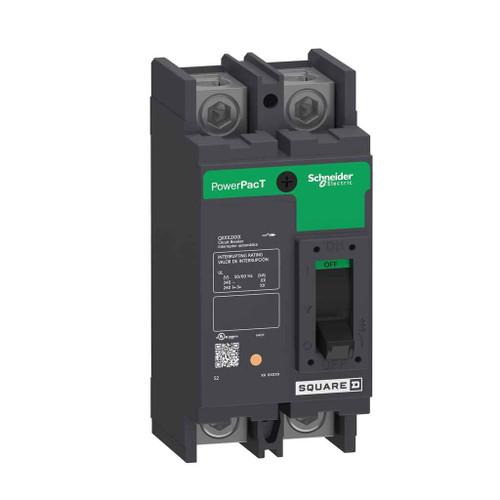

Schneider Electric QDP22TM PowerPact 2-Pole Circuit Breaker Kit with Thermal-Magnetic Trip Unit

Schneider Electric QDP22TM PowerPact 2-Pole Circuit Breaker Kit with Thermal-Magnetic Trip Unit

Professional HACR-rated circuit protection for commercial distribution applications

The Schneider Electric QDP22TM PowerPact circuit breaker delivers reliable 2-pole protection with thermal-magnetic trip technology for commercial distribution systems. This HACR-rated unit features operating handle control and lug mounting support, designed for 50/60 Hz network frequency operation with 80% continuous current rating and 15-year average life duration.

Professional Features & Benefits

• HACR Rating: Certified for heating, air conditioning, and refrigeration applications ensuring reliable motor load protection
• Thermal-Magnetic Trip Technology: Provides precise overcurrent protection with 1200 A magnetic hold current and 2400 A tripping current
• 2-Pole Configuration: Delivers comprehensive protection for single-phase and split-phase electrical systems
• 80% Continuous Current Rating: Ensures reliable operation at rated capacity for sustained loads without derating
• 15-Year Average Life Duration: Engineered for long-term reliability reducing maintenance costs and replacement frequency
• 50/60 Hz Network Frequency: Compatible with standard North American and international power systems
• Compact Design: 3.00" W x 6.47" H x 3.93" D dimensions optimize panel space utilization

Technical Specifications

• Ambient Air Temperature For Operation: 40-70 °C
• Average Life Duration: 15 year(s)
• Carbon Footprint: 359.0864937
• Carbon Footprint Kg Co2 Eq Total Life Cycle: 359.0864937
• China Rohs In Scope: No
• Circuit Breaker Application: HACR rated
• Continuous Current Rating: 80%
• Control Type: operating handle
• Country Of Origin: Mexico
• Device Application: distribution
• Device Type: LV equipment - Low voltage circuit breaker
• Distribution Carbon Footprint: 0.322563165
• End Of Life Carbon Footprint: 2.16725213
• Environmental Disclosure: ENVPEP2311048EN
• Eoli Availability Display: No need of specific recycling operations
• Field Service Division: PPIBS
• Function Option: Standard
• Function Option Id: STANDARD
• Green Premium Status For Reporting: Green Premium product
• H And D Domain: Safety
• H And D Enrichment Assignment: no
• H And D Enrichment Class 3: Circuit Breakers
• H And D Enrichment Class 4: MCCB
• H And D Enrichment Function: ENCLOSURES
• H And D Subrange: RESI
• Halogen Content Performance: Halogen free product
• Halogen Free Status: Halogen free product
• Halogene Performance: Halogen free product
• Installation Carbon Footprint: 0
• Legacy Weee Scope: In
• Magnetic Hold Current: 1200 A
• Magnetic Tripping Current: 2400-2400 A
• Manufacturing Carbon Footprint: 11.78406586
• Market Segmentation: Commercial
• Market Segmentation Id: COMMERCIAL
• Mercury Free: Yes
• Mounting Support: lug
• Network Frequency: 50/60 Hz
• Package Weight Lbs: 1.474 kg
• Packaging Made With Recycled Cardboard: No
• Packaging Without Single Use Plastic: No
• Poles Description: 2P
• Product Availability: Stock - Normally stocked in distribution facility
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 3.93 in
• Product Height: 6.47 in
• Product Or Component Type: circuit breaker
• Product Width: 3.00 in
• Range: PowerPact
• Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: CONTAINS_SVHC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 1909
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant with Exemptions
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Serviceability: No
• Sustainable Packaging: No
• Take Back: No
• Tier: 1
• Tier Id: 1
• Total Lifecycle Carbon Footprint: 359 kg CO2 eq.
• Traceability: Yes
• Trip Unit Technology: thermal-magnetic
• Use Carbon Footprint: 344.8126125
• Utilisation Category: category A
• Wd Status: 1 - GSC certified
• Wire Stripping Length: 22 mm
• With Recycled Cardboard: No
• Without Single Use Plastic: No
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Building Distribution Panels
• HVAC Equipment Protection
• Motor Control Centers
• Industrial Distribution Systems
• Retail and Office Facilities
• Multi-Unit Residential Properties
• Emergency Power Systems

Why Choose Schneider Electric Quality?

Schneider Electric PowerPact circuit breakers deliver proven reliability with 15-year average life duration and halogen-free construction. This Green Premium product meets stringent environmental standards while providing category A utilization performance for demanding commercial applications.
