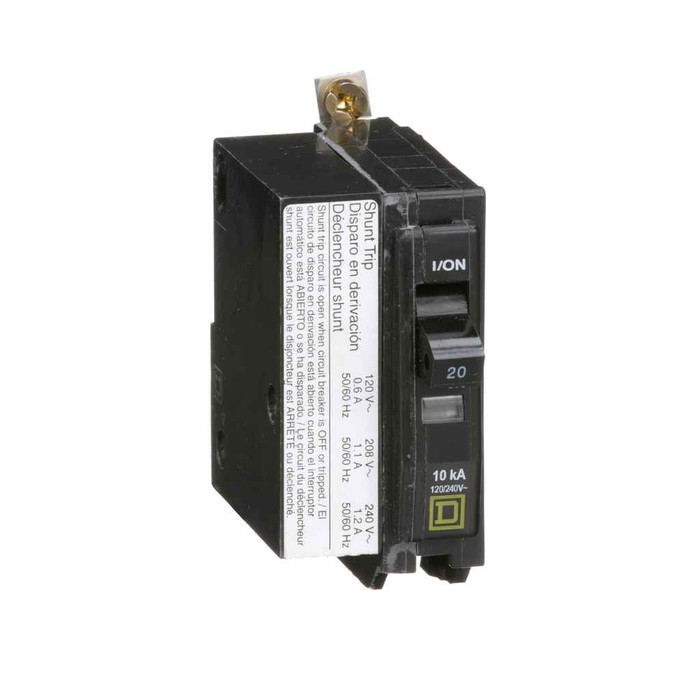

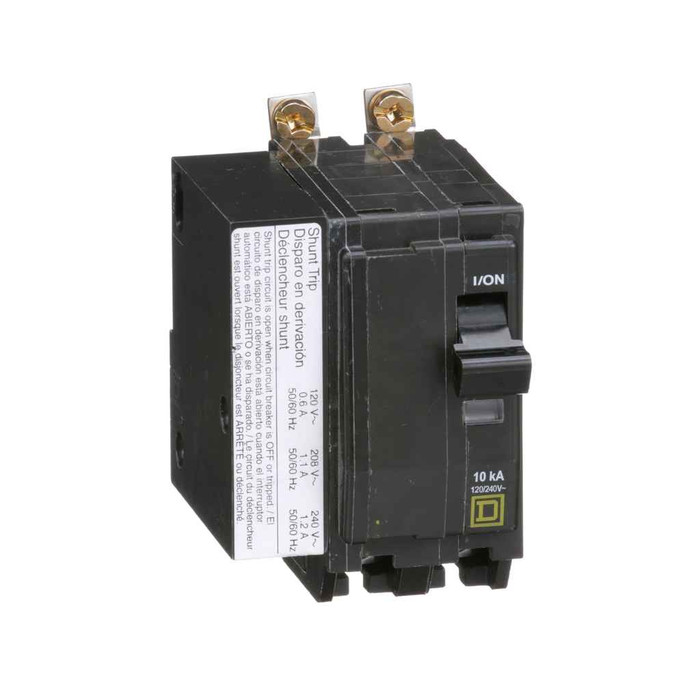

Schneider Electric QOB Bolt-On Thermal-Magnetic Circuit Breaker 20A 10kA 1-2 Pole Miniature Circuit Protection System

Schneider Electric QOB Bolt-On Thermal-Magnetic Circuit Breaker 20A 10kA 1-2 Pole Miniature Circuit Protection System

Professional miniature circuit protection with reliable thermal-magnetic operation

Schneider Electric QOB Bolt-On Thermal-Magnetic Circuit Breaker delivers dependable circuit protection with 20A line rated current and 10kA interrupting capacity. This miniature circuit breaker features bolt-on mounting for secure installation and pressure plate electrical connections for reliable performance. Built for commercial applications with standard function operation and halogen-free construction.

Professional Features & Benefits

• 20A Line Rated Current: Provides precise overcurrent protection for medium-load commercial and residential circuits
• 10kA Interrupting Capacity: Safely interrupts fault currents up to 10,000 amperes for enhanced system protection
• Bolt-On Mounting: Ensures secure mechanical connection and prevents accidental disconnection during operation
• Pressure Plate Connection: Delivers reliable electrical contact with consistent connection integrity
• Thermal-Magnetic Operation: Combines thermal overload and magnetic short-circuit protection in one compact device
• Halogen-Free Construction: Environmentally responsible design reduces harmful emissions during operation and disposal
• 15-Year Average Life Duration: Long service life reduces maintenance costs and ensures reliable long-term protection

Technical Specifications

• Ambient Air Temperature For Operation: 40 °C
• Average Life Duration: 15 year(s)
• China Rohs In Scope: No
• China Rohs Label: 1
• Circuit Breaker Type: standard
• Country Of Origin: Mexico
• Device Type: LV equipment - Low voltage circuit breaker
• Electrical Connection: pressure plate
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP2111016
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant
• Field Service Division: PPIBS
• Function Option: Standard
• Function Option Id: STANDARD
• Green Premium Status For Reporting: Green Premium product
• H And D Domain: Safety
• H And D Enrichment Assignment: no
• H And D Enrichment Class 3: Circuit Breakers
• H And D Enrichment Function: MCB
• H And D Subrange: COM
• Halogen Content Performance: Halogen free product
• Halogen Free Status: Halogen free product
• Halogene Performance: Halogen free product
• Legacy Weee Scope: In
• Line Rated Current: 20 A
• Market Segmentation: Commercial
• Market Segmentation Id: COMMERCIAL
• Mercury Free: Yes
• Mounting Mode: bolt-on
• Packaging Made With Recycled Cardboard: No
• Packaging Without Single Use Plastic: Yes
• Product Availability: Stock - Normally stocked in distribution facility
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 2.91 in
• Product Height: 2.99 in
• Product Or Component Type: miniature circuit-breaker
• Range Of Product: QO
• Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: CONTAINS_SVHC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2534
• Rohs Eur Full Compliance Status: Compliant
• Rohs Eur Full Compliance Status Id: COMPLIANT
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Serviceability: No
• Sustainable Packaging: No
• Take Back: No
• Tightening Torque: 4-4 N.m
• Toxic Heavy Metal Free: Yes
• Traceability: No
• Use Carbon Footprint: 17.30424348
• With Recycled Cardboard: No
• Without Single Use Plastic: Yes
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Building Circuit Protection
• Industrial Panel Board Applications
• Electrical Distribution Systems
• Motor Control Centers
• Lighting and Power Circuits
• HVAC Equipment Protection
• Professional Electrical Installations

Why Choose Schneider Electric Quality?

Schneider Electric QOB circuit breakers deliver proven reliability with 15-year average life duration and comprehensive compliance including RoHS and halogen-free construction. The bolt-on mounting and pressure plate connections ensure secure installation and long-term performance in demanding commercial applications.
