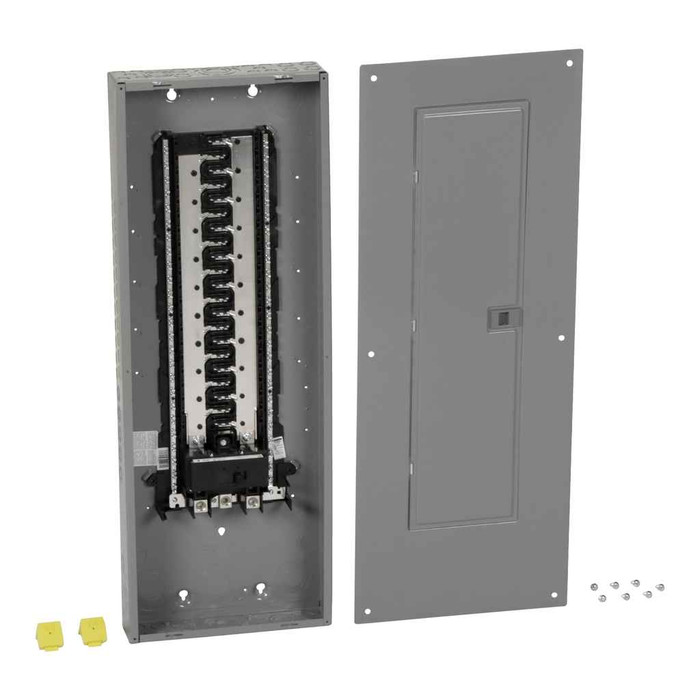

Schneider Electric Square D HOM Series 200A Main Breaker Load Center with 20-120 Circuit Capacity

Schneider Electric Square D HOM Series 200A Main Breaker Load Center with 20-120 Circuit Capacity

Professional residential electrical distribution with reliable main breaker protection

The Schneider Electric Square D HOM Series Load Center delivers dependable electrical distribution for residential applications with 200A line rated current and 225A bus rated current capacity. This convertible mains load center features welded sheet steel enclosure construction and combination flush/surface cover design for versatile installation options. UL listed for safety compliance, this load center accommodates 20-120 circuits with lug electrical connections and supports grounding bar installation for complete electrical distribution solutions.

Professional Features & Benefits

• 200A Line Rated Current: Provides substantial power capacity for modern residential electrical demands and future expansion needs.
• 225A Bus Rated Current: Offers enhanced current handling capability ensuring reliable performance under varying load conditions.
• 22 kA Short Circuit Current Rating: Delivers robust fault protection capability for enhanced electrical system safety and reliability.
• Welded Sheet Steel Enclosure: Ensures durable construction and long-term protection against environmental factors and mechanical stress.

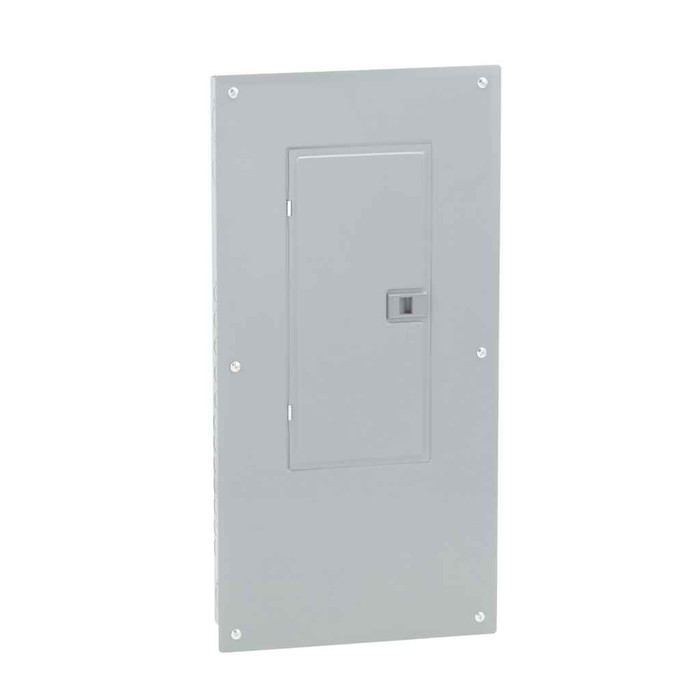

• Combination Flush/Surface Cover: Provides installation flexibility for both recessed and surface mounting applications to meet diverse project requirements.
• UL Listed Certification: Meets rigorous safety standards ensuring code compliance and professional installation confidence.
• 20-120 Circuit Capacity: Accommodates extensive circuit requirements for comprehensive residential electrical distribution and future expansion.

Technical Specifications

• Accessories: HOMCGK2C
• Bus Rated Current: 225.0 A
• China Rohs In Scope: No
• China Rohs Label: 1
• Country Of Origin: United States
• Cover Type: combination flush/surface cover
• Device Composition: grounding bar (ordered separately)
• Electrical Connection: lugs
• Enclosure Material: welded sheet steel
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP2212003EN
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant
• Function Option: Standard
• Function Option Id: STANDARD
• Green Premium Status For Reporting: Green Premium product
• H And D Domain: Safety
• H And D Enrichment Assignment: no
• H And D Enrichment Class 3: Load centers (equipped)
• H And D Enrichment Class 4: Single-phase convertible mains indoor load center
• H And D Enrichment Function: ENCLOSURES
• H And D Subrange: RESI
• Legacy Weee Scope: In
• Line Rated Current: 200 A
• Load Center Type: PoN Convertible Mains (breaker)
• Market Segmentation: Residential
• Market Segmentation Id: RESIDENTIAL
• Mercury Free: Yes
• Packaging Made With Recycled Cardboard: No
• Packaging Without Single Use Plastic: No
• Product Availability: Stock - Normally stocked in distribution facility
• Product Certifications: UL listed file E-6294
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 3.74 in
• Product Or Component Type: Load Center
• Product Width: 14.25 in
• Range Of Product: Homeline
• Reach Compliance Directive: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes
• Reach Free Shvc: Yes
• Reach Full Compliance Status: Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: NOT_CONTAINING_SVHC
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2531
• Rohs Eur Full Compliance Status: Compliant
• Rohs Eur Full Compliance Status Id: COMPLIANT
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Short Circuit Current: 22 kA
• Sustainable Packaging: No
• Take Back: No
• Toxic Heavy Metal Free: Yes
• Use Carbon Footprint: 0.087341
• With Recycled Cardboard: No
• Without Single Use Plastic: No
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Main Electrical Distribution
• Single-Family Home Electrical Panels
• Multi-Unit Residential Properties
• Home Addition and Renovation Projects
• Electrical Service Upgrades
• New Construction Residential Installations

Why Choose Schneider Electric Quality?

Schneider Electric Square D HOM Series load centers deliver proven reliability with UL listed certification and welded sheet steel construction. Mercury-free and RoHS compliant design ensures environmental responsibility while maintaining the durability and performance standards expected from professional electrical distribution equipment.
