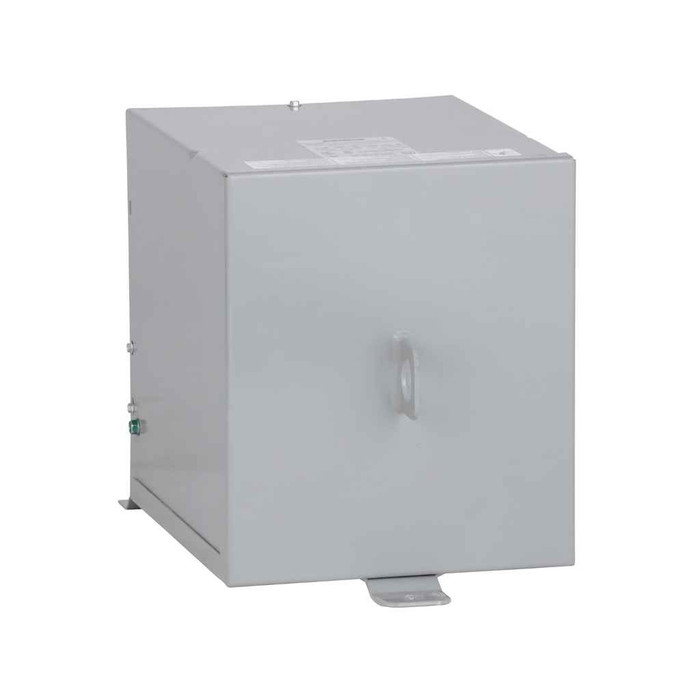

Schneider Electric Dry Type Encapsulated Transformer 1.5kVA 1-Phase 240x480V-120/240V NEMA 3R

Schneider Electric Dry Type Encapsulated Transformer 1.5kVA 1-Phase 240x480V-120/240V NEMA 3R

Professional Power Distribution & Voltage Transformation

Schneider Electric delivers reliable power transformation with this 1.5kVA dry type encapsulated transformer, engineered for single-phase applications requiring 240x480V to 120/240V conversion. Built with painted sheet steel enclosure and NEMA 3R protection, this wall-mounted unit provides dependable voltage transformation for diverse electrical installations with 25-year average life duration and 180°C insulation temperature rating.

Professional Features & Benefits

• 1.5kVA Power Rating: Delivers reliable capacity for medium-duty electrical loads and equipment requiring precise voltage transformation.
• Dual Input Voltage (240x480V): Provides flexible installation options to accommodate various supply voltage configurations in commercial and industrial settings.
• NEMA 3R Enclosure: Weather-resistant protection enables outdoor installation while maintaining safe operation in harsh environmental conditions.
• Painted Sheet Steel Construction: Durable enclosure material ensures long-term structural integrity and corrosion resistance for extended service life.
• Wall-Mounted Design: Space-efficient mounting configuration optimizes installation flexibility while providing secure positioning and easy access for maintenance.
• 180°C Insulation Temperature: High-temperature insulation rating ensures reliable operation under demanding thermal conditions and extended duty cycles.
• 25-Year Average Life Duration: Extended service life reduces replacement costs and provides long-term reliability for critical power distribution applications.

Technical Specifications

• Average Life Duration: 25 year(s)
• China Rohs In Scope: No
• China Rohs Label: 1
• Compliance: TAA
• Country Of Origin: Mexico
• Device Type: Transformer - dry
• Enclosure Material: painted sheet steel
• Enclosure Mounting: wall mounted
• Environmental Disclosure: ENVPEP1407010
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant
• Field Service Division: PSIBS
• Green Premium Status For Reporting: Green Premium product
• Html Descr: TRANSFORMER DRY 1.5KVA 240X480V-120/240V
• Insulation Temperature: 180 °C
• Legacy Weee Scope: In
• Manufacturer: Schneider Electric
• Mercury Free: Yes
• Nema Degree Of Protection: NEMA 3R
• Number Of Tap Offs: 0
• Packaging Made With Recycled Cardboard: Yes
• Packaging Without Single Use Plastic: No
• Phase: 1 phase
• Product Availability: Stock - Normally stocked in distribution facility
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 6.56 in
• Product Or Component Type: Dry Sealed Transformer
• Product Width: 8.68 in
• Reach Compliance Directive: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes
• Reach Free Shvc: Yes
• Reach Full Compliance Status: Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: NOT_CONTAINING_SVHC
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Full Compliance Status: Compliant
• Rohs Eur Full Compliance Status Id: COMPLIANT
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant
• Rohs Exemption Information: Yes
• Scope Perimeter: At least in Europe
• Serviceability: No
• Sustainable Packaging: No
• Take Back: No
• Temperature Rise: 115 °C
• Toxic Heavy Metal Free: Yes
• Traceability: No
• Wd Status: A - SELECTED - PCE ONLY (Migration)
• With Recycled Cardboard: Yes
• Without Single Use Plastic: No
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Building Power Distribution
• Industrial Equipment Voltage Conversion
• HVAC System Power Supply
• Lighting Control Panel Supply
• Machine Tool Power Requirements
• Control Circuit Isolation
• Step-Down Power Applications

Why Choose Schneider Electric Quality?

Schneider Electric transformers deliver proven reliability with TAA compliance, RoHS compliance, and Green Premium product status. The 25-year average life duration, mercury-free construction, and NEMA 3R weather-resistant enclosure ensure dependable long-term performance for critical power distribution applications.
