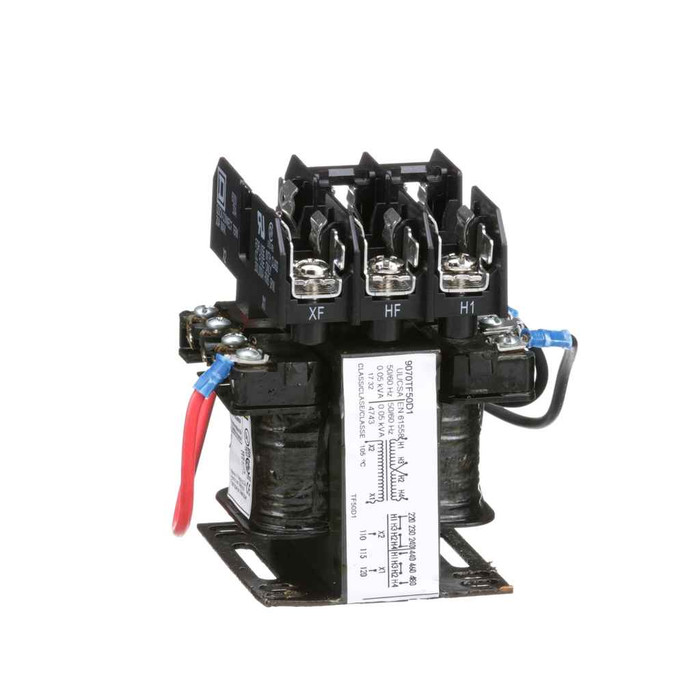

Schneider 9070TF Industrial Control Transformer Series — Type TF Control Power Transformers (50–2000 VA)

Schneider Electric 9070TF Industrial Control Transformer 1 Phase 50-2000 VA Dry Type Power System

(No reviews yet) Write a Review

Model: 9070TF500D1

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,038.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric 9070TF Industrial Control Transformer 1 Phase 50-2000 VA Dry Type Power System

Professional Industrial Control Power Solutions

The Schneider Electric 9070TF Industrial Control Transformer delivers reliable 1 phase control power for industrial applications with 50-2000 VA capacity range. This dry type transformer features screw clamp terminals for secure electrical connections and provides 25-year average life duration for long-term industrial service. Designed for open device installation, this transformer offers professional-grade power conversion for control circuits and industrial automation systems.

Professional Features & Benefits

  • 50-2000 VA Capacity Range: Versatile power ratings accommodate diverse industrial control power requirements from small control panels to larger automation systems.
  • 1 Phase Design: Optimized single-phase configuration provides efficient power conversion for standard industrial control applications and equipment.
  • Dry Type Construction: Safe, maintenance-free operation without oil or liquid coolants, suitable for indoor industrial environments with reduced fire risk.
  • Screw Clamp Terminals: Secure, reliable electrical connections ensure consistent performance and simplified installation in industrial control panels.
  • 25-Year Average Life Duration: Extended service life reduces replacement costs and provides long-term reliability for critical industrial control systems.
  • Mercury-Free Design: Environmentally responsible construction meets modern safety and environmental standards for industrial applications.
  • Green Premium Product Status: Meets enhanced environmental standards with comprehensive environmental disclosure for sustainable industrial operations.

Technical Specifications

  • Average Life Duration: 25 year(s)
  • China Rohs In Scope: No
  • Country Of Origin: Mexico
  • Device Type: Transformer - dry
  • Electrical Connection: screw clamp terminals
  • Environmental Disclosure: ENVPEP1308008EN
  • Eoli Availability Display: No need of specific recycling operations
  • Eu Rohs Directive: Compliant with Exemptions
  • Field Service Division: PPIBS
  • Green Premium Status For Reporting: Green Premium product
  • Legacy Weee Scope: In
  • Manufacturer: Schneider Electric
  • Mercury Free: Yes
  • Nema Degree Of Protection: not rated (open device)
  • Packaging Made With Recycled Cardboard: Yes
  • Packaging Without Single Use Plastic: No
  • Phase: 1 phase
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Or Component Type: Industrial Control Transformer
  • Range Of Product: TF
  • Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: CONTAINS_SVHC
  • Reach Regulation: Reference contains Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 1905
  • Rohs Eur Full Compliance Status: Compliant with Exemptions
  • Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Compliant with Exemptions
  • Rohs Exemption Information: Yes
  • Serviceability: No
  • Sustainable Packaging: No
  • Take Back: No
  • Traceability: No
  • With Recycled Cardboard: Yes
  • Without Single Use Plastic: No
  • Department: Electrical

Professional Applications

  • Industrial Control Panels and Automation Systems
  • Manufacturing Equipment Power Conversion
  • Process Control and Monitoring Systems
  • Motor Control Centers and Drive Applications
  • Building Automation and HVAC Controls
  • Machine Tool and Production Equipment
  • Safety and Emergency Control Systems

Why Choose Schneider Electric Quality?

Schneider Electric 9070TF transformers deliver proven industrial reliability with 25-year average life duration and mercury-free construction. Green Premium product status ensures environmental compliance while screw clamp terminals provide secure, long-lasting connections. Trust Schneider Electric's commitment to quality and performance for your critical industrial control power applications.

Manufacturer Resources

Product Specs

Average Life Duration:
25 year(s)
China Rohs In Scope:
No
Country Of Origin:
Mexico
Device Type:
Transformer - dry
Electrical Connection:
screw clamp terminals
Environmental Disclosure:
ENVPEP1308008EN
Eoli Availability Display:
No need of specific recycling operations
Eu Rohs Directive:
Compliant with Exemptions
Field Service Division:
PPIBS
Green Premium Status For Reporting:
Green Premium product
Legacy Weee Scope:
In
Mercury Free:
Yes
Nema Degree Of Protection:
not rated (open device)
Packaging Made With Recycled Cardboard:
Yes
Packaging Without Single Use Plastic:
No
Phase:
1 phase
Product Availability:
Stock - Normally stocked in distribution facility
Product Contributes To Saved And Avoided Emissions:
No
Product Or Component Type:
Industrial Control Transformer
Range Of Product:
TF
Reach Full Compliance Status:
Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Rohs Eur Conformity Date:
1905
Rohs Exemption Information:
Yes
Serviceability:
No
Sustainable Packaging:
No
Take Back:
No
Traceability:
No
With Recycled Cardboard:
Yes
Without Single Use Plastic:
No
Department:
Electrical
Product Type:
Industrial Control Transformer
Product Group:
Transformers

Schneider 9070TF500D1 – Frequently Asked Questions

1) What VA sizes does the Schneider 9070TF control transformer come in?
Orderable sizes on the 9070TF are 150, 200, 250, 500 and 750 VA, with part numbers 9070TF150D1, 9070TF200D1, 9070TF250D1, 9070TF500D1 and 9070TF750D1. The TF range as a whole spans 50 to 2000 VA, so size the unit to the sealed VA of the contactor coils, relays and pilot devices on the circuit plus their inrush.
2) Can a 9070TF transformer be mounted outside an enclosure or in a wet area?
No. The 9070TF is an open device with no NEMA degree of protection, so it has to live inside a control panel or other enclosure that provides the environmental and contact protection. It is a dry type unit intended for indoor industrial use, not for open-air or washdown mounting.
3) Is the 9070TF single phase or three phase?
Single phase. The 9070TF is a 1 phase industrial control transformer built to derive control voltage from one line-to-line or line-to-neutral source in a panel. If you need three phase power conversion for a load rather than a control circuit, this is the wrong family.
4) What kind of terminations does the 9070TF use, and do I need lugs?
Connections are screw clamp terminals, so stripped control wire lands directly under the clamp without crimped lugs or ring terminals. That is the standard arrangement for panel-building with 14 to 18 AWG control wire.
5) Is the Schneider 9070TF a dry type transformer, and does it need any maintenance?
It is a dry type transformer, so there is no oil or liquid coolant to check, sample or contain. Schneider lists the 9070TF as non-serviceable, meaning there are no field-replaceable internals; if a unit fails it gets swapped rather than rebuilt. Average life duration is given as 25 years.
6) Do these transformers meet RoHS and REACH for a facility that tracks material compliance?
The 9070TF carries Green Premium status with environmental disclosure ENVPEP1308008EN, and is EU RoHS compliant with exemptions. It is mercury free. Note for REACH reporting: the reference contains Substances of Very High Concern above the threshold, so it needs to be declared if your facility tracks SVHC content.
7) Is the 9070TF the right transformer for a machine control panel, or do I need a general purpose transformer?
Use the TF range where you are powering a control circuit: contactor and relay coils, pilot lights, PLC supplies, safety circuits. Control transformers are built for the momentary inrush a contactor coil draws at pickup. A general purpose or distribution transformer is what you want if you are feeding receptacles, lighting or a continuous load rather than control devices.
8) Where are Schneider 9070TF control transformers made?
Country of origin is Mexico. That matters if you are filing domestic-preference or trade-compliance paperwork on a government or institutional project.
