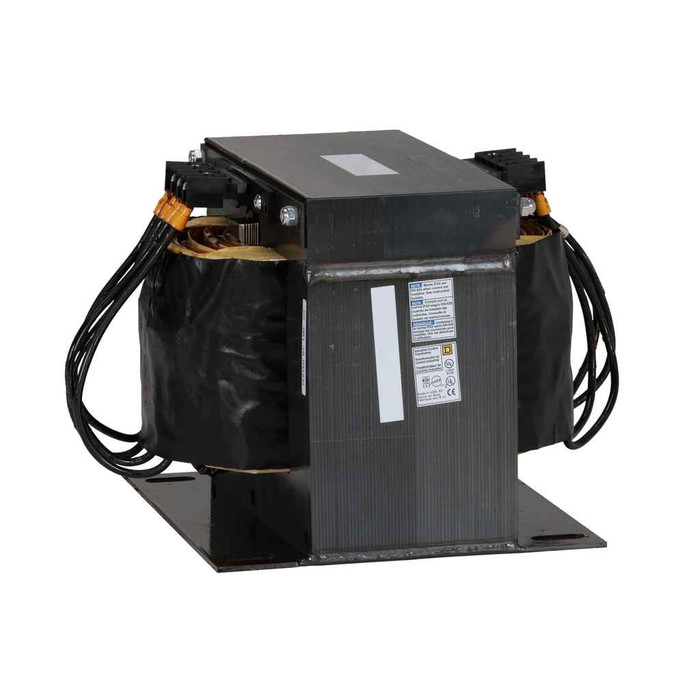

Schneider 9070T Type T Industrial Control Transformers — D15 Series, 50–5000 VA, Multi-Voltage Primary to 120V

Schneider 9070T Type T Industrial Control Transformer D15 Series 1 Phase 50-5000 VA Multi-Voltage Primary to 120V

(No reviews yet) Write a Review

Model: 9070T50D15

In Stock (leaves warehouse same day if ordered before 3pm ET)

$277.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider 9070T Type T Industrial Control Transformer D15 Series

Professional dry-type transformer for reliable industrial control applications

The Schneider 9070T Type T Industrial Control Transformer D15 Series delivers dependable 1 phase power conversion from multi-voltage primary to 120V secondary. This dry-type transformer features screw clamp terminals for secure electrical connections and 105°C insulation temperature rating for reliable operation in demanding industrial environments. With a compact 3 x 3.09 x 2.58 inch footprint and 50-5000 VA capacity range, this transformer provides versatile power solutions for control circuits and industrial applications.

Professional Features & Benefits

  • 1 Phase Design: Provides reliable single-phase power conversion for control circuit applications with consistent performance.
  • Multi-Voltage Primary to 120V: Offers flexible input voltage compatibility while delivering standard 120V output for control devices.
  • 50-5000 VA Capacity Range: Accommodates diverse load requirements from small control circuits to larger industrial applications.
  • 105°C Insulation Temperature: Ensures reliable operation in elevated temperature environments with enhanced thermal performance.
  • Screw Clamp Terminals: Provides secure, maintenance-friendly electrical connections for professional installations.
  • Dry-Type Construction: Eliminates oil-filled components for safer operation and reduced environmental concerns.
  • Compact 3 x 3.09 x 2.58 Inch Design: Maximizes installation flexibility in space-constrained control panels and enclosures.

Technical Specifications

  • China Rohs In Scope: No
  • Country Of Origin: Mexico
  • Device Type: Transformer - dry
  • Electrical Connection: screw clamp terminals
  • Environmental Disclosure: ENVPEP1308008EN
  • Eoli Availability Display: No need of specific recycling operations
  • Eu Rohs Directive: Compliant with Exemptions
  • Green Premium Status For Reporting: Green Premium product
  • Insulation Temperature: 105 °C
  • Legacy Weee Scope: In
  • Mercury Free: Yes
  • Nema Degree Of Protection: not rated (open device)
  • Package Weight Lbs: 1.125 kg
  • Packaging Made With Recycled Cardboard: Yes
  • Packaging Without Single Use Plastic: No
  • Phase: 1 phase
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Compatibility: FSC1
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 3.09 in
  • Product Height: 2.58 in
  • Product Or Component Type: Industrial Control Transformer
  • Product Width: 3 in
  • Range Of Product: T
  • Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: CONTAINS_SVHC
  • Reach Regulation: Reference contains Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 1905
  • Rohs Eur Full Compliance Status: Compliant with Exemptions
  • Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Compliant with Exemptions
  • Rohs Exemption Information: Yes
  • Scope Perimeter: Outside of Europe
  • Serviceability: No
  • Sustainable Packaging: No
  • Take Back: No
  • Temperature Rise: 55 °C
  • Traceability: No
  • Wd Status: 1 - GSC certified
  • With Recycled Cardboard: Yes
  • Without Single Use Plastic: No
  • Department: Electrical

Professional Applications

  • Industrial Control Panels and Motor Control Centers
  • Manufacturing Equipment Power Supplies
  • Process Control and Automation Systems
  • Machine Tool Control Circuits
  • HVAC Control Systems
  • Lighting Control Applications
  • Safety and Emergency Systems

Why Choose Schneider Quality?

Schneider delivers proven reliability with Green Premium product status and comprehensive compliance certifications including RoHS and environmental standards. The mercury-free construction and 55°C temperature rise rating ensure safe, dependable operation in professional industrial environments where consistent power conversion is critical for control system performance.

Manufacturer Resources

Product Specs

China Rohs In Scope:
No
Country Of Origin:
Mexico
Device Type:
Transformer - dry
Electrical Connection:
screw clamp terminals
Environmental Disclosure:
ENVPEP1308008EN
Eoli Availability Display:
No need of specific recycling operations
Eu Rohs Directive:
Compliant with Exemptions
Green Premium Status For Reporting:
Green Premium product
Insulation Temperature:
105 °C
Legacy Weee Scope:
In
Mercury Free:
Yes
Nema Degree Of Protection:
not rated (open device)
Package Weight Lbs:
1.125 kg
Packaging Made With Recycled Cardboard:
Yes
Packaging Without Single Use Plastic:
No
Phase:
1 phase
Product Availability:
Stock - Normally stocked in distribution facility
Product Compatibility:
FSC1
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
3.09 in
Product Height:
2.58 in
Product Or Component Type:
Industrial Control Transformer
Product Width:
3 in
Range Of Product:
T
Reach Full Compliance Status:
Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Rohs Eur Conformity Date:
1905
Rohs Exemption Information:
Yes
Serviceability:
No
Sustainable Packaging:
No
Take Back:
No
Temperature Rise:
55 °C
Traceability:
No
Wd Status:
1 - GSC certified
With Recycled Cardboard:
Yes
Without Single Use Plastic:
No
Department:
Electrical
Product Type:
Industrial Control Transformer
Product Group:
Transformers

Schneider 9070T50D15 – Frequently Asked Questions

1) Does the Schneider 9070T D15 control transformer need to go inside an enclosure?
Yes. The 9070T D15 is an open device with no NEMA degree of protection, so it has to be mounted inside a control panel, enclosure, or other protected housing. It is not suitable for exposed or wet-location mounting on its own.
2) Will a Schneider 9070T50D15 transformer fit in a small control panel?
It is a compact unit at 3 in wide, 3.09 in deep and 2.58 in high, so it drops into tight panel space. Leave room around it for heat dissipation and for landing wire on the screw clamp terminals, and remember the 2.58 in height does not include the wire bend above the terminals.
3) What VA size is the 9070T D15 transformer, and what does the D15 code mean?
The unit sold here is the 50 VA size, part number 9070T50D15. In the Schneider 9070T Type T numbering, the number between 9070T and the voltage-code suffix is the VA rating, so a 100 VA unit of the same voltage combination would read 9070T100D15. The D15 suffix identifies the primary/secondary voltage combination, in this case a multi-voltage primary with a 120V secondary.
4) Can this Schneider transformer run a 120V control circuit off a 240V or 480V panel?
That is what it is built for. The 9070T Type T is a single-phase dry-type industrial control transformer with a multi-voltage primary and a 120V secondary, used to derive a 120V control circuit from a higher-voltage supply for starters, relays, pilot devices and PLC power. Wire the primary to match the supply voltage using the taps shown on the unit's nameplate.
5) Is a 50 VA control transformer big enough for my motor starter coil?
A 50 VA unit covers small control loads, but sizing has to be done on inrush, not just sealed VA. Add up the sealed VA of every coil, pilot light and relay that can be energized at once, then check that the transformer can still hold voltage during the inrush of the largest coil picking up. If the combined inrush pushes past 50 VA, step up to a larger VA size in the same 9070T D15 voltage combination rather than accepting coil chatter or dropout.
6) What wire terminations does the 9070T D15 use, and does it need lugs?
Connections are screw clamp terminals on both primary and secondary, so stripped conductors or ferruled ends land directly under the clamp. No crimp lugs or separate terminal blocks are required to make up the transformer itself.
7) How hot does this control transformer run, and can it sit in a warm enclosure?
The 9070T D15 uses 105 degree C insulation with a 55 degree C temperature rise at full load. That 50 degree C margin between rise and insulation class is what sets the usable ambient inside the panel, so in a hot enclosure keep the transformer away from drives, resistors and other heat sources and allow convection around it.
8) Is the Schneider 9070T an oil-filled transformer, and does it need maintenance?
It is dry-type, with no oil or liquid to contain, sample or clean up, and it is mercury free. It is also non-serviceable, meaning there are no field-replaceable parts inside; a failed unit gets swapped, not rebuilt. That suits it to sealed control panels where a liquid-filled unit would be a containment problem.
9) Does the Schneider 9070T control transformer meet RoHS and REACH for our sustainability reporting?
It is a Schneider Green Premium product, EU RoHS compliant with exemptions, and carries environmental disclosure document ENVPEP1308008EN. For REACH, the reference does contain Substances of Very High Concern above the threshold, which is the point most procurement teams need for their declaration file. Packaging uses recycled cardboard but is not single-use-plastic free.
10) Where is the Schneider 9070T50D15 transformer made?
Country of origin is Mexico. That is the figure to use for domestic-preference and trade-compliance paperwork on the 9070T50D15.
