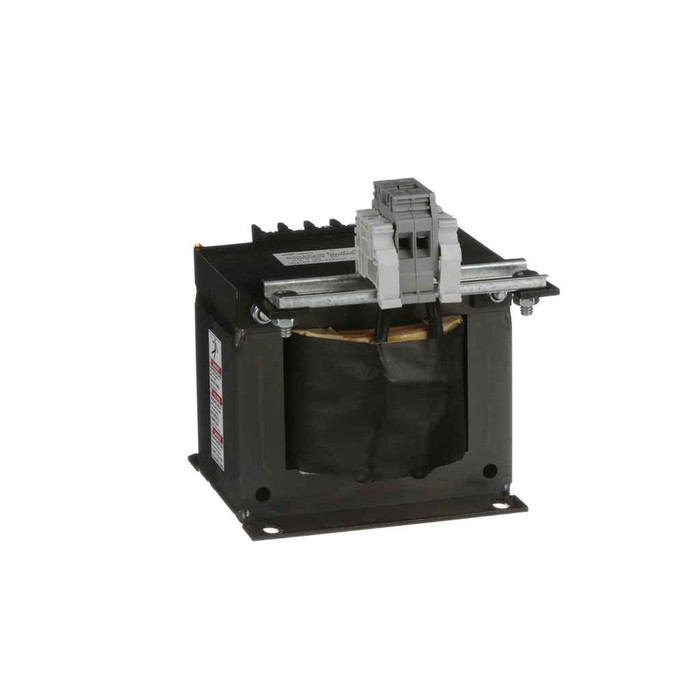

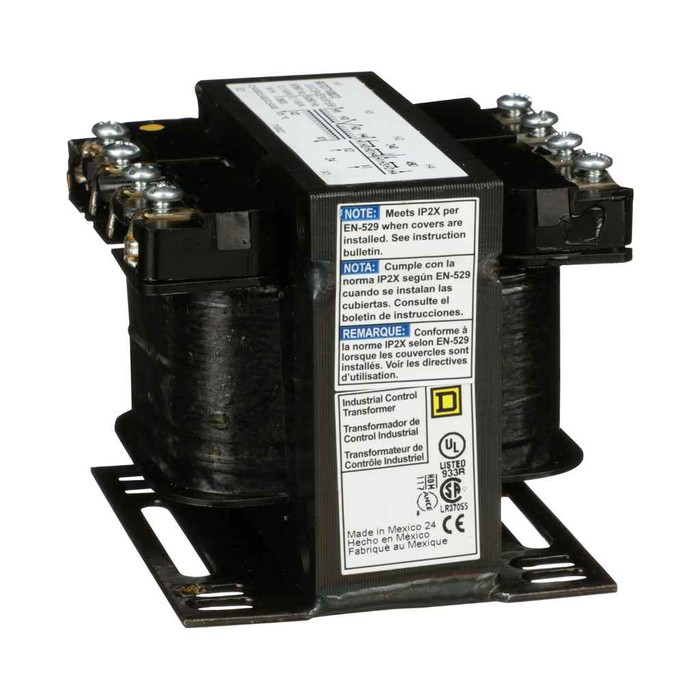

Schneider 9070T D2 Industrial Control Transformers

Schneider Electric 9070T Industrial Control Transformer 50VA 240/480V Primary 24V Secondary Single Phase

(No reviews yet) Write a Review

Model: 9070T50D2

In Stock (leaves warehouse same day if ordered before 3pm ET)

$307.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric 9070T Industrial Control Transformer 50VA 240/480V Primary 24V Secondary Single Phase

Professional dry-type control transformer for reliable voltage conversion

The Schneider Electric 9070T Industrial Control Transformer delivers dependable 50VA power conversion from 240/480V primary to 24V secondary in single phase applications. This dry-type transformer features screw clamp terminals for secure electrical connections and operates with 105°C insulation temperature rating for reliable performance in industrial control applications.

Professional Features & Benefits

  • 50VA Power Rating: Provides adequate capacity for control circuit applications requiring reliable voltage conversion
  • Dual Primary Voltage (240/480V): Offers installation flexibility to accommodate different supply voltage requirements
  • 24V Secondary Output: Delivers standard control voltage for industrial automation and control systems
  • Dry-Type Design: Eliminates oil-filled maintenance requirements while providing safe, reliable operation
  • 105°C Insulation Temperature: Ensures reliable operation in demanding industrial environments with proper thermal management
  • Screw Clamp Terminals: Provides secure, maintainable electrical connections for professional installations
  • Single Phase Configuration: Optimized for single phase control applications with compact 3" x 3.09" x 2.58" footprint

Technical Specifications

  • China Rohs In Scope: No
  • Country Of Origin: Mexico
  • Device Type: Transformer - dry
  • Electrical Connection: screw clamp terminals
  • Environmental Disclosure: ENVPEP1308008EN
  • Eoli Availability Display: No need of specific recycling operations
  • Eu Rohs Directive: Compliant with Exemptions
  • Green Premium Status For Reporting: Green Premium product
  • Html Descr: TRANSFORMER CONTROL 50VA 240/480V-24V
  • Insulation Temperature: 105 °C
  • Legacy Weee Scope: In
  • Manufacturer: Schneider Electric
  • Mercury Free: Yes
  • Nema Degree Of Protection: not rated (open device)
  • Package Weight Lbs: 1.161 kg
  • Packaging Made With Recycled Cardboard: Yes
  • Packaging Without Single Use Plastic: No
  • Phase: 1 phase
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Compatibility: FSC1
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 3.09 in
  • Product Height: 2.58 in
  • Product Or Component Type: Industrial Control Transformer
  • Product Width: 3 in
  • Range Of Product: T
  • Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: CONTAINS_SVHC
  • Reach Regulation: Reference contains Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 1905
  • Rohs Eur Full Compliance Status: Compliant with Exemptions
  • Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Compliant with Exemptions
  • Rohs Exemption Information: Yes
  • Scope Perimeter: Outside of Europe
  • Serviceability: No
  • Sustainable Packaging: No
  • Take Back: No
  • Temperature Rise: 55 °C
  • Traceability: No
  • Wd Status: 5 - INITIALIZED WITH DataSCAN OK (Migration)
  • With Recycled Cardboard: Yes
  • Without Single Use Plastic: No
  • Department: Electrical

Professional Applications

  • Industrial Control Panels
  • Manufacturing Equipment Control Circuits
  • Process Control Systems
  • Automation and PLC Applications
  • Machine Tool Control
  • HVAC Control Systems
  • Motor Control Centers

Why Choose Schneider Electric Quality?

Schneider Electric industrial control transformers provide reliable voltage conversion with proven dry-type design and professional-grade construction. The 105°C insulation temperature rating and screw clamp terminal connections ensure dependable operation in demanding industrial environments with proper installation and maintenance practices.

Manufacturer Resources

Product Specs

China Rohs In Scope:
No
Country Of Origin:
Mexico
Device Type:
Transformer - dry
Electrical Connection:
screw clamp terminals
Environmental Disclosure:
ENVPEP1308008EN
Eoli Availability Display:
No need of specific recycling operations
Eu Rohs Directive:
Compliant with Exemptions
Green Premium Status For Reporting:
Green Premium product
Html Descr:
TRANSFORMER CONTROL 50VA 240/480V-24V
Insulation Temperature:
105 °C
Legacy Weee Scope:
In
Mercury Free:
Yes
Nema Degree Of Protection:
not rated (open device)
Package Weight Lbs:
1.161 kg
Packaging Made With Recycled Cardboard:
Yes
Packaging Without Single Use Plastic:
No
Phase:
1 phase
Product Availability:
Stock - Normally stocked in distribution facility
Product Compatibility:
FSC1
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
3.09 in
Product Height:
2.58 in
Product Or Component Type:
Industrial Control Transformer
Product Width:
3 in
Range Of Product:
T
Reach Full Compliance Status:
Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Rohs Eur Conformity Date:
1905
Rohs Exemption Information:
Yes
Serviceability:
No
Sustainable Packaging:
No
Take Back:
No
Temperature Rise:
55 °C
Traceability:
No
Wd Status:
5 - INITIALIZED WITH DataSCAN OK (Migration)
With Recycled Cardboard:
Yes
Without Single Use Plastic:
No
Department:
Electrical
Product Type:
Industrial Control Transformer
Product Group:
Transformers

Schneider 9070T50D2 – Frequently Asked Questions

1) Can the Schneider 9070T50D2 control transformer be wired for 240V or 480V supply?
Both. The 9070T50D2 has a dual-voltage primary rated 240/480V, so the same unit drops into a panel fed at either supply by connecting the primary leads for the voltage you have. Secondary output is 24V, single phase.
2) Is 50VA enough for my control circuit?
50VA at 24V works out to roughly 2 amps of continuous secondary current, which covers a small relay, a couple of pilot lights, or a single contactor coil. Add up the sealed VA of everything on the 24V circuit plus the inrush VA of the largest coil picking up; if that total exceeds 50VA you want a larger unit in the 9070T range rather than this one.
3) Does this Schneider control transformer come in an enclosure, or does it need to go inside a panel?
It is an open device with no NEMA protection rating, so it has to be mounted inside an enclosure or control panel. There is no cover or gasketing to keep out dust, moisture, or contact. If the location is exposed, you need a separately enclosed transformer instead.
4) How much panel space does the Schneider 9070T 50VA transformer take up?
Footprint is 3 in wide by 3.09 in deep, with a height of 2.58 in. That is small enough for a subpanel or a machine-mounted control box, but leave clearance around it for heat: the winding runs a 55 C temperature rise over ambient.
5) What ambient temperature can a 9070T 50VA control transformer handle inside a hot panel?
The insulation system is rated 105 C and the unit rises 55 C over ambient at full load, leaving roughly 50 C of ambient headroom before the insulation class is used up. In a tightly packed panel that sits near a heat source, either derate the load or improve ventilation.
6) What kind of terminals does this transformer use, and do I need any special lugs?
Connections are screw clamp terminals on both primary and secondary, so stripped conductors or ferrules land directly under the clamp. No crimp lugs or spade terminals are required.
7) What is the exact part number and origin for the Schneider 50VA 240/480 to 24V control transformer?
Order it as Schneider Electric 9070T50D2, from the 9070T (T range) industrial control transformer family. Country of origin is Mexico. Shipping weight of the packaged unit is 1.161 kg.
8) Do I need to know anything about RoHS or REACH before specifying this transformer on a government or institutional job?
Schneider lists the 9070T50D2 as a Green Premium product, EU RoHS compliant with exemptions, and mercury free. On REACH it is declared as containing Substances of Very High Concern above the threshold, which matters if your specification requires SVHC-free components. The environmental profile document reference is ENVPEP1308008EN.
9) Can I use this 24V control transformer for an HVAC thermostat or low-voltage controls?
Yes, 24V single phase output at 50VA suits HVAC control circuits, PLC and automation power, machine tool controls, and motor control center control wiring. The constraint is the supply side: the primary must be 240V or 480V, so it is not a fit for a 120V-fed furnace or air handler.
10) Is this a dry-type transformer or does it have oil?
Dry type. There is no oil to check, top off, or contain, which is why it is acceptable inside a sealed control enclosure. The unit is also not field serviceable, so a failed transformer gets replaced rather than rewound.
