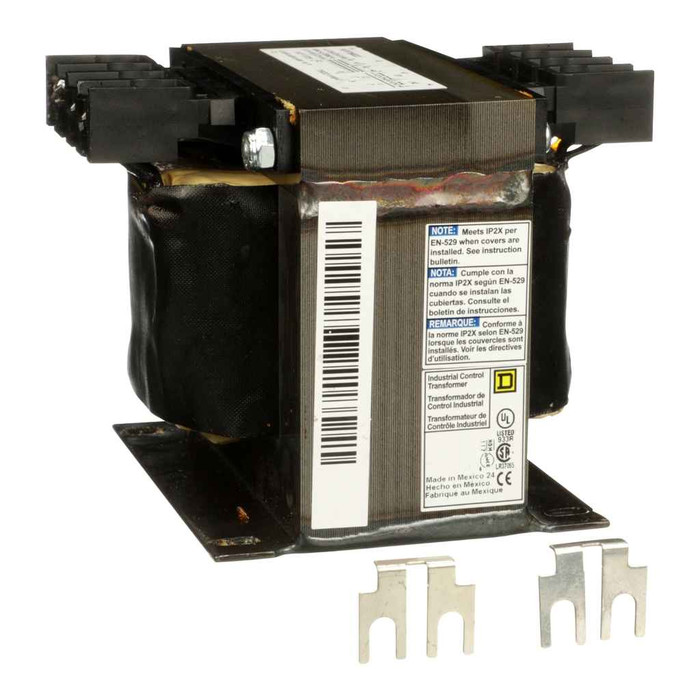

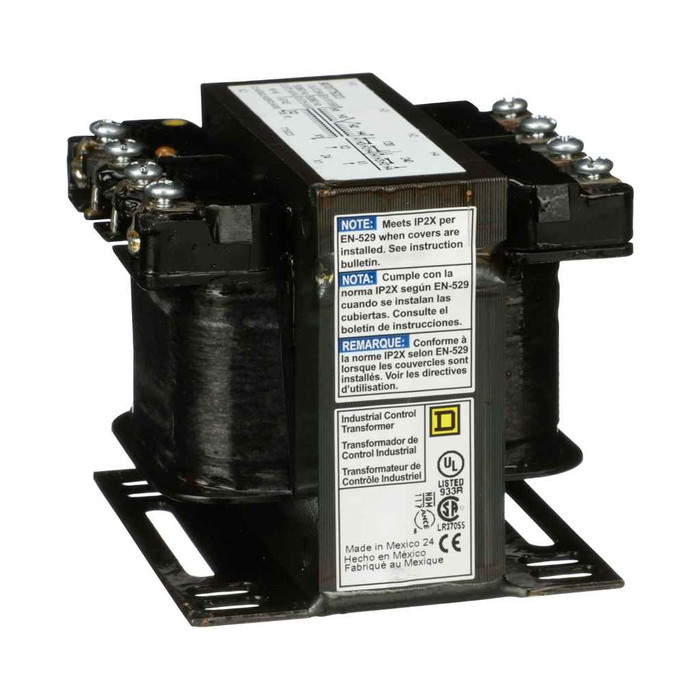

Schneider 9070T Type T Industrial Control Transformer 100VA 1-Phase 120x240V Primary 24V Secondary

Schneider 9070T Type T Industrial Control Transformer

Professional dry-type transformer for reliable industrial control applications

The Schneider 9070T Type T Industrial Control Transformer delivers dependable power conversion for industrial control systems. This 100VA single-phase dry-type transformer features 120x240V primary voltage with 24V secondary output, designed for reliable operation with 55°C temperature rise and 105°C insulation rating. Built with screw clamp terminals for secure electrical connections and engineered for professional industrial applications.

Professional Features & Benefits

• 100VA Power Rating: Provides adequate capacity for control circuits and instrumentation applications requiring reliable power conversion.
• Dual Primary Voltage (120x240V): Offers installation flexibility to accommodate different supply voltage configurations in industrial facilities.
• 24V Secondary Output: Delivers standard control voltage for industrial automation, safety systems, and control panel applications.
• 55°C Temperature Rise: Ensures safe operation within thermal limits while maintaining consistent performance under normal load conditions.
• 105°C Insulation Rating: Provides thermal protection and extended service life in demanding industrial environments.
• Screw Clamp Terminals: Enable secure, reliable electrical connections that resist vibration and maintain contact integrity over time.
• Dry-Type Construction: Eliminates oil-filled components for safer installation and reduced environmental concerns in industrial settings.

Technical Specifications

• China Rohs In Scope: No
• Country Of Origin: Mexico
• Device Type: Transformer - dry
• Electrical Connection: screw clamp terminals
• Environmental Disclosure: ENVPEP1308008EN
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant with Exemptions
• Green Premium Status For Reporting: Green Premium product
• Html Descr: Transformer, Type T, industrial control, 100VA, 1 phase, 120x240V primary, 24V secondary, 55C rise
• Insulation Temperature: 105 °C
• Legacy Weee Scope: In
• Manufacturer: Square D
• Mercury Free: Yes
• Nema Degree Of Protection: not rated (open device)
• Packaging Made With Recycled Cardboard: Yes
• Packaging Without Single Use Plastic: No
• Phase: 1 phase
• Product Availability: Stock - Normally stocked in distribution facility
• Product Compatibility: FSC1
• Product Contributes To Saved And Avoided Emissions: No
• Product Or Component Type: Industrial Control Transformer
• Range Of Product: T
• Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: CONTAINS_SVHC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 1905
• Rohs Eur Full Compliance Status: Compliant with Exemptions
• Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant with Exemptions
• Rohs Exemption Information: Yes
• Scope Perimeter: At least in Europe
• Serviceability: No
• Sustainable Packaging: No
• Take Back: No
• Temperature Rise: 55 °C
• Traceability: No
• Wd Status: 5 - INITIALIZED WITH DataSCAN OK (Migration)
• With Recycled Cardboard: Yes
• Without Single Use Plastic: No
