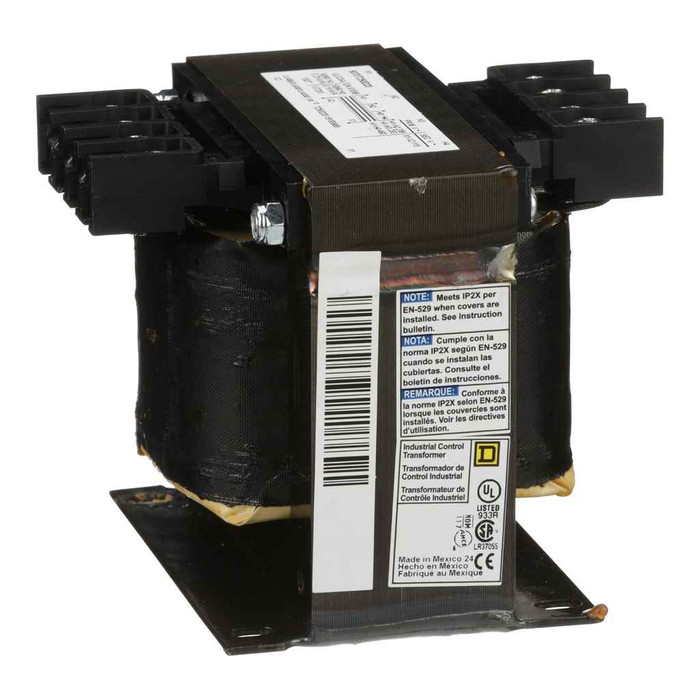

Schneider 9070T Type T Industrial Control Transformers — 50–250 VA, 480/240V to 120V

Schneider Electric 9070T Industrial Control Transformer 150VA 208/230/460V to 115V Single Phase

(No reviews yet) Write a Review

Model: 9070T150D20

In Stock (leaves warehouse same day if ordered before 3pm ET)

$544.03
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric 9070T Industrial Control Transformer

Professional dry-type control transformer for industrial applications

The Schneider Electric 9070T Industrial Control Transformer delivers reliable voltage conversion with 150VA capacity and single-phase operation. This dry-type transformer features screw clamp terminals for secure electrical connections and operates with 105°C insulation temperature rating. Designed for industrial control applications, it provides dependable power transformation from 208/230/460V primary to 115V secondary voltage.

Professional Features & Benefits

  • 150VA Power Rating: Provides adequate capacity for control circuits and industrial automation equipment
  • Multiple Primary Voltages: Accepts 208V, 230V, or 460V input for flexible installation compatibility
  • 115V Secondary Output: Standard control voltage for industrial control panels and equipment
  • Dry-Type Construction: Eliminates oil-filled maintenance requirements and environmental concerns
  • 105°C Insulation Rating: Ensures reliable operation in demanding industrial temperature conditions
  • Screw Clamp Terminals: Secure wire connections for reliable electrical contact and easy installation
  • Single Phase Design: Simplified wiring and installation for control circuit applications

Technical Specifications

  • China Rohs In Scope: No
  • Country Of Origin: Mexico
  • Device Type: Transformer - dry
  • Electrical Connection: screw clamp terminals
  • Environmental Disclosure: ENVPEP1308008EN
  • Eoli Availability Display: No need of specific recycling operations
  • Eu Rohs Directive: Compliant with Exemptions
  • Green Premium Status For Reporting: Green Premium product
  • Html Descr: Transformer Control 150VA 208/230/460V-115V
  • Insulation Temperature: 105 °C
  • Legacy Weee Scope: In
  • Manufacturer: Schneider Electric
  • Mercury Free: Yes
  • Nema Degree Of Protection: not rated (open device)
  • Package Weight Lbs: 2.563 kg
  • Packaging Made With Recycled Cardboard: Yes
  • Packaging Without Single Use Plastic: No
  • Phase: 1 phase
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Compatibility: FSC1
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 3.59 in
  • Product Height: 3.2 in
  • Product Or Component Type: Industrial Control Transformer
  • Product Width: 3.75 in
  • Range Of Product: T
  • Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: CONTAINS_SVHC
  • Reach Regulation: Reference contains Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 1905
  • Rohs Eur Full Compliance Status: Compliant with Exemptions
  • Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Compliant with Exemptions
  • Rohs Exemption Information: Yes
  • Scope Perimeter: Outside of Europe
  • Serviceability: No
  • Sustainable Packaging: No
  • Take Back: No
  • Temperature Rise: 55 °C
  • Traceability: No
  • Wd Status: A - SELECTED - PCE ONLY (Migration)
  • With Recycled Cardboard: Yes
  • Without Single Use Plastic: No
  • Department: Electrical

Professional Applications

  • Industrial Control Panels
  • Manufacturing Equipment Control Circuits
  • Process Control Systems
  • Motor Control Centers
  • Automation Equipment Power Supply
  • Machine Tool Control Circuits
  • HVAC Control Systems

Why Choose Schneider Electric Quality?

Schneider Electric industrial control transformers provide dependable voltage conversion with proven dry-type construction and 105°C insulation temperature rating. The mercury-free design and RoHS compliance demonstrate commitment to environmental responsibility, while the compact 3.75" x 3.59" x 3.2" dimensions enable flexible installation in control panels and equipment enclosures.

Manufacturer Resources

Product Specs

China Rohs In Scope:
No
Country Of Origin:
Mexico
Device Type:
Transformer - dry
Electrical Connection:
screw clamp terminals
Environmental Disclosure:
ENVPEP1308008EN
Eoli Availability Display:
No need of specific recycling operations
Eu Rohs Directive:
Compliant with Exemptions
Green Premium Status For Reporting:
Green Premium product
Html Descr:
Transformer Control 150VA 208/230/460V-115V
Insulation Temperature:
105 °C
Legacy Weee Scope:
In
Mercury Free:
Yes
Nema Degree Of Protection:
not rated (open device)
Package Weight Lbs:
2.563 kg
Packaging Made With Recycled Cardboard:
Yes
Packaging Without Single Use Plastic:
No
Phase:
1 phase
Product Availability:
Stock - Normally stocked in distribution facility
Product Compatibility:
FSC1
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
3.59 in
Product Height:
3.2 in
Product Or Component Type:
Industrial Control Transformer
Product Width:
3.75 in
Range Of Product:
T
Reach Full Compliance Status:
Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Rohs Eur Conformity Date:
1905
Rohs Exemption Information:
Yes
Serviceability:
No
Sustainable Packaging:
No
Take Back:
No
Temperature Rise:
55 °C
Traceability:
No
Wd Status:
A - SELECTED - PCE ONLY (Migration)
With Recycled Cardboard:
Yes
Without Single Use Plastic:
No
Department:
Electrical
Product Type:
Industrial Control Transformer
Product Group:
Transformers

Schneider 9070T150D20 – Frequently Asked Questions

1) Will the Schneider 9070T 150VA transformer work on a 208V supply, or do I need a different unit for 480V?
The 9070T150D20 has a multi-tap primary that accepts 208V, 230V or 460V and steps it down to 115V single phase. You pick the tap that matches the supply at the panel. A true 480V feed is not one of the listed primary taps on this unit, so for 480V you would need the version wound for it.
2) Is 150VA enough for a control circuit running a few motor starter coils?
150VA is the continuous rating, and that is the number to size against, not the inrush. Contactor and starter coils draw several times their sealed VA at pickup, so total the sealed VA of everything on the 115V circuit plus the inrush of the largest coil picking up. If the sum is close to 150VA, step up to a larger VA in the same 9070T family rather than running this one at its limit.
3) Can I mount this Schneider control transformer on the outside of an enclosure?
No. The 9070T is an open device with no NEMA protection rating, so it has to live inside a panel or enclosure. Exposed windings and terminals mean it is not suitable for a wet, dusty, or accessible location on its own.
4) How much panel space do I need for the 9070T 150VA transformer?
Allow for a footprint of 3.75 in wide by 3.59 in deep and 3.2 in high, plus clearance around it for air circulation and for landing wires on the terminals. It is a compact block that fits most control panel subplates, but a hot transformer in a sealed enclosure still needs breathing room.
5) What kind of terminations does this control transformer use, and do I need lugs or spade connectors?
Wiring lands on screw clamp terminals, so stripped conductors or ferrules go straight under the clamp and tighten down. No crimped spades or separate lugs are needed for the primary and secondary connections.
6) How hot does the 9070T run inside a control panel?
Temperature rise is 55 degrees C above ambient at full load, and the insulation system is rated 105 degrees C. That gives 50 degrees C of headroom for ambient, so a panel interior that regularly sits above about 50 degrees C is where you should be adding ventilation or derating the load.
7) Is this a dry transformer or an oil-filled one?
Dry type. The 9070T has no oil to check, contain, or dispose of, which is why it is the standard choice for control panels and machine builds where an oil-filled unit would be a containment problem.
8) Can the 9070T control transformer be repaired if it fails?
No, it is not a serviceable unit. There are no field-replaceable windings or internal parts, so a failed transformer gets replaced rather than rebuilt. Worth keeping a spare on the shelf if it is powering a production line control circuit.
9) Does this Schneider transformer meet RoHS, and does it contain any substances I have to report?
It is RoHS compliant with exemptions and is mercury free, and Schneider classes it as a Green Premium product with environmental profile ENVPEP1308008EN. Note that the REACH status flags Substances of Very High Concern above the threshold, which matters if your facility has a reporting obligation on incoming materials.
10) What is the exact part number and where is the Schneider 9070T 150VA transformer made?
The catalog number is 9070T150D20, from Schneider Electric's Type T industrial control transformer range, built in Mexico. Shipping weight is 2.563 kg.
