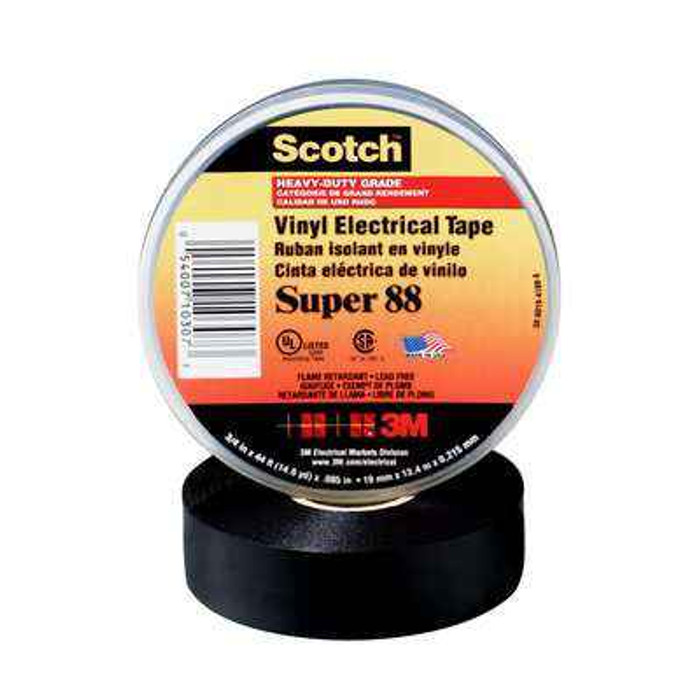

3M Scotch Super 88 Premium Vinyl Electrical Tape 3/4" x 66ft 8.5 mil Professional Grade

3M Scotch Super 88 Premium Vinyl Electrical Tape 3/4" x 66ft 8.5 mil Professional Grade

Premium-grade all-weather electrical insulation for professional applications

The 3M Scotch Super 88 Premium Vinyl Electrical Tape delivers professional-grade electrical insulation and mechanical protection for splices up to 600V. This 8.5-mil thick vinyl tape features an aggressive rubber-resin adhesive and elastic PVC backing, providing reliable performance in demanding electrical applications. UL Listed and CSA Certified, this flame-retardant tape operates effectively from 0�F to 221�F (-18�C to 105�C), making it suitable for both indoor and outdoor installations.

Professional Features & Benefits

• Premium 8.5-mil thickness: Provides superior electrical insulation and mechanical protection for critical connections
• 600V voltage rating: Safely handles low and high-voltage applications with reliable dielectric strength of 1150 V/mil
• Extended temperature range 0�F to 221�F: Exceeds commercial-grade specifications for year-round outdoor performance
• UL Listed and CSA Certified: Meets rigorous safety standards for professional electrical installations
• Aggressive rubber-resin adhesive: Ensures secure bonding with 2.7 N/cm adhesion to steel for long-lasting connections
• UV and weather resistant: Withstands moisture, alkalis, acids, corrosion and varying weather conditions
• Flame retardant PVC backing: Self-extinguishing properties enhance safety in electrical applications

Technical Specifications

• 3m Id: 80610833867
• Adhesion To Steel: 2,7 N/cm
• Adhesive Material: Rubber Resin
• Adhesive Type: Rubber
• Agency Approvals: CSA Certified, UL Listed
• Backing Material: Vinyl
• Backing Thickness Metric : 22 mm
• Breaking Strength: 20 lb/in
• Case Quantity: 100 Rolls
• Chemical Resistant: RoHS 2011/65/EU Compliant, Yes
• Dielectric Strength: 1150 V/mil
• Elongation At Break: 250%
• Family: Scotch� Vinyl Electrical Tape Super 88
• Flame Retardant: RoHS 2011/65/EU Compliant
• High Temperature Rating: 221�F (105�C)
• Insulated: RoHS 2011/65/EU Compliant, Yes
• Length Metric : 20 m
• Low Temperature Rating: 0�F (-18�C)
• National Stock Number: 5970000121276, 5970003972997
• Operating Temperature Celsius : Up to 105 Degree Celsius
• Operating Temperature Range Celsius : -18 �C to 105 �C
• Operating Temperature Range Fahrenheit : 0 �F to 220 �F
• Performance Level: Professional Grade
• Product Color: Black
• Product Length: 66 Linear Foot
• Product Markets: Electrical Construction, Electrical Equipment Manufacturing, Electrical MRO, Power Distribution
• Product Material: PVC
• Product Type: Vinyl Electrical Tapes
• Product Width: 0.75 Inch
• Rohs 2011 65 Eu Compliant: RoHS 2011/65/EU Compliant, Yes
• Rohs Eu Comments: RoHS 2011/65/EU compliant without exemption
• Rolls Per Carton: 10
• Rolls Per Case: 100
• Self Extinguishing: RoHS 2011/65/EU Compliant, Yes
• Self Sticking Amalgamating: No, Sunlight Resistant
• Shelf Life: 5 Year
• Solution For: Wireless Network: Infrastructure Accessories
• Specifications: ASTM D-3005 type 2, Mil-I- 24391C, SS 404 09 75, VDE 0340 TEIL 3-1
• Suitable For High Voltage: No, Sunlight Resistant
• Tape Grade: Premium
• Tape Type: Vinyl
• Tape Width Metric : 19 mm
• Thickness: 8.5 mil
• Thickness Metric : 0.22 mm
• Trademark: Scotch
• Ul File Number: E129200
• Uv Resistant: RoHS 2011/65/EU Compliant, Yes
• Voltage Application: Low Voltage
• Voltage Rating: 600 V
• Vulcanizing: No, Sunlight Resistant
• Width Metric : 19 mm

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical Construction and Installation Projects
• Electrical Equipment Manufacturing and Assembly
• Electrical Maintenance, Repair, and Operations (MRO)
• Power Distribution System Maintenance
• Commercial and Industrial Electrical Systems
• Outdoor Electrical Connections and Splices
• Wireless Network Infrastructure Accessories

Why Choose 3M Quality?

3M Scotch Super 88 electrical tape represents decades of adhesive technology innovation with UL Listed and CSA Certified performance. The 5-year shelf life and RoHS 2011/65/EU compliance ensure long-term reliability and environmental responsibility. Manufactured in the USA with premium-grade materials, this professional-grade tape delivers consistent performance in the most demanding electrical applications.
