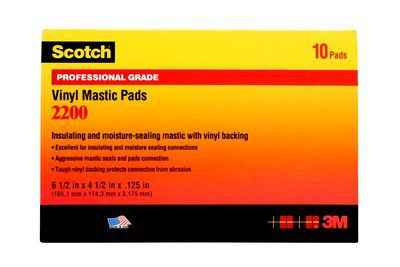

3M Scotch Vinyl Mastic Pad 2200 3-1/4 x 4-1/2 Inch 125 mil Premium Grade Electrical Sealing Pad

3M Scotch Vinyl Mastic Pad 2200 3-1/4 x 4-1/2 Inch 125 mil Premium Grade Electrical Sealing Pad

Premium-grade self-fusing mastic pad for moisture sealing and electrical connections up to 600V

The 3M Scotch Vinyl Mastic Pad 2200 delivers professional-grade electrical insulation and moisture sealing for connections up to 600 volts. This premium-grade self-fusing mastic pad features a durable 125-mil thickness with polyvinyl chloride backing for superior mechanical protection. Engineered for both indoor and outdoor applications, it withstands temperatures from 0�F to 100�F (-18�C to 38�C) while providing excellent resistance to UV rays, abrasion, moisture, and alkalis.

Professional Features & Benefits

• 600V Voltage Rating: Safely handles electrical connections up to 600 volts for reliable power distribution applications
• 125 mil Thickness: Provides robust insulation and sealing performance with premium-grade mastic construction
• Temperature Range 0�F to 100�F: Maintains performance integrity across wide temperature variations for year-round reliability
• UV Resistant PVC Backing: Protects against weathering and mechanical damage with durable polyvinyl chloride construction
• Self-Fusing Mastic Adhesive: Creates permanent, moisture-tight seals with aggressive adhesion properties
• Premium Grade Construction: Delivers superior performance with 7-mil PVC backing and 118-mil mastic pad
• RoHS 2011/65/EU Compliant: Meets environmental compliance standards for professional electrical applications

Technical Specifications

• 3m Id: 80610087100
• Adhesion To Steel: 21,9 N/cm
• Adhesive Material: Mastic
• Adhesive Type: Synthetic elastomers and resins
• Applications: Electrical Maintenance
• Backing Material: Vinyl Mastic
• Backing Thickness Metric : 3 mm
• Breaking Strength: 20 lb/in
• Case Quantity: 50 Pads
• Dielectric Strength: 300 V/mil
• Dielectric Strength V Mil : 300
• Elongation: 200%
• Elongation At Break: 200%
• Family: Scotch� Vinyl Mastic Tapes 2200 and 2210
• High Temperature Rating: 100�F (38�C)
• Insulated: RoHS 2011/65/EU Compliant, Yes
• Length Metric : 0.1 m
• Low Temperature Rating: 0�F (-18�C)
• Maximum Operating Temperature Celsius : 80 Degree Celsius
• Maximum Operating Temperature Fahrenheit : 176 Degree Fahrenheit
• National Stock Number: 5.97E+12
• Operating Temperature Celsius : -18 �C to 38 �C
• Operating Temperature Fahrenheit : 0 �F to 100 �F
• Operating Temperature Range Celsius : -18 �C to 38 �C
• Operating Temperature Range Fahrenheit : 0 �F to 100 �F
• Pads Per Carton: 10
• Pads Per Case: 50 Pads
• Product Color: Black
• Product Length: 4.5 Inch
• Product Markets: Electrical Construction, Electrical Equipment Manufacturing, Electrical MRO, Power Distribution
• Product Material: Mastic with PVC Backing
• Product Type: Mastic tape
• Product Width: 3.25 Inch
• Rohs 2011 65 Eu Compliant: RoHS 2011/65/EU Compliant, Yes
• Rohs Eu Comments: RoHS 2011/65/EU compliant without exemption
• Self Extinguishing: No, Sunlight Resistant
• Self Sticking Amalgamating: RoHS 2011/65/EU Compliant, Yes
• Shelf Life: 5 Year
• Solution For: Wireless Network: Infrastructure Accessories
• Suitable For High Voltage: No, Sunlight Resistant
• Tape Grade: Premium
• Tape Type: Sealing and Mastic
• Tape Width Metric : 83 mm
• Tensile Strength Lb In N 100 Mm : 50 (876)
• Thickness: 125 mil
• Thickness Metric : 3.18 mm
• Trademark: Scotch�
• Uv Resistant: RoHS 2011/65/EU Compliant, Yes
• Voltage Application: Low Voltage
• Voltage Rating: 600 V
• Vulcanizing: No, Sunlight Resistant
• Width Metric : 82.55 mm

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical Construction Projects
• Power Distribution Systems
• Electrical Equipment Manufacturing
• Electrical Maintenance and Repair Operations
• Wireless Network Infrastructure
• Industrial Electrical Installations
• Commercial Electrical Systems

Why Choose 3M Quality?

3M Scotch Vinyl Mastic Pad 2200 represents proven reliability with a 5-year shelf life and RoHS 2011/65/EU compliance. The premium-grade construction and comprehensive temperature range ensure dependable performance in demanding electrical applications, backed by 3M's commitment to quality and innovation in electrical insulation solutions.
