3M Scotch Vinyl Mastic Pad 2200 Series 125 Mil 6.5" x 4.5" Electrical Insulation Pads

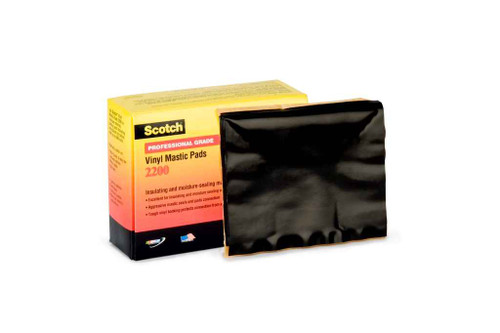

3M Scotch Vinyl Mastic Pad 2200 Series - 125 Mil, 6.5" x 4.5"

The 3M Scotch Vinyl Mastic Pad 2200 Series is a conformable, self-sealing insulation pad designed for electrical connections rated up to 600V. At 125 mil thick, it wraps and conforms to irregular surfaces - cable splices, connectors, and terminations - creating a moisture-tight, abrasion-resistant barrier. Backed by polyvinyl chloride with a mastic adhesive system, it resists moisture, alkalis, acids, copper corrosion, UV exposure, and weathering. Supplied 50 pads per case for efficient job-site use.

Key Features

• 125 Mil Thickness: Substantial insulation barrier and mechanical protection for critical electrical connections.
• 600V Rating / 300 V/mil Dielectric Strength: Reliable electrical isolation for low-voltage applications.
• Conformable Mastic Adhesive: Self-seals around irregular surfaces, connectors, and splice geometries without voids.
• Weather & UV Resistant: Rated for outdoor and underground use; withstands 0°F to 100°F ( - 18°C to 38°C) operating range.
• PVC Backing, 20 lb/in Breaking Strength: Long-term mechanical durability in demanding environments.
• RoHS 2011/65/EU Compliant: Without exemption - suitable for projects with environmental compliance requirements.
• 50 Per Case: Case-pack quantity supports production splicing and large installation runs.

Typical Applications

• Cable splice insulation and moisture sealing - overhead, underground, and direct-burial
• Connector and termination protection on solid dielectric cable
li>Outdoor and harsh-environment electrical installations
• Utility and power distribution connection points
• Industrial equipment wiring and junction protection
• Marine and corrosive-environment applications

How to Use

1. Clean and dry the connection or splice area before application.
2. Peel the pad from its liner and center it over the connection point.
3. Press and conform the pad firmly around the surface, ensuring full contact with no air gaps.
4. For high-exposure applications, overwrap with 3M Scotch 33+ or 88 vinyl electrical tape to secure edges.

Technical Specifications

• Thickness: 125 mil (3.175 mm)
• Dimensions: 6.5 in × 4.5 in (165 mm × 114 mm)
• Voltage Rating: 600V
• Dielectric Strength: 300 V/mil
• Backing Material: Polyvinyl Chloride (PVC)
• Adhesive: Mastic
• Breaking Strength: 20 lb/in
• Operating Temperature: 0°F to 100°F ( - 18°C to 38°C)
• Color: Black
• Tape Grade: Premium
• Quantity: 50 per case
• RoHS Compliance: RoHS 2011/65/EU compliant without exemption
• UV Resistant: Yes
