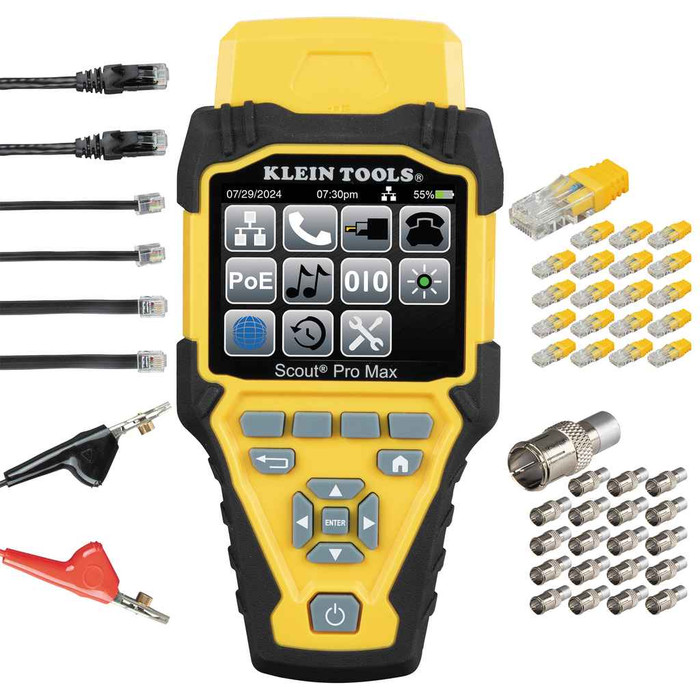

Klein Tools VDV501-770 Scout® Pro Max Network Cable Tester With Remote Set

Klein Tools VDV501-770 Scout® Pro Max Network Cable Tester With Remote Set

(No reviews yet) Write a Review

Model: VDV501-770
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$799.99
$749.99
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Scout® Pro Max Network Cable Tester With Remote Set

  • Warnings

    • Always wear approved eye protection.
    • Plugging 6-position plugs into the 8-position jack on the tester has the potential to damage the outer-most contacts of the jack unless the plug is specifically designed for that purpose.
    • The RJ45 port is the only jack designed for PoE energized cables. Connecting AC energized cables to any port may damage it and pose a safety hazard to the user.
    • Improperly terminated RJ plugs have the potential to damage the jacks on the VDV Scout® Pro Max. Visually inspect an RJ plug before inserting it into the tester. The contacts should always be recessed into the plastic housing of the plug.

  • Features

    • Initiate hub blink to easily identify and locate cables on device and POTS testing
    • Measure cable length up to 2000 feet (610 m) and distance to fault with TDR
    • Digital / Analog tone generation to easily probe cables (requires Cat. No. VDV500-223, sold separately)
    • Measures Cable Length; Backlit LCD; Hub Blink
    • Network cable tester locates, tests, and measures data, phone, and coax cables to ensure fast and accurate installations and troubleshoot faults
    • Detect network capabilities and connection speeds up to 10G bps
    • Full color back-lit screen and internal memory to store, download, and output test results for easy report management
    • Locate and identify up to 20 locations with ID remotes for greater cable management and organization


VDV501-770 - spec sheet

Manufacturer Resources

Product Specs

Accuracy:
± (2% + 3' or 1 m) with Known VoP and Consistent Cable Parameters
Batteries:
3× AA alkaline
Battery Life:
Active - 15 hr; Standby - 1 yr
Cable Identification:
Includes 20 Remote Locators
Cable Type:
DATA -, Shielded or Unshielded, CAT6; COAXIAL - RJ11, RJ12, RJ45
Connection Adapter Types:
RJ11, RJ12, RJ45, Coax F
Depth:
7.1600 in
Display:
Backlit LCD
Drop Protection:
6.6' (2 m)
Height:
1.6300 in
Material:
Plastic and Metal
Multiple Style Tone Generator:
Yes (5); Requires Tracing Probe (Cat. No. VDV500-223); Sold Separately
Overall Height:
1.5" (3.8 cm)
Overall Length:
8" (20.3 cm)
Overall Width:
4" (10.2 cm)
Supported Remotes:
41
Test Measure Types:
Ethernet/Data and Coaxial
Weight:
3.7000 lbs
Width:
3.9300 in
Department:
Electrical
Product Group:
Test & Measurement
Product Subgroup:
Electrical Testers
Product Type:
Twisted Pair, DATA, Voice, LAN, and Coaxial
Product Details:
Twisted Pair, DATA, Voice, LAN, and Coaxial
