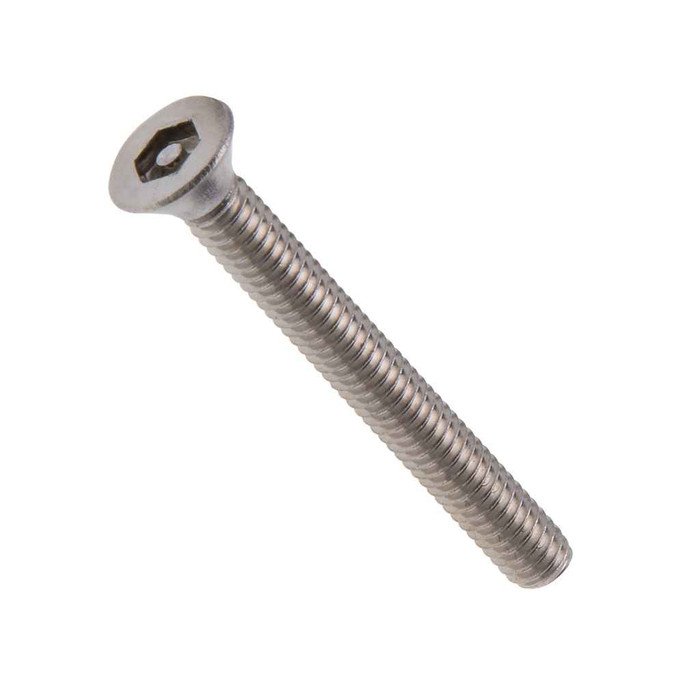

Screws 8-32 x 3/4 FH Hx Pin TR MS 18- (100 pcs)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Screws
Metallics TP106SFC – Frequently Asked Questions
1) What driver do I need for the hex pin tamper-resistant screw head on the Metallics TP106SFC?
It uses a hex pin (pin-in-hex) tamper-resistant recess, so a standard hex key or Allen bit will not seat. You need a pin-in-hex security bit of the matching size, which has a hollow center to clear the pin in the middle of the recess. Plan on having those bits on the truck before you get to the job.
2) Will a flat head 8-32 security screw sit flush, or will it stand proud of the plate?
Flat head means a countersunk 82 degree head, so it sits flush in a countersunk or dimpled hole. On a flat, non-countersunk plate the head will stand proud. If you need the head above the surface by design, a pan or button head is the better call.
3) Can I use these 8-32 tamper-resistant machine screws in a sheet metal or wood hole?
No. The TP106SFC is a machine screw with a uniform 8-32 machine thread, which needs a tapped hole, a nut, or a threaded insert. It will not cut its own thread in sheet metal or hold in wood. For those substrates use a sheet metal or wood screw instead.
4) Are these the right security screws for electrical device plates and enclosure covers?
Yes, that is the use case. 8-32 is the standard thread for electrical device and plate screws, and the hex pin head makes the fastener resist removal with common hand tools in public corridors, schools, transit areas, and multi-family common spaces. The 3/4 inch length suits a plate or cover over a device or box with some depth to the tapped boss.
5) How many screws come in a box of Metallics TP106SFC?
They ship 100 pieces to the box. For an MRO or electrical crew standardizing tamper-resistant fasteners across a building, that is one part number covering a run of covers or plates rather than counting out loose hardware.
How fast can I get the Metallics TP106SFC delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Metallics TP106SFC come with a warranty?
Absolutely. The Metallics TP106SFC is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Metallics TP106SFC?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
Why buy the Metallics TP106SFC from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support,
and
rewards on
every order.
Our team is always ready to help you choose the right product for your project.
