Metallics JDS162 Screws 8 X 1-...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.19
$0.19

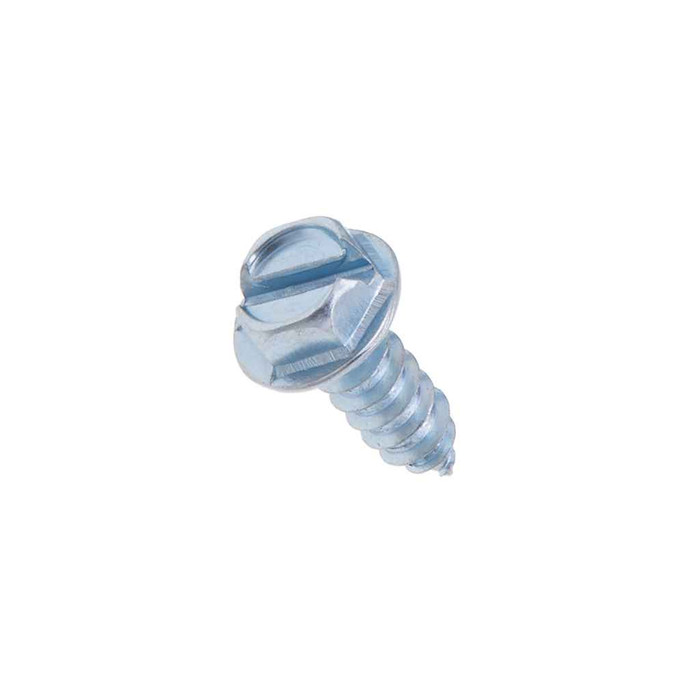

Metallics JDS162 Screws 8 X 1-1/4 Ih Hx 1/4Hd Sl TS St (Jar 100)

Metallics JDS162 Screws 8 X 1-1/4 Ih Hx 1/4Hd Sl TS St (Jar 100)

(No reviews yet) Write a Review

Model: JDS162
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.19
$0.19
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Screws 8 X 1-1/4 Ih Hx 1/4Hd Sl TS St (Jar 100)

  • Additional Notes

    • Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4

  • Features

    • A thread forming tapping screw with wider spaced threads than a Type-AB and a gimlet point
    • For self starting in thin (0.015-0.050 thick) metal or resin-filled plywood.

Manufacturer Resources

Product Specs

Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Hex/Slotted
Fastener Head Height:
0.096 - 0.11 in.
Fastener Head Type:
Indented Hex
Fastener Head Width:
0.244 - 0.25 in.
Fastener Length:
1/1/04
Field Application:
Light Metal Assembly such as Electrical Outlets, Framing and Various Other Sheet Metal
Hardness:
RockweII C28-38
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Indent_Hex_Head_Slot_TS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.68 lbs
Product Width:
3 in
Screw Point Type:
Gimlet Point
Slot Depth:
0.052 - 0.066
Slot Width:
0.045 - 0.054
Sub Division:
Electrical-E H2
Thread Per Inch:
15
Thread Standard:
ASME B18.6.4
Torsional Strength:
39 lb-in minimum
Washer Od:
0.322 - 0.348 in.
Washer Thickness:
0.019 - 0.031 IN
Width Across Corners:
0.272
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JDS
Product Finish:
Zinc
Product Details:
Type A Tapping Screw
Product Material:
Steel

Metallics JDS162 – Frequently Asked Questions

1) What metal thickness will the Metallics JDS162 tapping screw self-start in?
The JDS162 is a Type A thread forming tapping screw with a gimlet point, made to self-start in thin metal from 0.015 to 0.050 inch thick, or in resin-filled plywood. Thicker sheet or structural steel needs a self-drilling screw instead, not a Type A.
2) Can I drive the JDS162 screw with a nut driver or do I need a screwdriver?
Either. The head is an indented hex with a slot, so a 1/4 inch nut driver fits over it (head width runs 0.244 to 0.250 inch, 0.272 across the corners) or you can use a flat blade in the slot, which is 0.045 to 0.054 inch wide and 0.052 to 0.066 inch deep. Most electricians run these with a 1/4 inch magnetic nut setter.
3) Can I use the Metallics JDS162 screw on a Buy American or ARRA funded project?
No. The JDS162 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. For a federally funded job with domestic sourcing requirements you will need a domestically produced fastener instead.
4) What is the difference between a Type A and a Type AB tapping screw?
A Type A like the JDS162 has wider spaced threads, 15 threads per inch at #8, and a gimlet point for self starting in thin sheet. Type AB uses a finer thread pitch and suits a broader range of base materials. If the spec on your job calls out Type AB, the thread pitch will not match, so don't substitute this one.
5) Are these screws any good for mounting electrical outlet boxes and sheet metal framing?
That is exactly the intended use. Metallics lists the field application as light metal assembly, including electrical outlets, framing and other sheet metal work. The screws are steel with a zinc finish, so they are for dry interior use rather than exposed exterior locations.
6) How tough are these screws, and will they snap in an impact driver?
The JDS162 is heat treated to Rockwell C28-38 from AISI 1016-1024 steel and carries a minimum torsional strength of 39 lb-in. That is the torque the screw itself will take before twisting off, so keep the clutch setting modest on a high torque driver when seating into harder sheet.
7) Does the JDS162 screw come with a washer built into the head?
Yes, the indented hex head has an integral washer face with a 0.322 to 0.348 inch outside diameter and a thickness of 0.019 to 0.031 inch. Head height is 0.096 to 0.110 inch. The washer spreads bearing on thin sheet so you are less likely to pull the screw through.
8) What standards do these Metallics Type A tapping screws conform to?
Head and body dimensions follow ASME B18.6.3-2010 and the thread form follows ASME B18.6.4. Note that for #9 diameters in the JDS series the dimensions are independent of ASME B18.6.4. Material is per AISI 1016-1024.
9) How are these sold, and how many screws in a jar?
They ship in a jar of 100, and the jar is the order minimum unit. The packed jar weighs 0.68 lbs.
