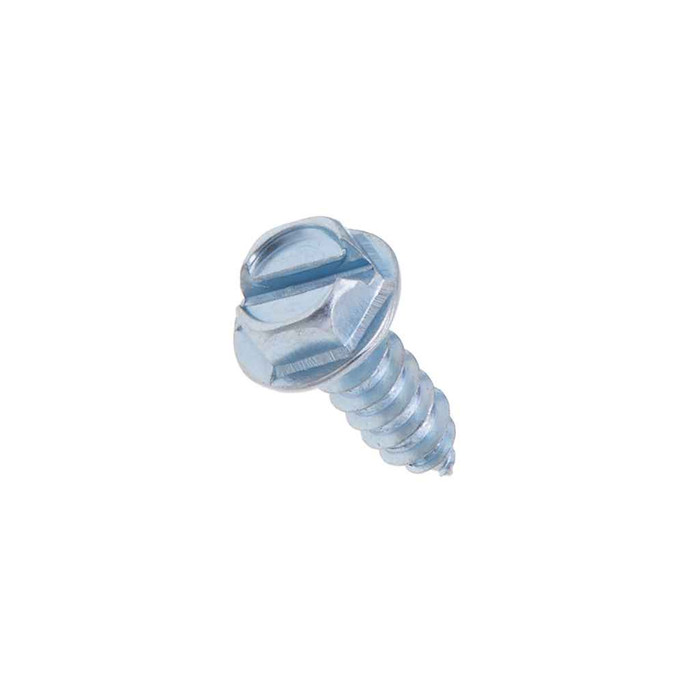

Metallics JDS154 Screws 8 X 1 Ih Hx 1/4Hd Sl TS St-zn (Jar 100)

Metallics JDS154 Screws 8 X 1 Ih Hx 1/4Hd Sl TS St-zn (Jar 100)

(No reviews yet) Write a Review

Model: JDS154
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.16
$0.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Screws 8 X 1 Ih Hx 1/4Hd Sl TS St-zn (Jar 100)

  • Features

    • For self starting in thin (0.015-0.050 thick) metal or resin-filled plywood.
    • A thread forming tapping screw with wider spaced threads than a Type-AB and a gimlet point

  • Additional Notes

    • Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4

Manufacturer Resources

Product Specs

Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Hex/Slotted
Fastener Head Height:
0.096 - 0.11 in.
Fastener Head Type:
Indented Hex
Fastener Head Width:
0.244 - 0.25 in.
Fastener Length:
1
Field Application:
Light Metal Assembly such as Electrical Outlets, Framing and Various Other Sheet Metal
Hardness:
RockweII C28-38
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Indent_Hex_Head_Slot_TS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.555 lbs
Product Width:
3 in
Screw Point Type:
Gimlet Point
Slot Depth:
0.052 - 0.066
Slot Width:
0.045 - 0.054
Sub Division:
Electrical-E H2
Thread Per Inch:
15
Thread Standard:
ASME B18.6.4
Torsional Strength:
39 lb-in minimum
Washer Od:
0.322 - 0.348 in.
Washer Thickness:
0.019 - 0.031 IN
Width Across Corners:
0.272
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JDS
Product Finish:
Zinc
Product Details:
Type A Tapping Screw
Product Material:
Steel

Metallics JDS154 – Frequently Asked Questions

1) What metal thickness will a #8 x 1 inch Type A tapping screw self-start in?
The Metallics JDS154 is made to self-start in thin metal from 0.015 to 0.050 inch thick, or in resin-filled plywood. Thicker steel needs a different screw type, since the gimlet point and the wide 15 threads per inch spacing rely on thin material to form their own thread.
2) Are Metallics JDS154 screws Buy American or ARRA compliant for a federal job?
No. The JDS154 is not Buy American compliant and is not ARRA compliant. Country of origin is listed as multiple. If your project carries domestic sourcing requirements, this screw will not satisfy them.
3) Can I drive the JDS154 with a nut driver, or do I need a screwdriver?
Either. The JDS154 has a combination hex and slotted drive, with an indented hex head measuring 0.244 to 0.25 inch across the flats and 0.272 across the corners, so a 1/4 inch nut driver seats on it. The slot runs 0.045 to 0.054 inch wide and 0.052 to 0.066 inch deep for a flat blade.
4) What is the difference between a Type A and a Type AB tapping screw?
A Type A screw like the JDS154 has wider spaced threads than a Type AB and a gimlet point. The coarse pitch (15 threads per inch at #8) grabs fast in very thin sheet, 0.015 to 0.050 inch. Type AB runs a finer pitch and is the better pick when you are going into heavier gauge or want more holding threads engaged in the same material depth.
5) Are these the screws for mounting electrical outlet boxes and sheet metal framing?
Yes. The JDS154 is specified for light metal assembly such as electrical outlets, framing and other sheet metal work. It is a #8 diameter, 1 inch long steel screw with a zinc finish.
6) How many screws come in a jar, and can I order a smaller quantity?
The JDS154 ships as a jar of 100, and 100 (one jar) is the order minimum. Other sizes and quantities are available by request.
7) Will these Metallics screws snap when driven with an impact driver?
The JDS154 is case hardened to Rockwell C28-38 with a minimum torsional strength of 39 lb-in. That is the failure torque to respect: a cordless impact can easily exceed it in thin sheet, so clutch down or use a driver with torque control. Material is AISI 1016-1024 steel.
8) Do these screws meet a published dimensional spec for submittals?
Yes. Head and drive dimensions on the JDS154 conform to ASME B18.6.3-2010, and the thread conforms to ASME B18.6.4. One caveat worth noting across the JDS line: dimensions for #9 diameter screws are independent of ASME B18.6.4.
9) Does the JDS154 have a built-in washer under the head?
The head is an indented hex with an integral washer face, 0.322 to 0.348 inch outside diameter and 0.019 to 0.031 inch thick. That spreads the bearing load on thin sheet, so you generally do not need to add a separate washer. Head height is 0.096 to 0.11 inch.
10) Is a zinc plated steel tapping screw suitable for outdoor or damp locations?
The JDS154 is steel with a zinc finish, which is a dry-location coating. It is intended for interior light metal assembly such as outlet boxes, framing and sheet metal. For exterior or wet exposure, choose a stainless or coated exterior-rated fastener instead.
