SDC SDC 12VR - Voltage Power Convertors SDC-12VR

SDC 12VR Series Voltage Power Converter with Dual Output Control

(No reviews yet) Write a Review

Model: 12VR

In Stock (leaves warehouse same day if ordered before 3pm ET)

$80.00
$65.11
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SDC 12VR Series Voltage Power Converter with Dual Output Control

Professional Dual-Voltage Power Management Solution

The SDC 12VR Series voltage power converter provides essential dual-voltage capability for access control systems, delivering both 12VDC and 24VDC outputs from a single power source. This compact 3.3"; x 2"; module eliminates the need for separate power supplies when systems require both 12VDC access controllers and 24VDC locking devices. The isolated relay design supports small gauge 22 AWG cable runs up to 1000 feet from trigger devices, simplifying installation while maintaining reliable performance.

Professional Features & Benefits

  • Dual Voltage Output: Provides separate 12VDC, 1 Amp output while working with 24VDC power supplies for comprehensive system compatibility.
  • Extended Cable Runs: Isolated relay design allows 22 gauge wire runs up to 1000 feet from trigger device to module for flexible installation options.
  • Compact Design: 3.3"; x 2"; dimensions enable installation in tight spaces and standard electrical enclosures.
  • Individual Output Protection: Two individually fused outputs provide independent circuit protection for connected devices.
  • System Integration: Compatible with SDC 600 series power supplies set at 24VDC for seamless system coordination.
  • Modular Configuration: Multiple function modules may be used with the same power supply or cabinet for scalable installations.
  • Access Control Compatibility: Powers access controllers, readers, and other 12VDC devices while maintaining 24VDC capability for locking hardware.

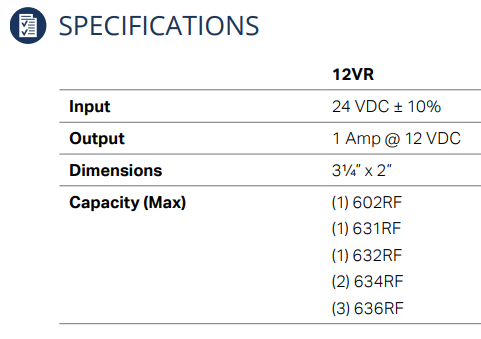

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Electronic: Yes
  • PDF:SDC Full Catalog: https://zensupply.com/content/pdf/lcn/CondensedHardwareBrochure
  • Product Category: Electronic Access Controls
  • Product Dimension: 31/4"; x 2";
  • Product Group: Electronic Access Controls
  • Product Model: 12VR
  • Product Subgroup: Controllers, Power Supplies and Transformers
  • Product Type: Door Controllers
  • Product Voltage: 12/24VDC
  • Series: 12VR Series
  • Subcategory: Door Controllers

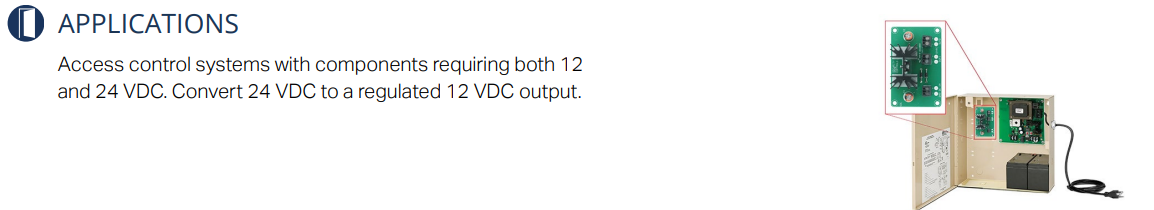

Professional Applications

  • Commercial Building Security Systems
  • Retail Loss Prevention
  • Healthcare Facility Access Control
  • Educational Institution Safety Systems
  • Industrial Facility Monitoring
  • Emergency Exit Compliance
  • Multi-Tenant Access Management

Why Choose SDC Quality?

SDC voltage power converters deliver professional-grade reliability with isolated relay design and individual output protection for demanding commercial applications. The modular configuration and extended cable run capability provide installation flexibility while maintaining system integrity. Engineered for dependable performance where dual-voltage access control systems require seamless integration and reliable operation.

Manufacturer Resources

SDC Full Catalog

Product Specs

Series:
12VR Series
Subcategory:
Door Controllers
Product Group:
Electronic Access Controls
Product Subgroup:
Controllers, Power Supplies and Transformers
Product Type:
Door Controllers
Commercial/Residential:
Commercial
Electronic:
Yes
Product Model:
12VR
Product Voltage:
12/24VDC
Product Dimension:
31/4" x 2"
Product Category:
Electronic Access Controls
Department:
Door Hardware

SDC 12VR – Frequently Asked Questions

1) I have a 24VDC power supply but my card reader needs 12VDC. Will the SDC 12VR solve that?
That is exactly what the 12VR is built for. It takes 24VDC from your existing supply and delivers a separate 12VDC output rated at 1 Amp, so you can run a 12VDC access controller or reader off the same supply feeding your 24VDC locking hardware. No second power supply or transformer needed in the cabinet.
2) How far can I run the trigger wire to the SDC 12VR module?
Up to 1000 feet using 22 AWG wire. The isolated relay design is what makes that possible, so the trigger device (push button, REX, reader output) can sit well away from the module without voltage drop on the trigger circuit defeating it. That matters on long corridors and multi-building runs where the power supply cabinet is nowhere near the door.
3) Will the 12VR fit inside my SDC power supply cabinet?
It is a compact module measuring 3-1/4 x 2 inches, sized to drop into a standard electrical enclosure or an existing power supply cabinet. SDC states it works with the 600 series power supplies set at 24VDC, and more than one function module can share the same supply or cabinet if you are building out a multi-door setup.
4) Is the 12VR a power supply or does it still need one?
It is a converter, not a source. The 12VR has to be fed from a 24VDC power supply; it then derives the 12VDC, 1 Amp output. If you have no supply in the cabinet yet, you need to order one (an SDC 600 series set to 24VDC is the stated match) plus the 12VR.
5) What happens if a device on one output shorts out?
The two outputs are individually fused, so a fault on one circuit drops that circuit only and leaves the other running. On a door with a 24VDC lock and a 12VDC controller, a short at the reader does not take the lock power down with it.
6) How much current can I pull off the 12VDC side of the 12VR?
1 Amp. Budget your 12VDC devices against that before you commit: a couple of readers and a controller board usually fit, but a 12VDC maglock or strike with real holding current can eat most of it on its own. Add up the published draw of everything you intend to hang on that output.
7) I need more than one door converted. Do I buy a 12VR for each?
Yes, one module per conversion, but they can share infrastructure. SDC states multiple function modules may be used with the same power supply or cabinet, so a single 24VDC supply with enough headroom can host several 12VR modules rather than each door getting its own enclosure.
8) Can I use the SDC 12VR on a residential door?
It is classed as commercial hardware and is built for commercial access control: building security systems, healthcare and school openings, multi-tenant access, retail loss prevention. Nothing stops it electrically on a small job, but the design intent is the commercial cabinet, not a house.
How fast can I get the SDC 12VR delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the SDC 12VR come with a warranty?
Absolutely. The SDC 12VR is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the SDC 12VR?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
