SDC 410 Series Illuminated Push Button Exit Switch with Narrow Frame Mount

SDC 410 Series Illuminated Push Button Exit Switch with Narrow Frame Mount

(No reviews yet) Write a Review

Model: 413PNU
$402.00
$281.08
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$402.00
$281.08
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SDC 410 Series Illuminated Push Button Exit Switch with Narrow Frame Mount

Code-Compliant Manual Releasing Device for Access-Controlled Egress

The SDC 410 Series illuminated push button exit switch features a two-inch square illuminated button for easy activation and visual conspicuity. Constructed with high impact resistant materials and measuring 1 3/4"; x 4-1/2";, this narrow frame mount assembly operates on 12/24VDC auto-sensing dual voltage. The included ";PUSH TO EXIT"; signage complies with NFPA requirements for access-controlled egress doors.

Professional Features & Benefits

  • Compact Dimensions: 1 3/4"; x 4-1/2"; narrow frame mount design fits standard electrical box installations for space-efficient mounting.
  • Flexible Power Options: Auto-sensing dual voltage 12/24VDC operation eliminates field voltage selection for simplified installation.
  • High-Impact Construction: Impact-resistant materials withstand abuse in high-traffic commercial applications for long-term reliability.
  • Code Compliance: Meets manual releasing device requirements per IBC 1008.1.3.4, IFC 1008.1.3.4, NFPA 101 7.2.1.6.2, NFPA 1.15.5.3.2, BOCA 1017.4.5, and SBCCI 1012.7.
  • Visual Indication Options: Available with green or red illuminated switch buttons plus included colored lenses for clear operational status.
  • Multiple Timer Options: Electronic timer, pneumatic timer, momentary (MO) and alternate action (AA) on/off models accommodate various access control requirements.
  • Professional Construction: Stainless steel faceplate provides durability and professional appearance in commercial environments.
  • Sensor Compatibility: 413MN models work with MD-31D motion sensors for complete manual releasing device and sensor compliance.

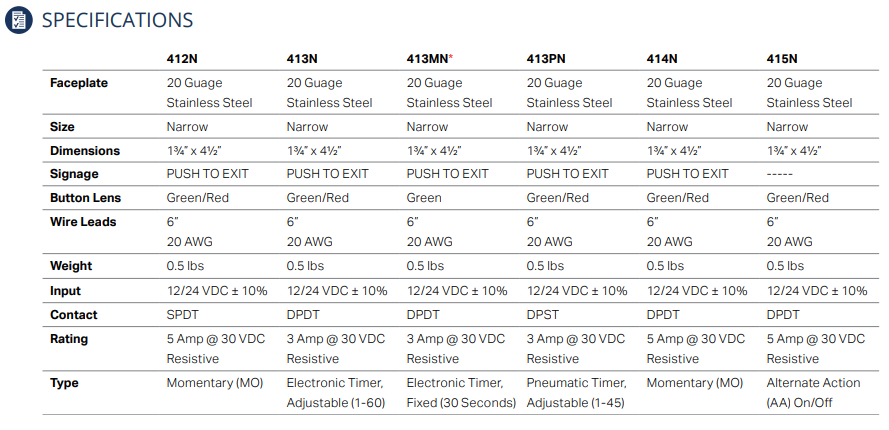

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Electronic: Yes
  • Product Category: Electronic Access Controls
  • Product Dimension: 1 3/4"; x 4-1/2";
  • Product Group: Electronic Access Controls
  • Product Model: 412N, 413N, 413MN, 413PN, 414N, 415N
  • Product Subgroup: Sensors, Switches, Relays and Timers
  • Product Type: Push Buttons Switches
  • Product Voltage: 12/24VDC
  • Series: 410 Series
  • Subcategory: Push Buttons Switches

Professional Applications

  • Commercial Building Security Systems
  • Healthcare Facility Access Control
  • Educational Institution Safety Systems
  • Retail Loss Prevention
  • Industrial Facility Monitoring
  • Emergency Exit Compliance
  • Government and Municipal Buildings

Why Choose SDC Quality?

SDC 410 Series push button switches deliver professional-grade reliability with high impact resistant construction and stainless steel faceplates engineered for demanding commercial applications. Code-compliant design meets multiple building and fire safety standards including IBC, IFC, NFPA 101, and BOCA requirements. Auto-sensing dual voltage operation and multiple timer configurations provide installation flexibility where dependable egress control is essential.

Manufacturer Resources

SDC Full Catalog

Product Specs

Subcategory:
Push Buttons Switches
Series:
410 Series
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Product Type:
Push Buttons Switches
Commercial/Residential:
Commercial
Electronic:
Yes
Product Model:
412N, 413N, 413MN, 413PN, 414N, 415N
Product Voltage:
12/24VDC
Product Dimension:
1 3/4" x 4-1/2"
Product Category:
Electronic Access Controls
Department:
Door Hardware

SDC 413PNU – Frequently Asked Questions

1) Do I need to specify 12V or 24V when ordering an SDC 410 exit switch?
No. The 410 Series runs 12/24VDC auto-sensing dual voltage, so the same switch works off either supply with no jumper or field selection. One part number covers both, which matters if your access control panels aren't standardized across the building.
2) Which SDC 410 model do I order for a timed unlock versus a momentary release?
Five models split it out. 412N is momentary, SPDT. 414N is momentary with DPDT contacts, so use it when you need a second set of contacts for an alarm shunt or a monitoring input. 413N gives you an adjustable electronic timer, 1 to 60 seconds, DPDT. 413PN is a pneumatic adjustable timer, 1 to 45 seconds, DPST. 413MN is a fixed 30 second electronic timer, DPDT. Pick the timer models when the door has to stay released long enough for someone to get through after the button is let go.
3) Does the SDC 410 push button satisfy code for an access controlled egress door?
It's built as a manual releasing device and ships with PUSH TO EXIT signage that meets NFPA requirements for access-controlled egress doors. The stated code references are IBC 1008.1.3.4, IFC 1008.1.3.4, NFPA 101 7.2.1.6.2, NFPA 1.15.5.3.2, BOCA 1017.4.5 and SBCCI 1012.7. Your AHJ still approves the opening, but the signage and device type are what those sections call for.
4) I need a request to exit sensor plus a manual button for code compliance. Which SDC model works with a motion sensor?
The 413MN. It's the fixed 30 second electronic timer version, DPDT, and it's the model called out to work with MD-31D motion sensors so you get the manual releasing device and the sensor side of the compliance package together. The other 410 models are the button alone.
5) I need a push to exit button but the wall space is a single gang box on a narrow frame. What are my options?
The SDC 410 Series narrow frame mount plate measures 1 3/4 inch by 4-1/2 inch, which is the standard narrow stile format for door frames and mullions. If you have a true single gang opening instead, the Dortronics 5210 exit release puts a 1-9/16 inch diameter red mushroom push button with Push to Exit and Emergency Release marking on a single gang plate. Both are exit release devices; the difference is the plate footprint you have to work with.
6) I need the exit button to stay latched down until someone resets it. Will the SDC 413N do that?
No. The SDC 410 Series models are momentary or timed: the 412N and 414N are momentary, the 413N runs an adjustable 1 to 60 second electronic timer, the 413MN is a fixed 30 second timer, and the 413PN is a pneumatic timer adjustable 1 to 45 seconds. All of them return on their own. For a button that physically stays in the actuated position until it is released, the Camden CM-6000 series is a red locking mushroom switch in a 2-3/8 inch button.
7) Can I get the SDC exit button with a green or red LED to show the door status?
Four indicator choices on the 410 Series: L1G one green LED, L1R one red LED, L2 one green and one red, and LT a single tri-color LED. You can also order it with no indicator at all. Use L2 or LT where staff need to read locked versus released at a glance, such as a healthcare corridor or a secured vestibule.
8) What finishes does the SDC 410 exit switch come in to match the rest of my door hardware?
Seven finishes: 605 bright brass, 606 dull brass, 613 oil rubbed bronze, 625 bright chrome, 626 dull chrome, 629 bright stainless and 630 satin stainless steel. The faceplate is stainless steel. For a fleet of openings, 630 satin stainless is the one that lines up with most commercial lever and exit device hardware.
9) Is a push to exit button or a mushroom emergency release the right switch for my door?
Two different jobs. The SDC 410 Series is a two-inch square illuminated push button for routine egress on an access-controlled door, with signage and timer options. A mushroom head button, like the Camden CM-5000 Series at 2-3/8 inches or the red locking CM-6000, is the large-target emergency release: the locking version stays latched in once hit and has to be reset deliberately. Use the 410 where people exit all day; use a mushroom release where the point is an obvious, deliberate emergency action.
10) What is the difference between the SDC 413N electronic timer and the 413PN pneumatic timer exit button?
Adjustment range and contacts. The 413N is an electronic timer adjustable 1 to 60 seconds with DPDT contacts. The 413PN is a pneumatic timer adjustable 1 to 45 seconds with DPST contacts. Go electronic if you need the longer hold or a second changeover contact for monitoring; the pneumatic version is the simpler mechanical delay.
11) Can I use a Camden CM-AF500 indicator in place of an SDC 410 Series switch with the LED option?
No, they do different jobs. The Camden CM-AF500 is a single gang LED Occupied When Lit indicator, so it only displays status. The SDC 410 Series is a switch that actually breaks or makes the circuit to release the door, and its LED device options are added onto that switch function: L1G one green, L1R one red, L2 one green and one red, or LT one tri-color. If you want both an exit release and a remote status light, the CM-AF500 is a companion to the switch, not a replacement for it.
12) Which push to exit button matches brass and bronze door hardware instead of a plain aluminum plate?
The SDC 410 Series is offered in 605 bright brass, 606 dull brass, 613 oil rubbed bronze, 625 bright chrome, 626 dull chrome, 629 bright stainless and 630 satin stainless steel, so it can be keyed to the finish already on the openings. The Camden CM-5000 series is specified with an aluminum faceplate. If the specification calls for a decorative architectural finish across a lobby, the SDC finish range is where that match comes from.
13) For an emergency release on an access controlled egress door, is a mushroom button better than the SDC 410 Series?
They serve two different intents. The Dortronics 5210 exit release is a 1-9/16 inch red mushroom button marked Push to Exit and Emergency Release, and the Camden CM-6000 is a red locking mushroom, both formats built to be struck fast and seen from a distance. The SDC 410 Series uses a two inch square illuminated button on a narrow frame plate with PUSH TO EXIT signage included, and meets the manual releasing device requirements of IBC 1008.1.3.4, IFC 1008.1.3.4 and NFPA 101 7.2.1.6.2. Specifiers often use the illuminated narrow plate for everyday egress and reserve a red mushroom for a dedicated emergency release.
14) I am standardizing exit buttons across a building on 12 and 24 volt panels. Which switch handles both?
The SDC 410 Series runs 12/24VDC with auto sensing dual voltage, so the same part number drops onto either bus without a field voltage selection, and it is available in momentary SPDT (412N), momentary DPDT (414N), and timed models (413N, 413MN, 413PN) so one series covers openings that need a dry contact and openings that need a timed release. That single series approach is what makes it a common standardization choice over mixing formats like the Camden CM-5000 mushroom plate and a separate CM-AF500 indicator across the same facility.
15) Will an SDC 410 push button hold up in a high traffic building lobby or school corridor?
It's a commercial-rated device. The button body is high impact resistant material and the faceplate is stainless steel, which is the combination that survives carts, elbows and deliberate abuse in schools, hospitals and industrial buildings. The two-inch square illuminated face also stays findable in a dim corridor.
16) Does the SDC 410 exit button need a maintained on/off action instead of momentary?
Momentary is what the 410 models cover: 412N with SPDT contacts and 414N with DPDT. If your application needs the switch to latch on and stay on until pressed again, that is a different device class, and a locking mushroom switch such as the Camden CM-6000 is the direction to look. Don't spec a momentary button for a door you intend to hold unlocked.
