SDC FB-4 Four Output Power Dis...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$103.00
$87.63
SDC SDC FB-4 - Four Output Power Distribution Modules SDC-FB-4

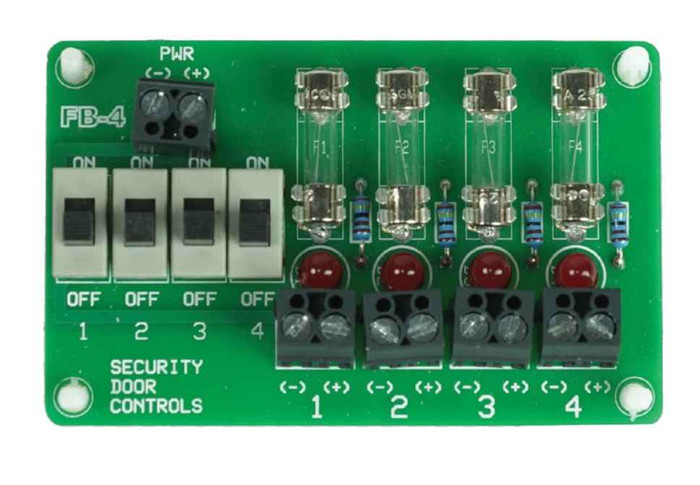

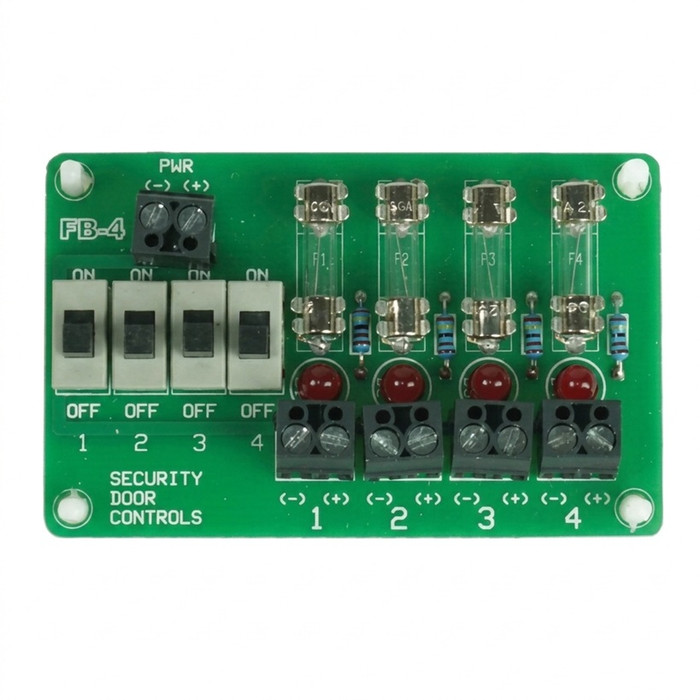

SDC FB-4 Four Output Power Distribution Module with 2 Amp Fuse Protection

(No reviews yet) Write a Review

Model: FB-4

In Stock (leaves warehouse same day if ordered before 3pm ET)

$103.00
$87.63
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SDC FB-4 Four Output Power Distribution Module with 2 Amp Fuse Protection

Professional Power Distribution Solution for Access Control Systems

The SDC FB-4 Four Output Power Distribution Module provides precise circuit protection and simplified system installation for commercial access control applications. This 12/24VDC auto-sensing module distributes primary DC output from 600 series power supplies into four individually fused class 2 outputs, delivering up to sixteen total outputs when using four modules. The compact 3.3"; x 2"; design features 2 Amp fuse protection on each output for reliable operation and maintenance ease.

Professional Features & Benefits

  • Compact Dimensions: 3.3"; x 2"; footprint allows flexible mounting in tight spaces and standard electrical enclosures.
  • Dual Voltage Operation: Auto-sensing 12/24VDC capability provides compatibility with various power supply configurations and system requirements.
  • Individual Circuit Protection: Four 2 Amp fuse protected outputs ensure isolated protection and prevent single point failures affecting multiple devices.
  • Expandable Configuration: Four modules provide sixteen total outputs for comprehensive system distribution and multiple device termination.
  • Maintenance-Friendly Design: Four separate outputs with individual on/off switches allow selective control and troubleshooting without system shutdown.
  • Visual Status Monitoring: LED visual status indicators provide immediate relay activation feedback for quick system diagnostics.
  • Class 2 Output Compliance: Four individually fused class 2 outputs meet electrical code requirements for low-voltage installations.
  • 600 Series Compatibility: Designed for integration with SDC 600 series power supplies for seamless system expansion.

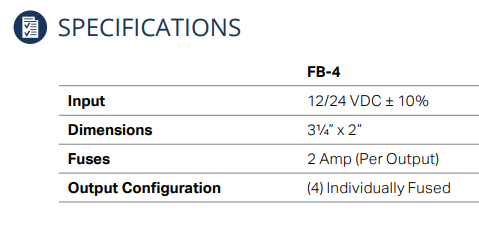

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Electronic: Yes
  • PDF:SDC Full Catalog: https://zensupply.com/content/pdf/lcn/CondensedHardwareBrochure
  • Product Category: Electronic Access Controls
  • Product Dimension: 3.3"; x 2";
  • Product Group: Electronic Access Controls
  • Product Model: EMC
  • Product Subgroup: Controllers, Power Supplies and Transformers
  • Product Type: Door Controllers
  • Product Voltage: 12/24VDC
  • Series: EMC Series
  • Subcategory: Door Controllers

Professional Applications

  • Commercial Building Security Systems
  • Multi-Device Access Control Installations
  • Educational Institution Safety Systems
  • Healthcare Facility Access Control
  • Industrial Facility Monitoring
  • Government and Municipal Buildings
  • Retail Security System Distribution

Why Choose SDC Quality?

SDC FB-4 power distribution modules deliver professional-grade reliability with auto-sensing dual voltage operation and individual 2 Amp fuse protection for demanding commercial applications. The compact design with visual LED status indicators ensures easy installation and maintenance in access control systems. Engineered for seamless integration with SDC 600 series power supplies where dependable power distribution is essential.

Manufacturer Resources

SDC Full Catalog

Product Specs

Subcategory:
Door Controllers
Series:
EMC Series
Product Group:
Electronic Access Controls
Product Subgroup:
Controllers, Power Supplies and Transformers
Product Type:
Door Controllers
Commercial/Residential:
Commercial
Electronic:
Yes
Product Model:
EMC
Product Voltage:
12/24VDC
Product Dimension:
3.3" x 2"
Product Category:
Electronic Access Controls
Department:
Door Hardware

SDC FB-4 – Frequently Asked Questions

1) What does the SDC FB-4 power distribution module actually do in an access control system?
The FB-4 takes the primary DC output from an SDC 600 series power supply and splits it into four individually fused Class 2 outputs, so each locking device or reader gets its own protected circuit. Each output carries a 2 amp fuse and its own on/off switch, plus an LED status indicator. That means you can kill power to one strike or mag lock for service without dropping the rest of the system.
2) Do I have to order a 12VDC or 24VDC version of the FB-4?
No, there is only one version. The FB-4 is auto-sensing 12/24VDC, so the same module works on either supply voltage without jumpers or a different part number. It is offered as a single model, FB-4.
3) I need more than four fused outputs. Can I add FB-4 modules?
Yes. The FB-4 is stackable in that sense: four modules off one 600 series supply give you sixteen individually fused outputs total. Each added module brings its own four 2 amp fused circuits with their own switches.
4) Is the FB-4 a power supply or does it need one?
It is a distribution board, not a source. The FB-4 has no transformer or battery charger of its own; it takes the primary DC output from an SDC 600 series power supply and divides it. You still need to order the supply that feeds it.
5) Will the FB-4 fit inside my existing power supply enclosure?
The board footprint is 3.3 x 2 inches, which is small enough to mount in tight spaces and standard electrical enclosures. Measure the free area in your cabinet against those two numbers before you commit to an in-can mount.
6) How much current can each FB-4 output supply to a mag lock or strike?
Each of the four outputs is fuse protected at 2 amps, so size your device load under that per circuit. If a single lock draws more than 2 amps inrush or holding, put it on its own supply rather than a shared FB-4 output.
7) Is the FB-4 rated for low voltage Class 2 wiring in a commercial building?
The four outputs are Class 2, which is what inspectors look for on low voltage access control runs in commercial work. The module is a commercial-duty device, not a residential accessory.
8) Why use a fused distribution module instead of just splicing several locks onto one supply output?
A shared splice means one shorted strike takes down every device on that circuit. With the FB-4, each of the four outputs is separately fused at 2 amps, so a fault isolates to that one leg. The per-output switches and LEDs also let a tech troubleshoot a single opening without shutting down the whole system, which is the difference that matters on a multi-door job.
