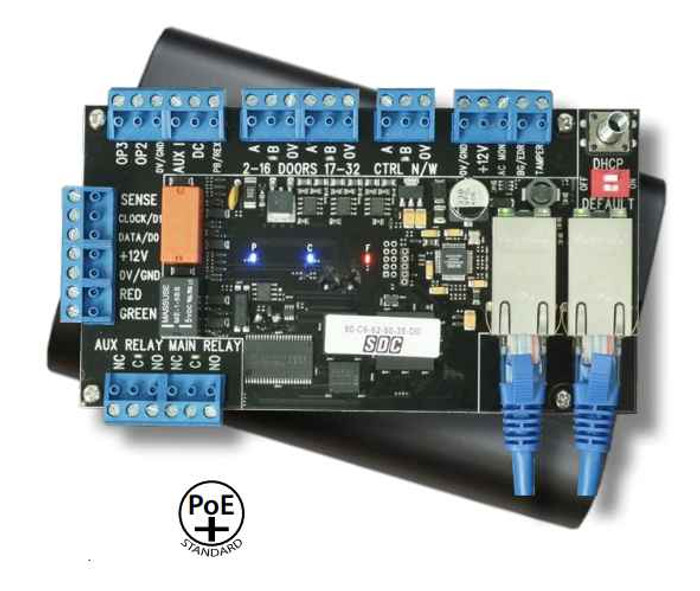

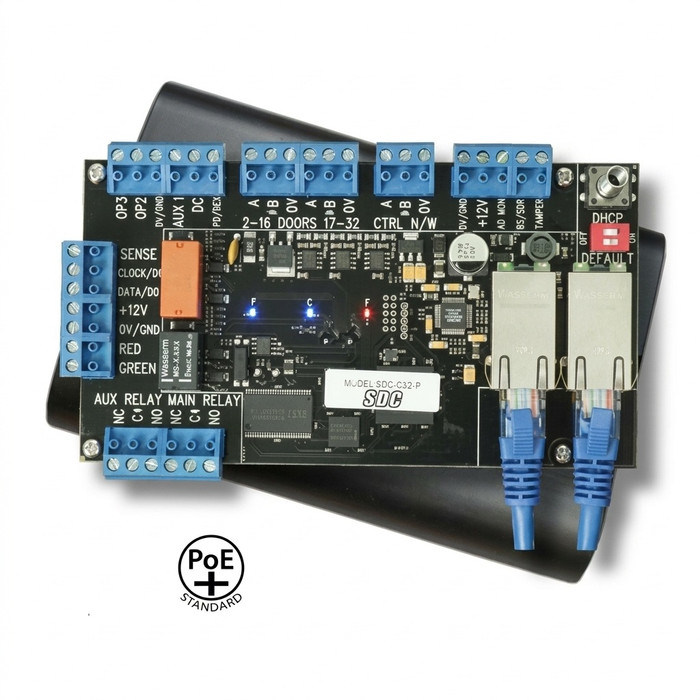

SDC IPD Series - IP-Based Access Controllers

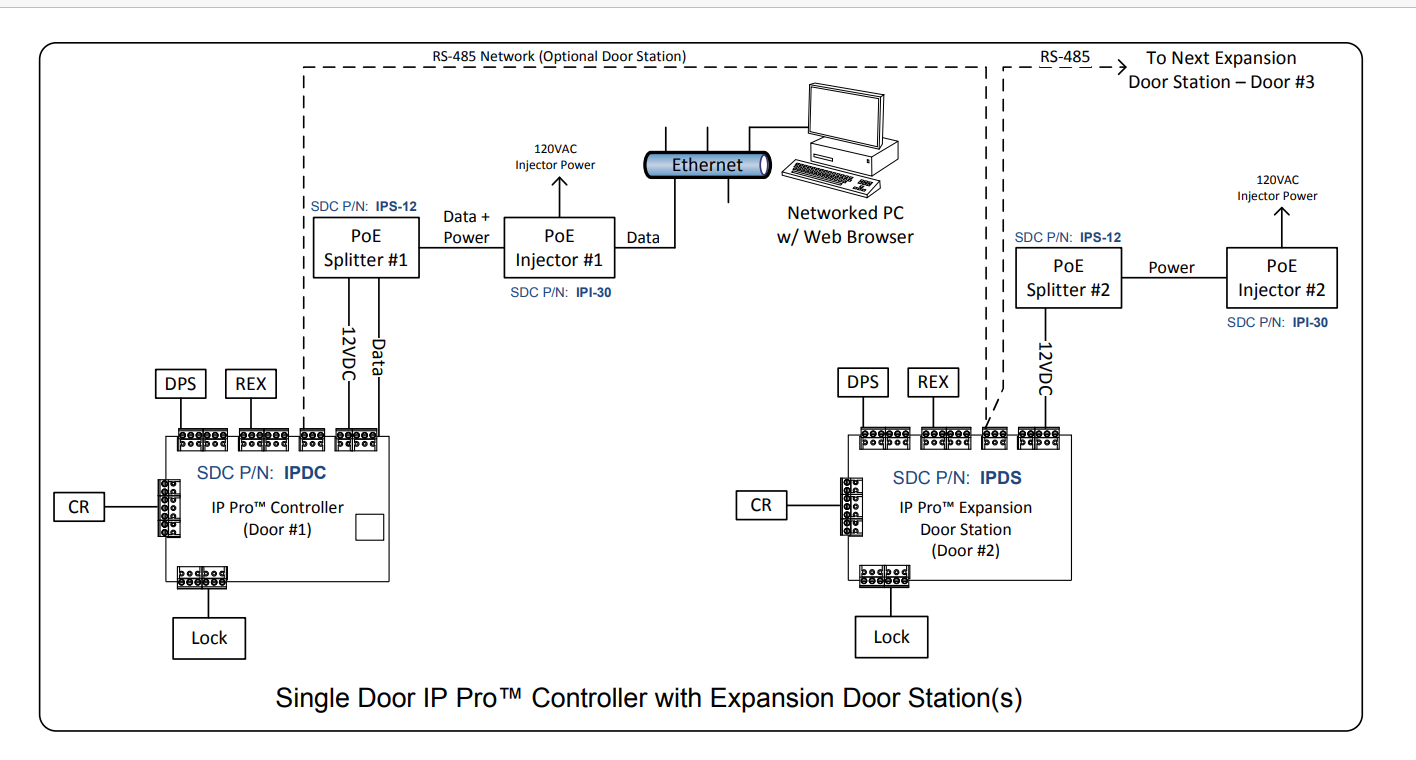

SDC IPPro® IPD series IP-based single door access controllers come with two ethernet ports for interfacing with an additional IP device. They allow expansion from one standalone door up to a 100-door “grid.” The additional ethernet port allows IT departments to save a port when connecting an extra door at the server. Installers can eliminate a long cable run when connecting an additional IP device.

Every IPPro® controller comes with secure, built-in software to manage up to 32 doors from any standard web browser to allow for real-time monitoring, user management and audit trail up to 5,000 events. Or, download our FREE PLUS PC-Client software to control up to 100 doors from a single PC. IPPro® PLUS is a role-based access control software suite with different interface modules.

STANDARD FEATURES

• Controls one door directly, with unlimited
expansion capabilities
• TCP/IP communications (100/10Mbps)
• DHCP or Static IP addresses
• Password protected built-in web server or
FREE downloadable ‘Grid’ software
• Two ethernet ports
• Live transaction monitoring
• Entry/exit wiegand reader capability
• Reader short circuit protection
• Compliant with PoE+ standard
• 60,000 users (up to 2 credentials/ user)
• Multiple credential modes & batch card
enrollment
• 250 time zones & 1,000 user/door groups
• Holiday support, scheduled events &
temporary users
• Audit Trail – up to 5,000 events from onboard storage, unlimited events w/ PLUS
• Visual status indicators (LED)
• Anti-tailgating & anti-passback
• Supports Explorer, Firefox & Chrome
• Door position status (DPS)
• Request-to-exit (REX)
• Programmable auxiliary input
• Lock relay & auxiliary relay outputs
• Two programmable solid-state Outputs
• Anti-tamper input
• Database backup support
• Enclousre included

RESOURCES

IPPro-Datasheet.pdf (sdcsecurity.com)

INSTALLATION
