SDC SureExit PSB560 Series 48"...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$439.00
$308.49

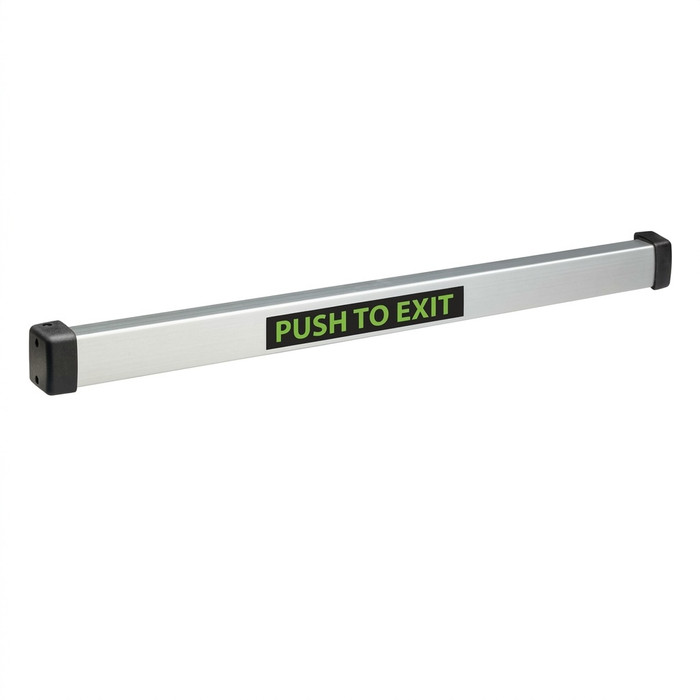

SDC PSB560 Series - 48" SureExit Pressure Sense Bars

SDC SureExit PSB560 Series 48" Pressure Sense Bar with Tri-Failsafe Technology

(No reviews yet) Write a Review

Model: PSB560V48
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$439.00
$308.49
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

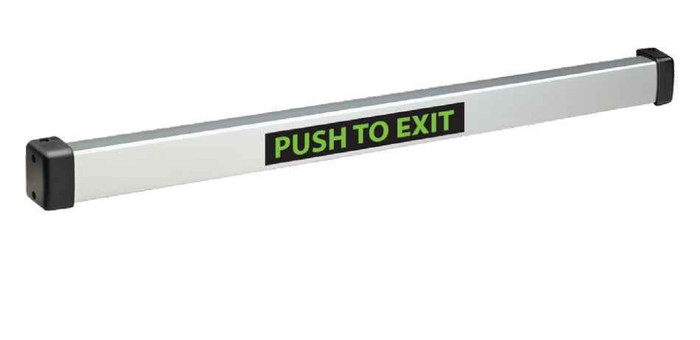

SDC SureExit PSB560 Series 48" Pressure Sense Bar with Tri-Failsafe Technology

Advanced Electromagnetic Lock Release System for Code-Compliant Egress

The SDC SureExit PSB560 Series 48" pressure sense bar delivers reliable electromagnetic door lock release for access-controlled doors without requiring prior operational knowledge. This professional-grade exit device features patented tri-failsafe technology with dual 12/24VDC operation, heavy-duty aluminum construction, and 1-7/8" low-profile projection suitable for narrow or wide stile applications. UL 294 and UL 1034 certified for commercial access control systems.

Professional Features & Benefits

  • 48" Door Width Compatibility: Designed for 48" doors with narrow or wide stile configurations for versatile installation options.
  • Tri-Failsafe Technology: Patented design with two redundant solid state pressure sensors plus automatic emergency micro switch ensures reliable egress even if electronics fail.
  • Dual Voltage Operation: Auto-sensing 12/24VDC power with 115 mA maximum, 20 mA continuous draw for flexible system integration.
  • Heavy-Duty Aluminum Construction: All-metal mounting assembly with aluminum extrusion and metal end caps prevents malfunction from door sagging or warping.
  • Low-Profile Design: 1-7/8" projection provides narrow, unobtrusive installation while maintaining full functionality.
  • Temperature Tolerant Operation: Rated for 0 to 150°F temperature range ensuring reliable performance in various environmental conditions.
  • UL Certified Safety: UL 294 Access Control System Units and UL 1034 Burglary-Resistant Electric Locking Mechanisms certification for code compliance.
  • Complete Installation Package: Includes power transfer loop (PT-2U) and 10ft eight conductor cable for streamlined installation.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Fire Rating: No
  • PDF:SDC Full Catalog: https://zensupply.com/content/pdf/lcn/CondensedHardwareBrochure
  • Power: 115 mA Maximum 20 mA Continuous
  • Product Category: Exit Devices and Trim
  • Product Group: Exit Devices and Trim
  • Product Model: PSB560
  • Product Projection: 1-7/8"
  • Product Size: 48"
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Product Voltage: 12/24VDC
  • Series: PSB560 Series
  • Stile Type: Narrow or Wide Stile
  • Subcategory: Rim Exit Devices
  • Temperature Range: 0 to 150°F
  • Wood Door Compatible: No

Professional Applications

  • Commercial Building Security Systems
  • Healthcare Facility Access Control
  • Educational Institution Safety Systems
  • Retail Loss Prevention
  • Industrial Facility Monitoring
  • Emergency Exit Compliance
  • Government and Municipal Buildings

Tri-Failsafe Protection Design

The patented SureExit tri-failsafe system provides unequaled safety with two redundant solid state pressure sensors that immediately release electromagnetic door locks when activated. A third redundant micro switch automatically activates if both sensors or electronics fail, ensuring continuous door operation without emergency service interruption. This automatic emergency release requires no prior knowledge to locate or operate.

Why Choose SDC Quality?

SDC SureExit pressure sense technology delivers professional-grade reliability with heavy-duty aluminum construction and all-metal mounting assembly designed for high-traffic commercial applications. UL 294 and UL 1034 certifications ensure code compliance and safety standards. The rigid construction with no moving parts prevents malfunction and provides quick, quiet operation rated for 0 to 150°F temperature range.

Manufacturer Resources

SDC Full Catalog

Product Specs

Series:
PSB560 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Rim Exit Devices
Commercial/Residential:
Commercial
Temperature Range:
0 to 150F
Power:
115 mA Maximum 20 mA Continuous
Stile Type:
Narrow or Wide Stile
Wood Door Compatible:
No
Product Model:
PSB560
Product Voltage:
12/24VDC
Product Size:
48"
Fire Rating:
No
Product Projection:
1-7/8"
Product Category:
Exit Devices and Trim
Department:
Door Hardware

SDC PSB560V48 – Frequently Asked Questions

1) Does the SDC PSB560 pressure sense bar latch the door, or do I still need a lock?
It does not latch anything. The PSB560 SureExit is a pressure sense bar that signals release of an electromagnetic lock when someone pushes on it, so the door itself has to be secured by a mag lock or other electric locking device in the access control system. If you need a device with its own latchbolt into a strike, that is a mechanical panic device like the Corbin Russwin ED5200 or the TownSteel ED9700, not this bar.
2) What size door does the 48 inch SureExit PSB560 go on, and will it work on a narrow stile aluminum door?
This one is the 48 inch bar, sized for 48 inch wide doors, and it mounts on either narrow or wide stile doors. Projection off the face is 1-7/8 inches, which keeps it tight to the door on a narrow stile storefront leaf. It is not rated for wood doors.
3) Do I need a 12V or a 24V power supply for the SDC PSB560?
Either works. The bar auto-senses 12/24VDC, so you can drop it onto whichever supply the mag lock and access control panel already run. Current draw is 20 mA continuous with a 115 mA maximum, so it adds almost nothing to the supply budget.
4) What happens if the electronics in the pressure bar fail while someone is trying to get out?
The SureExit design is tri-failsafe: two redundant solid state pressure sensors handle normal egress, and a third emergency micro switch activates automatically if both sensors or the electronics fail. Push on the bar and the mag lock releases either way, with no special knowledge needed to operate it.
5) I need an exit device on a fire-rated 48 inch door. Can I use the SDC PSB560?
No. The SDC PSB560 pressure sense bar is not fire rated. For a fire-rated 48 inch opening, the Marks USA M9900F 48 inch rim panic exit device is fire rated and exit only with a panic protector end cap. Other fire-rated rim options include the Dexter ED1000 Series Grade 1 fire rated rim exit device, the Orca OED85 36 inch fire rated rim device, and the Arrow FS1250 32 inch fire rated rim device.
6) What is the closest equivalent to the SDC PSB560 pressure sense bar from another brand?
The nearest peer is the Securitron EMB electromechanical exit bar, which is also an electrified exit bar rather than a mechanical latching device. The SDC PSB560 is a 48 inch pressure sense bar at 1-7/8 inch projection running 12/24VDC auto-sensing power and releasing an electromagnetic lock through two redundant solid state pressure sensors plus a third emergency micro switch. The Securitron EMB is listed for a 2-1/4 inch door thickness. Both occupy the same role on an access-controlled opening where the bar signals a release rather than retracting a latch.
7) The opening is a 48 inch door with no access control. What mechanical rim device covers that width instead of the SDC PSB560?
The SDC PSB560 needs 12/24VDC power because it releases an electromagnetic lock rather than latching mechanically. For a 48 inch door with no electrified hardware, the Cal-Royal 5500 48 inch rim exit device with push bar, the Cal-Royal A9820 48 inch exit-only rim device, the Corbin Russwin ED3200 48 inch crossbar rim device, the DORMA 9300 48 inch wide stile rim device, and the CRL Jackson 1095 48 inch crossbar rim panic device all cover that width mechanically.
8) Will the SDC PSB560 work on a wood door, and what should I use if not?
The SDC PSB560 pressure sense bar is not wood door compatible. Among rim exit devices, the Adams Rite 8700 Series 30 inch narrow stile rim exit device and the Adams Rite 3700 Series 30 inch fire-rated narrow stile rim exit device are both listed as wood door compatible, the 3700 additionally carrying a fire rating. Both are Grade 1 narrow stile devices with starwheel interlocking.
9) Is an electrified rim exit device like the Dormakaba E2103 the same thing as the SDC PSB560?
No. The Dormakaba E2103 is a 36 inch electrified rim exit device supplied with 4908A trim in an 08 classroom function, so it still latches into a strike and the electrification controls the outside trim. The SDC PSB560 has no latch at all: it is a 48 inch pressure sense bar with a 1-7/8 inch projection that signals release of a separate electromagnetic lock, using two redundant pressure sensors plus an emergency micro switch. Choose the E2103 when the door is secured by its own latch and the PSB560 when the door is held by a maglock.
10) Is anything included with the PSB560 to get power across to the door?
Yes, it ships with a PT-2U power transfer loop and a 10 foot eight conductor cable, so the run from the frame to the bar is covered. You still supply the mag lock, the power supply, and whatever access control device releases the door on the entry side.
11) Does the SDC PSB560 meet UL requirements for an access controlled egress door?
The bar is certified to UL 294 for access control system units and UL 1034 for burglary-resistant electric locking mechanisms. Those are the two listings a specifier generally looks for on a mag lock release device. It carries no fire rating, so keep it off fire rated openings.
12) How is a pressure sense bar different from a regular panic bar with a touchpad?
A mechanical panic device like the BEST Precision 2101 or the Detex 10 Advantex retracts a latch into a strike, so the door is locked by the device itself. The PSB560 has no latch: pushing it electrically releases a mag lock. Choose the pressure bar when the opening is already on access control with an electromagnetic lock and you need a code-compliant egress release; choose a mechanical rim device when the door needs mechanical latching and dogging.
13) I need a Grade 1 exit device for spec. Does the SDC PSB560 meet that, or should I look elsewhere?
The SDC PSB560 is a UL 294 and UL 1034 certified pressure sense bar for electromagnetic lock release rather than an ANSI/BHMA graded latching panic device. If the drawing calls for a Grade 1 rim exit device, peers carrying Grade 1 include the Detex 10 Advantex 36 inch wide stile extra heavy duty rim device, the Corbin Russwin ED5200 36 inch rim device, the TownSteel ED9700 36 inch heavy duty wide stile device, and the Hager 4701 36 inch rim device with Grade 1 BHMA certification.
14) My storefront is a narrow stile aluminum door. Does the SDC PSB560 fit, or do I need a narrow stile device?
The SDC PSB560 is listed for narrow or wide stile applications, so it suits an aluminum storefront stile at its 1-7/8 inch projection. If the opening instead needs a mechanical latching device on a narrow stile, the Corbin Russwin ED4200 36 inch narrow stile Grade 1 rim device, the TownSteel ED3700 36 inch Grade 1 narrow stile device, the Falcon 1590EO 42 inch narrow stile exit only device, and the Adams Rite 8800 Series 30 inch narrow stile device for 1-3/4 to 2-1/4 inch doors all serve narrow stile openings.
15) What is a simpler option than the SDC PSB560 if I just need a push pad on a 48 inch door?
The SDC PSB560 carries electronics, drawing 115 mA maximum and 20 mA continuous at 12/24VDC for maglock release. If the requirement is only a mechanical push bar across a 48 inch leaf, the Cal-Royal 5500 48 inch rim device with push bar is a Grade 2 heavy duty unit, and the Sargent 3828 is a Grade 1 reversible standard push bar rim device for 48 inch doors. Both latch mechanically and need no power run to the door.
16) Will the SDC PSB560 hold up on an exterior door in a cold climate or a hot loading dock?
Operating range is 0 to 150 degrees F. Construction is aluminum extrusion with metal end caps and an all-metal mounting assembly, and there are no moving linkages, so a door that sags or warps does not throw the bar out of operation.
17) What finishes does the 48 inch SureExit bar come in?
Four: 629 bright stainless, 630 satin stainless, 628 dull aluminum, and 335 dull black. On a storefront run, 628 is the usual match to clear anodized aluminum and 335 to dark bronze or black anodized frames.
