SECURITRON BPSS BOXED SOLAR POWER SUPPLY
Securitron®'s BPSS is capable of powering most any single point access control device and fail secure lock (intermittent duty only) using sustainable solar and battery operated power. The BPSS is the only out-of-the-box solution specifically designed for remote electric lock control. Select the BPSS-10 or BPSS-20 (10 or 20 charging Watts respectively) based on the solar activity in the area/region where installed.
FEATURES & BENEFITS
Product Features
- Complete out of the box Solar Power System designed specifically for use with Access Control Products
- Remote electronic locking of gates and out buildings
- Works with most fail secure electric locks
- Works with most keypad or card readers
- Available in 10W and 20W versions
- Outdoor Operation
- 100% Solid State Solar Controller
- Low voltage battery monitor to protect batteries from deep discharge
- Includes mounting brackets for power supply enclosure and solar panel
- Optional mounting brackets available to mount power supply enclosure to 3" diameter pole
- Optional solar wind kit available for high wind areas
- SecuriCare 3-year, no fault warranty
SPECIFICATIONS
Enclosure Dimensions
- Outdoor (NEMA-3R) - 12-1/2" x 13-5/8" x 4-7/16"
- Standard Enclosure Brackets: Accommodates up to 2" diameter pole/post
- Operating Temperature: -4 to +113F [-20 to +45C]
Power Supply Output
- Maximum 125mA continuous; 450mA maximum operating the locking device - intermittent duty only. Number of daily lock operations will vary due to solar activity and current draw
Solar Panels
| BPSS-10 | BPSS-20 | |
| Size | 14.5" x 12.2" x .7" | 22" x 14.2" x .7" |
| Rated Power | 10 Watts | 20 Watts |
| Panel Weight | 3.3 lbs. | 5.5 lbs. |

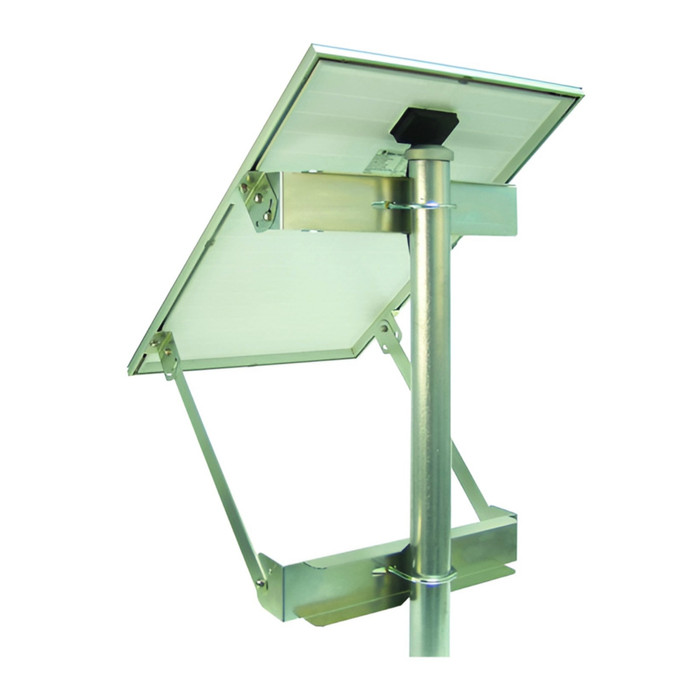

Panel Mounting Brackets
- Accommodates up to 2" diameter pole/post
- Panel(s) Operating Temperature: -40 to +185F [-40 to +85C]
- Panel(s) Type: High-efficiency photovoltaic modules using silicon nitride multicrystalline cells
Controller
- Anodized aluminum case with marine rated terminals
- 100% solid state
- Fully encapsulated in epoxy potting
- Green charging LED
- Approved for use in hazardous locations - Class 1, Division 2, Groups A, B, C, D
- Voltage Output: 14.4VDC maximum
Model
| Part # | Description |
| BPSS-10 | Solar Power Supply - 12V w/ 10W Solar Panel and 9Ah Battery |
| BPSS-20 | Solar Power Supply - 12V w/ 20W Solar Panel and 18Ah Battery |
| PMK-3 | Mounting Kit 3 in Pole for CCM Nema Enclosure |
| SPK | Solar Panel Kit - 20 Watt |
| SWK | High Wind Kit for 20W Solar Panel |
