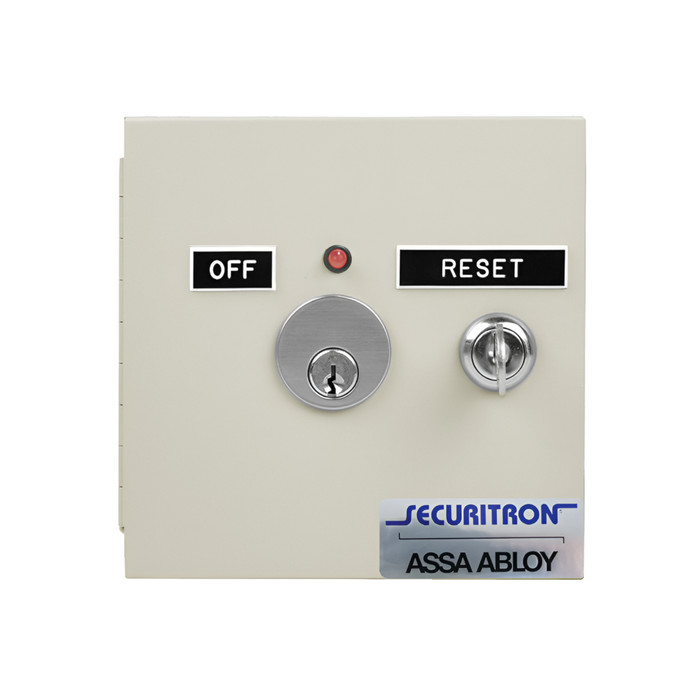

Securitron FAR Fire Alarm Reset

SECURITRON FAR FIRE ALARM RESET

The FAR module is designed to work in conjunction with the Securitron® BPS and BPSM series power supplies and a fire alarm panel (by others). Whenever the FAR receives a signal from the fire alarm it will switch off the output of the BPS/BPSM power supply. The power supply will stay in this mode until a manual reset is instituted by turning the keyswitch mounted in the face of the FAR module. This feature is required in certain jurisdictions to prevent the access control system from automatically (when the fire alarm is reset) relocking doors during an evacuation.

Provides functionality beyond a standard fire trigger relay when local code requires manual reset after a fire alarm. This self-contained unit interfaces to a fire alarm unit to cut power to devices downstream of the power supply in an alarm situation. The power stays off until the FAR’s Keyswitch is manually reset. This feature is required by some jurisdictions to prevent the unintentional re-arming of doors until the fire alarm is reset and power is restored to the access control system during an ongoing emergency.

FEATURES AND BENEFITS

Product Features

• Fire Alarm releases all locks and cuts power to all devices connected to power supply until FAR is manually reset
• Allows key-switch manual release of all locks/devices manually during tests and other emergency (non-fire) evacuations
• Simple bi-color LED status indicator on front cover - Green = On, Red = Off
• Easy to mount metal enclosure equipped with security cam lock
• Available in either 12VDC or 24VDC versions to match Securitron BPS and BPSM series power supplies
• CFAR version available to meet Canadian fire release requirements
• 5 Amp rated SPDT plunger switches

SPECIFICATIONS

• Input Voltage: 12 or 24VDC
• Operating Temperature: -4 to +122F [-20 to +50C]
• Environment: Indoor use only
• Shipping Weight: 3 lbs.

Models
