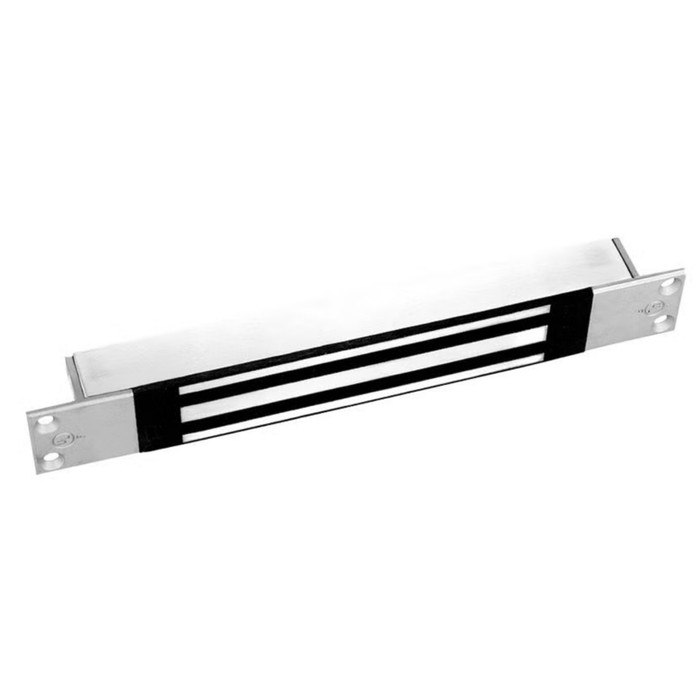

Securitron M34R Recessed Magnalock SEC-M34R

Securitron M34R Recessed Magnalock

(No reviews yet) Write a Review

Model: M34R

In Stock (leaves warehouse same day if ordered before 3pm ET)

$521.00
$365.38
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SECURITRON M34R RECESSED MAGNALOCK

Recessed Magnalock for traffic control on a sliding door. The M34R secures single sliding doors with Magnalock strength for traffic control applications within a monitored perimeter. The recessed design on the edge of the door that comes against the frame when the door is closed conceals the maglock
for hidden protection that blends with the aesthetics of the opening. Ideal on automatic single sliding doors or on sliding doors for patios, storage closets and more.

500 lbs. holding force Magnalock with automatic dual voltage for mounting in sliding doors. This results in an aesthetically appealing finished appearance. Recommended for applications where physical assault on the door is not expected, like access controlled interior rooms and secure areas within buildings.



FEATURES & BENEFITS

Product Features

  • Patented instant release circuit - no residual magnetism
  • Recessed for aesthetically appealing finish
  • Fully sealed electronics - tamper proof and weatherproof
  • Architectural brushed stainless steel finish (US32D/630)
  • All ferrous metal surfaces plated to MIL specification
  • Ten feet [3.05m] of jacketed, stranded conductor
  • Automatic dual voltage - no field adjustment required
  • Lock options include BondSTAT magnetic bond sensor and integrated door position switch
  • UL Listed
  • MagnaCare® lifetime replacement, no fault warranty



SPECIFICATIONS

  • Holding Force: 500 lbs. [227 kg]
  • Current Draw and Voltage: 320mA at 12VDC; 170mA at 24VDC
  • Operating Temperature: -40 to +140F [-40 to +60C]
  • Shipping Weight: 5 lbs.



Models

Part # Description
M34R M34 - Recessed
M34RB M34 - Recessed, MBS
M34RBD M34 - Recessed, MBS, DPS
M34RD M34 - Recessed, DPS











CERTIFICATE & LISTING

  • UL/cUL
  • UL 294 Recognized Component
  • CAN4-S104, CAN/ULC-S533 Listed
  • CSFM- California State Fire Marshal Approved
  • CE:EN 50081-1(92), EN 61000-6-2(99)Approved



DOWNLOAD & RESOURCES

Manufacturer Resources

Product Specs

Series:
M34R Series
Subcategory:
Specialty Magnets
Holding Force:
500
Warranty:
Lifetime Replacement
Weather Resistant:
Yes
Product Group:
Electronic Access Controls
Product Subgroup:
Electromagnetic Locks
Product Type:
Mortise Mounted
Commercial/Residential:
Commercial
Electronic:
Yes
Product Model:
SEC-M34R
Product Voltage:
12/24VDC
Fire Rating:
Yes
Product Height:
1-1/8"
Product Category:
Electronic Access Controls
Product Substrate:
Metal
Product Width:
1-1/2"
Department:
Door Hardware
Product Depth:
1/2"

Securitron M34R – Frequently Asked Questions

1) Will the Securitron M34R work on a swinging door, or is it only for sliding doors?
Sliding doors only. The M34R Recessed Magnalock mortises into the edge of the door that meets the frame when the door closes, so the magnet and armature come together as the leaf slides shut. That geometry doesn't work on a swinging leaf, where the door face rotates away from the header. For a swing door you want a surface or concealed maglock built for a header mount, not the M34R.
2) Do I need to order a 12V or a 24V version of the M34R Magnalock?
Neither, it's one part number for both. The M34R runs automatic dual voltage at 12/24VDC with no jumper to set and no field adjustment. Current draw is 320mA at 12VDC and 170mA at 24VDC, so size your power supply off whichever rail you're feeding it from. On a long wire run, 24V is the easier one to hold up because the draw is roughly half.
3) What is the difference between the M34R, M34RB, M34RBD and M34RD?
Monitoring, and nothing else. M34R is the plain lock with no monitoring. M34RB adds BondSTAT, the magnetic bond sensor that tells your panel the magnet is actually holding the armature rather than just energized. M34RD adds a door position switch, which reports whether the door is closed. M34RBD carries both. Holding force, voltage, and the mortise prep are the same across all four, so pick on what your access control head end needs to see.
4) Does the recessed Magnalock hold the door locked when the power drops?
No. Like every electromagnetic lock, the M34R holds only while energized, so the door releases the instant power is removed, whether that's a fire alarm interface, an egress device, or a building outage. That's the failsafe behavior codes generally want on an egress path, but it means the M34R gives you no security during a power loss. If you need the opening to stay locked without power, you need a mechanical lock, not a maglock.
5) Should I order BondSTAT or just a door position switch on the recessed Magnalock?
They answer two different questions. A door position switch tells you the door is closed. BondSTAT is a magnetic bond sensor that confirms the magnet has actually locked onto the armature, which catches a door that is shut but not securely held, misaligned, or on a magnet that's lost bond. Alarm monitoring and anything audited usually wants BondSTAT. Simple traffic control on a closet or stock room is fine with position switch alone, or with no monitoring at all. Order M34RBD if you want both reported back.
6) Can a Securitron M34R be used on an exterior or unheated sliding door?
Yes. The M34R's electronics are fully sealed, which makes it tamper proof and weatherproof, and all ferrous metal surfaces are plated to MIL specification. Operating range is -40 to +140F [-40 to +60C], so an unheated warehouse, a patio slider, or a loading area is within spec. The finish is architectural brushed stainless steel, US32D/630.
7) Will the M34R stick or drag the slider after it releases?
No. A patented instant release circuit drops the field with no residual magnetism left in the armature, so the leaf is free the moment the relay opens. That matters more on a sliding door than a swinger, because an automatic slide operator will fight a magnet that's still tacky and you'll see the door hesitate at the start of every open cycle.
8) Can I use one M34R on a pair of sliding doors or a bi-parting automatic slider?
One M34R secures one leaf. Securitron specifies it for single sliding doors, and the magnet mortises into the single edge that meets the frame. A bi-parting automatic slider has two leaves meeting each other in the middle, so there is no frame edge for the second half to lock against, and you would need a lock strategy for each leaf. Confirm you're on a single-slide opening before you cut the prep.
9) Will the M34R Magnalock be visible on the door once it's installed?
No. The whole point of the recessed design is that the lock buries in the door edge that meets the frame, so with the door closed nothing shows on either face. Property managers putting access control on patio sliders, glass fronts, or a storefront interior get the control without a black box on the header. The exposed metal that is visible during service is architectural brushed stainless, US32D/630.
