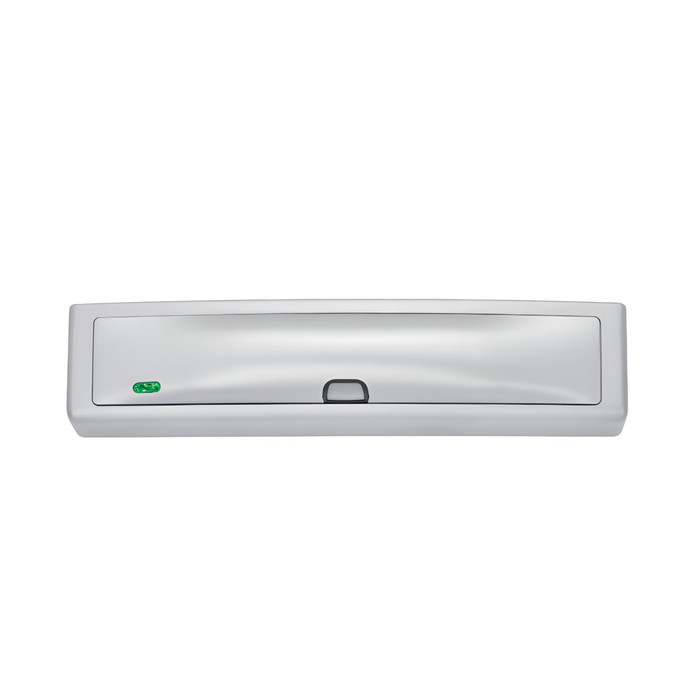

Securitron M680E EcoMag Sustainable Magnalock SEC-M680E

Securitron M680E EcoMag Sustainable Magnalock

(No reviews yet) Write a Review

Model: M680E 628
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$811.00
$553.56
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SECURITRON M680E ECOMAG SUSTAINABLE MAGNALOCK

The same unsurpassed intelligence, style and convenience as the previous M680 series, but with 80% reduction in energy consumption. The Securitron M680E is intelligent, with built-in door prop sensing allowing the magnet to de-energize the coil when the door is held open for extended periods. The Securitron M680EBD offers built-in smart voltage sensing, integrated patented BondSTAT, tamper sensor as well as door position status monitoring. The aesthetics and design finishes of the EcoMag are refined enough for the most discriminating designer openings. It also offers the fastest, easiest, most secure installation of any bracket mount maglock with an updated strike plate mounting template. The optional integrated request to exit (REX) provides optimum coverage for detecting an approaching person so the door unlocks for egress.

The M680E with EcoMag® technology from Securitron® delivers the same unsurpassed intelligence, style and convenience as the previous M680 series, but with 80% reduction in energy consumption.

Intelligent. Optional door prop sensing allows the magnet to de-energize the coil when the door is held open for extended periods, dropping the power draw as low as 20mA at 12V.

Versatile. Optional integrated PIR Request to Exit is an available option for this new magnalock, providing the flexibility to customize as needed.

Energy Efficient. With up to 80% decreased energy consumption, and biodegradable packaging insert, the Securitron M680E is the most energy efficient magnalock available today.

Easy installation. Updated strike plate mounting template makes for faster, easier installation.



FEATURES & BENEFITS

Product Features

  • Strike plate mounting template provides the easiest install for out-swing doors
  • LED Indicator shows the lock is secure, open, or has an incomplete bond
  • Tamper Switch sends an alarm output if the cover is removed and is selectable to NO or NC
  • Optional integrated BondSTAT and integrated Door Position Switch
  • Autosensing dual voltage with microprocessor technology
  • Adjustable automatic relock timer (0 to 30 seconds)
  • Energy efficient, low power usage
  • Size optimized for use with door closers
  • MagnaCare® lifetime replacement, no fault warranty



Product Options

Securitron M680EBD: The Securitron M680EBD offers built-in smart voltage sensing microprocessor controls Securitron’s integrated patented BondSTAT, tamper sensor as well as door position status monitoring. The aesthetics of the M680EBD are refined enough for the most discriminating designer openings. It also offers the fastest, easiest, most secure installation of any bracket mount maglock.

Securitron M680EBDX: Everything included in the Securitron M680EBD model plus integrated request to exit (REX) provides optimum coverage for detecting an approaching person so the door unlocks for egress. The configurability of the passive infrared (PIR) beam allows the detection area to be tailored to your environment, for better accuracy.



SPECIFICATIONS

  • Holding Force: 1200 lbs [544kg]



Dimensions

  • Magnalock: 11-1/2"L x 2-9/16"D x 2-1/2"
  • Strike: 10-7/8"L x 9/16"D x 2"H



Maglock Average Power Draw

  • 113mA (±10%) at 12VDC
  • 52mA (±10%) at 24VDC



Maglock Maximum Power Draw

  • 515mA(±10%) at 12VDC
  • 290mA (±10%) at 24VDC



REX Power*

  • +25mA (±10%) at 12VDC
  • +10mA (±10%) at 24VDC
  • *A separate continuous power input is required to power the REX



Operating Temperature

  • +32 to +110F [0 to +43C]
  • Indoor use only



Finishes

  • 628 - Satin Aluminum Clear
  • 600 - Paintable Primer Gray Finish
  • 605 - Bright Brass
  • 606 - Satin Brass
  • 612 - Satin Bronze
  • 613E – Dark Oxidized Satin Bronze
  • 629 – Bright Stainless Steel
  • 630 - Satin Stainless Steel
  • BSP – Black Suede Powder
  • WSP* - White Suede Powder



Options

  • BD - BondSTAT and Door Position Switch
  • X - Passive Infrared Request to Exit Motion Sensor



CERTIFICATIONS & LISTINGS

  • EPD - Environmental Product Declaration
  • UL 10C Fire Rated, 1 Hour
  • CAN/ULC-S104 Fire Door Conformant
  • UL 1034 Burglary-Resistant Listed
  • UL 294 Recognized Component
  • ANSI/BHMA A156.23, Grade 2; E18501
  • California State Fire Marshal Listed



Green Circle Certifications



DOWNLOADS & RESOURCES

Manufacturer Resources

Product Specs

Series:
M680E Series
Subcategory:
Intelligent Magnalocks
Product Group:
Electronic Access Controls
Grade:
Grade 2
Sensor:
BondSTAT Lock Sensor
Holding Force:
1200
Warranty:
Lifetime Replacement
Product Subgroup:
Electromagnetic Locks
Product Type:
Surface Mounted
Commercial/Residential:
Commercial
Power:
Power over Ethernet (POE)
Electronic:
Yes
Battery Operated:
No
UL Listing Type:
1 Hour
Product Model:
SEC-M680E
Product Voltage:
12/24VDC
Product Category:
Electronic Access Controls
Product Width:
11-1/2"
Department:
Door Hardware
Product Depth:
3/4"

Securitron M680E 628 – Frequently Asked Questions

1) Will the Securitron M680E maglock work on an outswing door?
Outswing is what the M680E is built around. The strike plate mounting template is set up for the easiest install on out-swing doors, with the magnet on the frame header and the armature on the door. The body measures 11-1/2"L x 2-9/16"D x 2-1/2" and the strike 10-7/8"L x 9/16"D x 2"H, and the housing is sized to clear a surface door closer, so you can mount it on an opening that already has one without fighting the closer arm.
2) Can I put a Securitron M680E magnetic lock on a 1 hour fire rated door?
Yes. The M680E EcoMag is UL 10C Fire Rated for 1 hour and conformant to CAN/ULC-S104 for fire doors, so it is listed for use on a rated opening. It is also UL 1034 Burglary-Resistant Listed, UL 294 Recognized Component, ANSI/BHMA A156.23 Grade 2 (E18501), and California State Fire Marshal Listed. Note it is rated for indoor use only, +32 to +110F, so it is not a fire exit that sees weather.
3) How much holding force does the Securitron M680E magnalock have, and is that enough for a main entrance?
1200 lbs (544 kg) of holding force. That is the standard full-size maglock rating used on commercial perimeter and stairwell openings, and it is paired here with ANSI/BHMA A156.23 Grade 2 and UL 1034 burglary-resistant listing. For an interior office or closet door where 1200 lbs is more than the opening needs, Securitron's M380E is the smaller EcoMag in the same family.
4) Does the Securitron M680E maglock run on 12V or 24V, and do I need to set a jumper?
Both, with nothing to set. The M680E is autosensing dual voltage at 12/24VDC using microprocessor controls, so the same lock drops onto either supply. Sizing your power supply: average draw is 113mA (+/-10%) at 12VDC or 52mA at 24VDC, with maximum draw of 515mA at 12VDC or 290mA at 24VDC. If you order the BDX with the integrated REX, add 25mA at 12VDC or 10mA at 24VDC, and run the REX from a separate continuous power input, it is not powered off the switched lock feed.
5) Do I still need a separate motion sensor for egress if I install a Securitron M680E?
Not if you order the BDX. The M680EBDX has the request to exit PIR built into the lock housing, covering the approach so the door unlocks as someone walks up, and the beam pattern is adjustable to suit the space. That removes the ceiling or wall mounted REX sensor and its separate wiring run. Two things to plan for: the REX needs its own continuous power input, and it adds 25mA at 12VDC or 10mA at 24VDC to your supply load. Order the plain M680E or the BD only if egress is being handled by another device.
6) Can a Securitron M680E maglock be mounted outside or in an unheated garage?
No. The M680E EcoMag is rated for indoor use only, with an operating temperature range of +32 to +110F (0 to +43C). An exterior gate, an unconditioned loading dock, or a parking structure entry that swings below freezing is outside that range and calls for an outdoor-rated maglock instead. On a covered interior vestibule door that stays within the range, it is fine.
7) I'm replacing an older Securitron M680 maglock. Will the M680E go back in the same place?
The M680E is the direct successor to the M680 series, carrying the same 1200 lb holding force and the same intelligence and finish range, with the energy consumption cut by up to 80 percent. The mounting has been updated, though: the EcoMag uses a revised strike plate mounting template as part of the faster bracket mount install, so plan on setting the strike to the new template rather than reusing the old holes. Body dimensions are 11-1/2"L x 2-9/16"D x 2-1/2" with a 10-7/8"L x 9/16"D x 2"H strike, so check those against the header space you have.
8) How do I know the M680E magnet is actually bonded to the armature and not just powered?
That is what BondSTAT is for, and it is the reason to order the BD or BDX rather than the plain M680E. BondSTAT is a sensor in the magnet face that reports true bond, not just coil current, so a door pushed slightly out of contact reads as unsecured instead of falsely secure. The onboard LED shows secure, open, or incomplete bond right at the lock, which is what you read off the ladder during setup. The BD and BDX also carry an integrated door position switch, and every model has a tamper switch that outputs an alarm if the cover comes off, selectable normally open or normally closed.
9) Is the Securitron M680E rated for commercial buildings or is it a residential lock?
Commercial. The M680E is a commercial-grade electromagnetic lock, ANSI/BHMA A156.23 Grade 2 (E18501), UL 1034 burglary-resistant listed and UL 294 recognized as an access control component, which is the listing set specifiers and AHJs look for on institutional and multi-family openings. It is a hardwired 12/24VDC device, not battery operated, so every opening needs a power run back to a supply.
10) Does the M680E have an environmental product declaration for a LEED or green building submittal?
It does. The M680E EcoMag carries a published Environmental Product Declaration and three Green Circle certifications (20-0024, 20-0025, 20-0026), and ships with a biodegradable packaging insert. Combined with the 80 percent cut in energy consumption over the previous M680 series, that is the documentation package a sustainability-driven spec or a green distributor is asked to produce.
11) What happens to a door held by an M680E magnalock if the power goes out?
It unlocks. An electromagnetic lock is fail-safe by physics, the magnet only holds while it is energized, so a power loss or a fire alarm release drops the door open. That is why maglocks are paired with a code-compliant egress release and why the M680E is listed under UL 10C for 1 hour and CAN/ULC-S104 on fire doors rather than acting as a fail-secure latch. If you need the opening to stay latched without power, a maglock is the wrong device for it.
12) Can I set a delay so the M680E relocks by itself after someone goes through?
Yes. The M680E has an adjustable automatic relock timer with a 0 to 30 second range set at the lock, so the magnet re-energizes on its own after a valid release without the panel having to time the output. Useful on openings where the access control unlock pulse is short or where you want a consistent hold-open window across a fleet of doors.
13) What finishes does the Securitron M680E come in, and can I get one to match dark bronze storefront?
Ten finishes are offered across all three models: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze, 628 aluminum anodized, 629 bright stainless steel, 630 satin stainless steel, BSP black suede powder, WSP white suede powder, and 600 paintable primer gray. For dark bronze storefront, 613E is the match. If the opening is painted to a custom color, 600 is supplied in primer gray to be field painted. The finish choice is independent of the model, so any of the M680E, M680EBD, or M680EBDX can be had in it.
