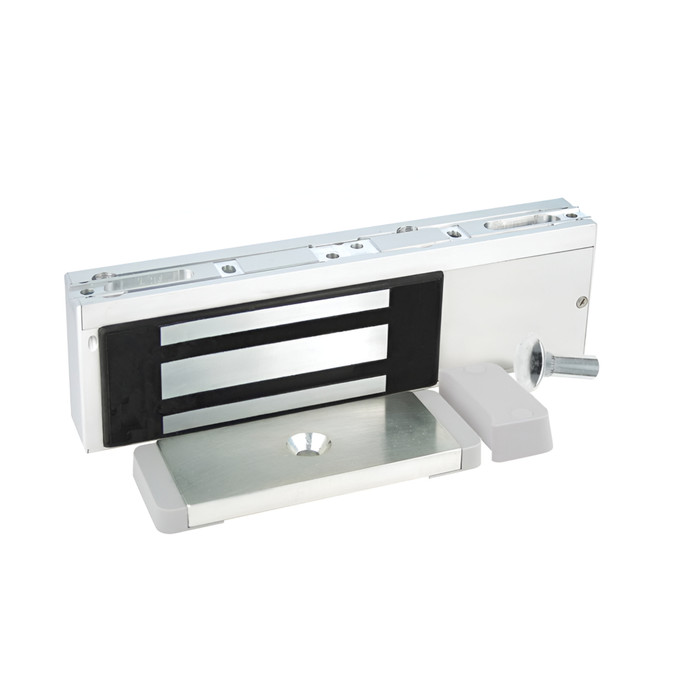

Securitron iMXDa Delayed Egress Magnalock SEC-iMXDa

Securitron iMXDa Delayed Egress Magnalock

(No reviews yet) Write a Review

Model: IMXDA

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,282.00
$1,030.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SECURITRON iMXDa DELAYED EGRESS MAGNALOCK

Integrated movement exit delay with all-in-one Magnalock. Prevent losses at emergency exits with Securitron iMXDa. An attempted exit initiates an alarm and intiates a brief delay timer before the lock releases, giving personnel time to respond before an exit occurs. Protect memory care wards, hospitals, dormitories, airports, child care facilities and retail or warehouse environments. Used on out-swing doors, installation requires no alteration or replacement of existing firerated or non-fire-rated latching hardware.

iMXDa helps prevent peril to persons/patients and property loss/theft for businesses. Applications include dementia wards, hospitals, dormitories, airports, child care facilities and retail or warehouse environments. Installation requires no alteration or replacement of existing fire-rated or non-fire-rated latching hardware. False triggering is eliminated by up to 1" of authorized door movement.



FEATURES AND BENEFITS

Product Features

  • 1200 lbs. holding force Magnalock
  • New shorter 12.5" overall length will fit most any door with a closer installed
  • Now with automatic dual voltage - no field adjustment required
  • New bracket-mounted design improves strength and installation time
  • Microprocessor monitored BondSTAT magnetic bond sensor (MBS) and integrated door position switch (DPS) standard
  • Reverse action plunger allows for adjustable alarm initiate gap from 1/8" [3.2mm] to 1" [25mm]
  • Bright LEDs indicate unit status from the secure side of the door
  • DIP switch selectable options:
  • Nuisance alarm times - 0 to 3 seconds
  • Irrevocable delay times - 15 or 30 seconds - user selectable
  • External bypass delay times - 0, 5, 10 or 15 seconds
  • Post alarm reminder - user selectable
  • Bypass expiration alarm - user selectable
  • Manual relock or delayed automatic relock (BOCA) - user selectable
  • External alarm relay isolated dry contact (1A at 24VDC)
  • External reset
  • iEXD version allows alarm initiation via an external panic device
  • Indoor use only
  • UL Listed
  • MagnaCare® lifetime replacement, no fault warranty



SPECIFICATIONS

Specification Data

  • Holding Force: 1200 lbs. [544 kg]
  • Current Draw and Voltage: 370mA max at 12VDC; 270mA max at 24VDC
  • Operating Temperature: +32 to +104F [0 to +40C]
  • Shipping Weight: 15 lbs.



Models

Part # Description
iMXDa Dual Voltage Integrated Initiation
iEXDa Dual Voltage External Initiation
iMXDa-CA15S Dual Voltage, California, 15 sec
iMXDa-CA30S Dual Voltage, California, 30 sec
iMXDaCH Dual Voltage, Chicago
iMXDaH iMXDa for HUGS Infant Protection System















CERTIFICATIONS & LISTINGS

  • UL294
  • ULC-S533 2008
  • UL/cUL FWAX.SA6635
  • CAN/ULC-S533 Listed
  • ANSI/UL 294 Listed
  • NFPA 101
  • CSFM - California State Fire Marshal Approved (IMXDA-CA only)



DOWNLOAD & RESOURCES

Manufacturer Resources

Product Specs

Series:
iMXDa Series
Subcategory:
Delayed Egress Magnalock
Product Group:
Electronic Access Controls
Holding Force:
1200
Warranty:
Lifetime Replacement
Product Subgroup:
Electromagnetic Locks
Product Type:
Delayed Egress
Commercial/Residential:
Commercial
Electronic:
Yes
Product Model:
SEC-iMXDa
Product Voltage:
12/24VDC
Fire Rating:
Yes
Product Height:
3-5/8"
Product Category:
Electronic Access Controls
Product Width:
2"
Department:
Door Hardware
Product Depth:
5/16"

Securitron IMXDA – Frequently Asked Questions

1) Will the Securitron iMXDa delayed egress maglock work on my in-swing door?
No. The iMXDa is built for out-swing doors, where the magnet mounts on the frame and the armature on the door face. On an in-swing opening you need a different mounting approach entirely. Where it does apply, the install goes on top of what is already there, no alteration or replacement of the existing latching hardware, fire-rated or not.
2) Do I have to replace my fire-rated exit hardware to add delayed egress with the iMXDa?
No, and that's the point of the design. The iMXDa mounts above the door and works alongside the existing latching hardware, fire-rated or non-fire-rated, with no alteration or replacement. Your fire door assembly and its listed hardware stay as they are.
3) Will the iMXDa fit over a door that already has a door closer on it?
Yes. The iMXDa magnet body is 12.5 inches overall, shortened specifically so it clears most closer installations at the head of the opening. The mounting bracket design also cuts install time compared with through-bolting a longer housing into a crowded header.
4) Which iMXDa model do I order for a job in California or Chicago?
Delayed egress timing is code-driven, so Securitron builds the jurisdiction into the model. Order the iMXDa-CA for California code compliant timing (the CA versions are the ones carrying California State Fire Marshal approval), and the iMXDaCH for Chicago's required timings. The standard iMXDa is the dual voltage integrated initiation unit with adjustable timing, the iEXDa takes its alarm initiation from an external panic device instead, and the iMXDaH is timed for a HUGS infant protection system.
5) What's the difference between the iMXDa and the iEXDa?
Initiation. The iMXDa senses the exit attempt itself through its own reverse action plunger, so it is a self-contained delayed egress unit. The iEXDa takes the alarm initiation signal from an external panic device instead, which is what you want when the exit device on the door is already switched and you want the push on the bar, not door movement, to start the delay timer.
6) Does the Securitron iMXDa need a 12V or 24V power supply?
Either. The iMXDa is automatic dual voltage with no field adjustment or jumper to set, so it takes 12VDC or 24VDC as wired. Size the supply for 370mA max at 12VDC or 270mA max at 24VDC per lock.
7) How do I stop the delayed egress lock from false alarming every time someone leans on the door?
The iMXDa uses a reverse action plunger with an adjustable alarm initiate gap from 1/8 inch (3.2mm) up to 1 inch (25mm), so you can allow up to a full inch of authorized door movement before anything triggers. A nuisance alarm delay of 0 to 3 seconds is also DIP switch selectable on top of that, which covers the brief push that is not really an exit attempt.
8) Is the Securitron iMXDa UL listed for delayed egress on a life safety exit?
It is UL Listed, specifically ANSI/UL 294 and CAN/ULC-S533 2008, under UL/cUL file FWAX.SA6635, and it is referenced to NFPA 101. The California versions carry California State Fire Marshal approval on top of that. That listing set is what an AHJ will ask for on a special locking arrangement at a required exit.
9) Can I mount the iMXDa on an exterior door or in an unheated warehouse?
Indoor use only. Operating range is +32 to +104F (0 to +40C), so an unconditioned warehouse that swings below freezing or above 104F is outside spec, and an exterior-exposed head is out regardless of temperature. Interior stair, ward, dorm, and stockroom exits are the intended applications.
10) For a California or Chicago code jurisdiction delayed egress opening, which delayed egress product covers the required timings?
The Securitron iMXDa is built in jurisdiction-specific models: iMXDa-CA15S and iMXDa-CA30S for California at 15 and 30 seconds, with California State Fire Marshal approval on the CA models, and iMXDaCH for Chicago required timings. The standard iMXDa is DIP switch selectable for 15 or 30 second irrevocable delay, and the whole family is ANSI/UL 294 and CAN/ULC-S533 listed and addresses NFPA 101. The Dortronics 7101 Series EDR-101 is the comparable delayed egress product as a control panel with keypad console; the iMXDa is what to specify when the approval and the timing package need to come as a factory model of the locking device itself.
11) Can I set the iMXDa to a 15 second delay instead of 30?
Yes, the irrevocable delay is user selectable at 15 or 30 seconds on the DIP switches. Also on those switches: external bypass delay of 0, 5, 10 or 15 seconds, post alarm reminder, bypass expiration alarm, and whether the lock relocks manually or automatically on a delayed timer (BOCA). For California jobs, take the delay out of the field settings and order the iMXDa-CA15S or iMXDa-CA30S, which are built to that timing.
12) Is the iMXDa strong enough for a heavily used exit door?
1200 lbs (544 kg) of holding force, which is the standard commercial figure for a single-door mag on a perimeter or emergency exit. Note it is the magnet holding a bonded armature, not a latch, so the mounting has to be solid at the header. The bracket-mounted design is what carries that load.
13) Does the iMXDa report door status back to my access control panel?
Yes. A microprocessor monitored BondSTAT magnetic bond sensor and an integrated door position switch are both standard, so you get real lock-bond status and door position without adding a separate DPS to the frame. For alarm output there is an isolated dry contact relay rated 1A at 24VDC, plus an external reset input and bright status LEDs readable from the secure side.
14) Do I need a separate delayed egress control panel with the iMXDa, or is it all in the lock?
All in the lock. The iMXDa combines the exit delay logic, the alarm, the sensing plunger, the bond sensor and the door position switch into the Magnalock itself, so one unit at the head of the door does the whole job. If your design instead calls for panel-based control, ZenSupply carries the Dortronics 7101 Series EDR-101 delayed egress control panel with keypad console, which is a separate control unit rather than an integrated lock.
15) Which delayed egress unit do I use for a maternity ward with an infant protection system?
The iMXDaH is the version timed for a HUGS infant protection system, so that is the one to specify when the tag alarm has to drive the exit delay. For general memory care and dementia ward exits, where the concern is a resident walking out rather than a tagged infant, the standard iMXDa with its own integrated initiation is the unit.
16) I need keypad authorization to release a delayed egress door - is a delayed egress maglock the right part?
For keypad-based release, the Dortronics 7101 Series EDR-101 delayed egress control panel is the part built around that, since it ships as a control panel with a keypad console. The Securitron iMXDa handles authorized release differently: it takes an external bypass with DIP-selectable bypass delay times of 0, 5, 10 or 15 seconds and an external reset input, so the credential or keypad device is wired to it rather than built into it. If the facility wants the keypad and the delay logic as one console, the EDR-101 is the shape of that; if the keypad is already part of the access control system and only needs to drive a bypass input, the iMXDa takes it directly.
