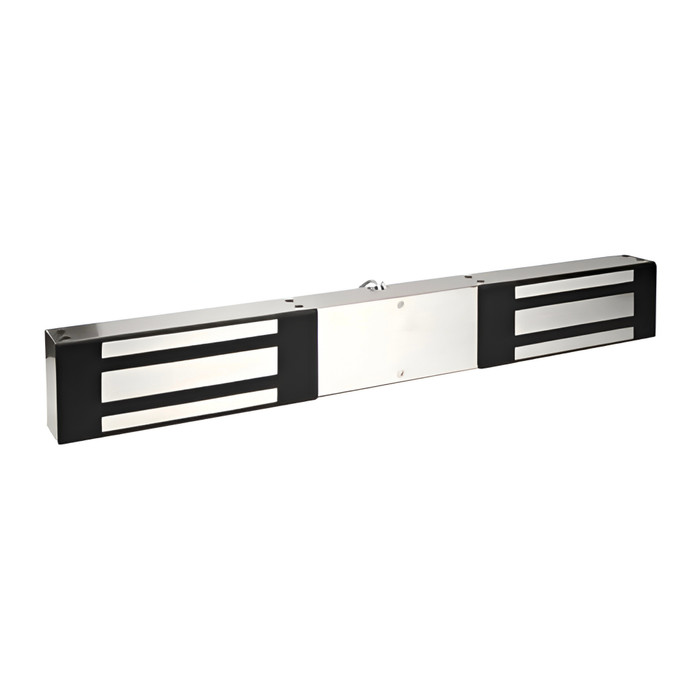

SECURITRON DM62 FORCE MAGNALOCK DOUBLE MAGNET
The versatile Securitron DM62 electromagnetic lock offers strength and ease of maintenance for interior, perimeter
and exterior access control-in a compact double magnet. This all-in-one unit is designed for double doors with no mullion. With unsurpassed durability, the Securitron DM62 will last long after most buildings wear out.
For double doors without a center mullion, the DM62 supplies two model
FEATURES AND BENEFITS
Product Features
- Patented instant release circuit - no residual magnetism
- Both locks can be controlled as one or individually
- Surface mounts easily with minimal tools
- Fully sealed electronics - tamper proof and weatherproof
- Mounted using steel machine screws into blind finishing nuts
- Architectural brushed stainless steel finish (US32D/630)
- All ferrous metal surfaces plated to MIL specification
- 36" of jacketed, stranded conductor cable for each lock
- Automatic dual voltage - no field adjustment required
- Lock options include BondSTAT magnetic bond sensor and integrated door position switch
- MagnaCare® lifetime replacement, no fault warranty
SPECIFICATIONS
- Holding Force: 1200 lbs. [544 kg] per lock
- Current Draw and Voltage: 250mA at 12VDC; 150mA at 24VDC per lock
- Operating Temperature: -40 to +140F [-40 to +60C]
- Shipping Weight: 16 lbs.
Models
| Part # | Description |
| DM62 | M62 [Double] - 12/24VDC |
| DM62B | M62 [Double] - 12/24VDC, MBS |
| DM62BD | M62 [Double] - 12/24VDC, MBS, DPS |
| DM62B-OS | M62 [Double] - 12/24VDC, MBS w/ Offset Strike |
| DM62D | M62 [Double] - 12/24VDC, DPS |
| DM62-OS | M62 [Double] - 12/24VDC w/ Offset Strike |
| ASCWB-DM62CL | Alum 1-1/2" Spacer - Concrete/Wood Bracket, DM62, Clear |
NOTE: A pair of Offset Strikes may be required for proper installation of the DM62 in aluminum frame door applications.
CERTIFICATE & LISTING
- UL 10C Listed
- CAN4-S104, CAN/ ULC-S533 Listed
- ANSI/BHMA A156.23, Grade 2; E08511-1000
- CSFM- California State Fire Marshal Approved
DOWNLOAD AND RESOURCES
Manufacturer Resources
Product Specs
- Series:
- DM62 Series
- Subcategory:
- Durable Magnalocks
- Product Group:
- Electronic Access Controls
- Grade:
- Grade 2
- Holding Force:
- 1200
- Warranty:
- Lifetime Replacement
- Weather Resistant:
- Yes
- Product Subgroup:
- Electromagnetic Locks
- Product Type:
- Surface Mounted
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Product Model:
- SEC-DM62
- Product Voltage:
- 12/24VDC
- Fire Rating:
- Yes
- Product Height:
- 3"
- Product Category:
- Electronic Access Controls
- Product Width:
- 1-3/4"
- Department:
- Door Hardware
- Product Depth:
- 1/2"
Securitron DM62-OS – Frequently Asked Questions
1) Will the Securitron DM62 work on a pair of doors with no center mullion?
That is exactly what the DM62 is built for. It is a single double-magnet Magnalock assembly that mounts across the head of a pair of doors with no mullion, putting one magnet over each leaf. Each of the two locks holds 1200 lbs, and the pair can be switched together as one output or wired and controlled individually if you want one leaf to stay secure while the other releases.
2) Do I need offset strikes for a Securitron DM62 on aluminum storefront doors?
Often, yes. On aluminum frame doors the strike plate frequently cannot sit flush on the top rail, and Securitron notes a pair of Offset Strikes may be required for proper installation in aluminum frame applications. Order the DM62-OS (no monitoring) or DM62B-OS (with BondSTAT) to get the offset strikes with the lock rather than sourcing them separately.
3) What power supply do I need for a DM62 double maglock, and how much current does it draw?
The DM62 is automatic dual voltage, 12 or 24VDC, with no jumpers or field adjustment. Each lock draws 250mA at 12VDC or 150mA at 24VDC, so size the supply for both: 500mA total at 12V, 300mA total at 24V, plus whatever your access control and rex devices pull. Being a maglock it is fail safe, so it unlocks on power loss and typically needs a supply with battery backup tied to the fire alarm.
4) Which DM62 model do I order if I need to monitor the doors from my access control panel?
Two different monitoring options, and they answer different questions. BondSTAT is a magnetic bond sensor that tells you the armature is actually pulled tight against the magnet, which is what you want if you need proof the opening is genuinely locked. A door position switch only tells you the door is closed. DM62B gives you BondSTAT, DM62D gives you DPS, and DM62BD gives you both on each lock. If you need no monitoring at all, the plain DM62 is the one.
5) Can a Securitron DM62 be used on a fire rated pair of doors?
Yes. The DM62 is fire rated and UL 10C Listed, and it also carries CAN4-S104 and CAN/ULC-S533 listings plus California State Fire Marshal approval. It meets ANSI/BHMA A156.23 Grade 2. Confirm the release scheme for your jurisdiction, since a maglock on an egress door has to drop on fire alarm.
6) Can the DM62 maglock go on an exterior door or a gate exposed to weather?
It can. The electronics are fully sealed, making the unit tamper proof and weatherproof, all ferrous surfaces are plated to MIL specification, and the operating range runs from -40F to +140F (-40C to +60C). Securitron rates it for interior, perimeter and exterior access control.
7) How does the DM62 mount, and is there a bracket for a concrete or wood header?
Surface mount, with minimal tools. The lock body fastens with steel machine screws into blind finishing nuts, and each lock ships with 36 inches of jacketed stranded conductor cable to reach your junction point. For headers that are not standard hollow metal or aluminum, Securitron offers the ASCWB-DM62CL, a clear anodized aluminum 1-1/2 inch spacer and concrete/wood bracket made for the DM62.
8) Will a Securitron DM62 leave the doors sticking after it releases?
No. The DM62 uses Securitron's patented instant release circuit, which eliminates residual magnetism, so the armature lets go cleanly the moment power drops instead of the doors clinging for a second. That matters on an egress pair where a person is pushing through as the alarm drops the lock.
9) What finish is the DM62 Magnalock, and will it match other door hardware in the building?
Architectural brushed stainless steel, US32D/630. That is the standard commercial satin stainless finish, so it sits alongside 630 exit devices, pulls and closers without looking out of place.
