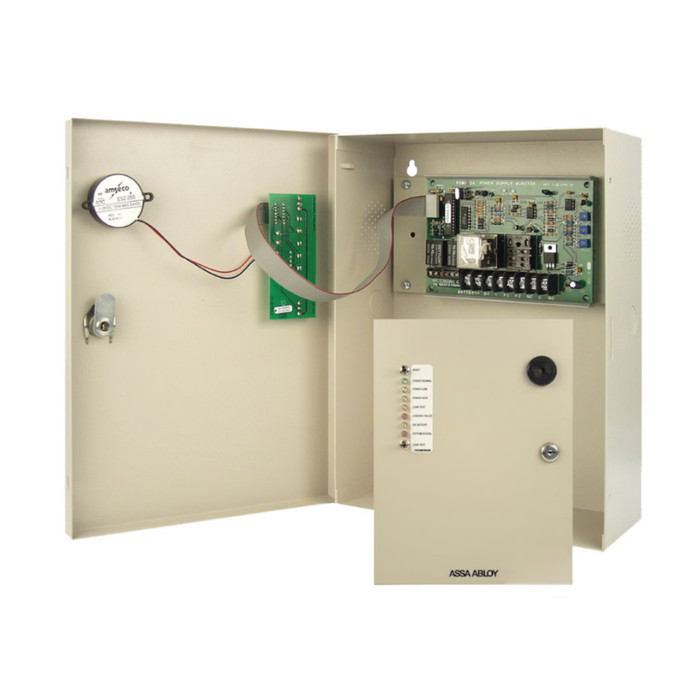

Securitron PSM Power Supply Monitor SEC-PSM

Securitron PSM Power Supply Monitor

(No reviews yet) Write a Review

Model: PSM-12
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$868.32
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SECURITRON PSM POWER SUPPLY MONITOR

The PSM Series is for use with larger DC power supplies. They operate with all BPS supplies of 2 Amps or more and act as a power supply alarm system, monitoring all key functions and reporting any trouble. The output voltage is read to ensure it remains within tight limits for proper float charging of the battery pack.

The PSM Series works with most BPS power supplies when real-time power and battery status information is critical. Compatible with all BPS supplies of two amps or more, the PSM acts as a power supply alarm system, monitoring all key functions and reporting any trouble. This unit constantly monitors its output voltage to ensure it remains within tight limits for proper float charging of the battery pack.



FEATURES AND BENEFITS

Product Features

  • Available for both 12 and 24VDC systems
  • Monitors the power supply system's output voltage
  • Audio and visual alarm
  • Load tests the battery pack every 8 hours
  • Monitors/tests DC output of power supply load
  • MagnaCare® lifetime replacement, no fault warranty



SPECIFICATIONS

Recommended Power Supplies

  • PSM-12: 3 Amp or greater at 12VDC (BPS-12-3, BPS-12-45, BPS-12-6, BPS-12-9, BPS-12-15)
  • PSM-24: 2 Amp or greater at 24VDC (BPS-24-2, BPS-24-3, BPS-24-4, BPS-24-6, BPS-24-10)


Operating Temperature

  • +32 to +105F [0 to +40C]
  • Voltage: VDC power from corresponding power supply
  • Current Draw: 250mA at 12VDC; 200mA at 24VDC



Shipping Weight

  • 5 lbs.



Models

Part # Description
PSM-12 Power Supply Monitor - 12VDC
PSM-24 Power Supply Monitor - 24VDC











DOWNLOAD AND RESOURCES

Manufacturer Resources

Product Specs

Series:
PSM Series
Subcategory:
Other Power Accessories
Warranty:
Lifetime Replacement
Product Group:
Electronic Access Controls
Product Subgroup:
Controllers, Power Supplies and Transformers
Product Type:
Power Supply Monitors
Commercial/Residential:
Commercial
Electronic:
Yes
Product Model:
SEC-PSM
Product Voltage:
12/24VDC
Product Height:
12"
Product Category:
Electronic Access Controls
Product Width:
4"
Department:
Door Hardware

Securitron PSM-12 – Frequently Asked Questions

1) Which Securitron PSM model do I order, the PSM-12 or the PSM-24?
Match the monitor to the DC voltage of the power supply it is watching. The PSM-12 is for 12VDC systems and is recommended on supplies of 3 amps or greater (BPS-12-3, BPS-12-45, BPS-12-6, BPS-12-9, BPS-12-15). The PSM-24 is for 24VDC systems at 2 amps or greater (BPS-24-2, BPS-24-3, BPS-24-4, BPS-24-6, BPS-24-10). There is no dual-voltage version; those are the only two models.
2) What does the Securitron PSM actually monitor and alarm on?
It acts as a power supply alarm system for the whole BPS system. It reads output voltage continuously to confirm it stays within tight limits for proper float charging of the battery pack, monitors and tests the DC output under load, and load tests the battery pack every 8 hours. Trouble is reported with both an audible and a visual alarm, so a tech at the panel sees and hears the fault.
3) How much current does the PSM draw off the power supply I am adding it to?
Budget 250mA at 12VDC or 200mA at 24VDC. The monitor takes its power from the corresponding power supply, so subtract that draw from the amperage you have left for locks and strikes when sizing the system.
4) Can the Securitron PSM be installed in an unheated mechanical room or exterior cabinet?
Its rated operating range is +32 to +105F (0 to +40C), so an interior mechanical or electrical room is fine but an uninsulated exterior enclosure that drops below freezing is outside the range.
5) Is a power supply monitor worth adding if my access control system already has battery backup?
Battery backup only helps if the batteries are actually good when the power drops. The PSM load tests the pack every 8 hours and alarms on trouble, so a failed battery or a supply drifting out of float-charge range gets flagged instead of being discovered during an outage. On life-safety and secured openings where real-time power and battery status matters, that is the reason to add it.
6) How much room do I need in the enclosure for a Securitron PSM?
Plan for a 12 inch by 4 inch footprint for the monitor when you lay out the cabinet or backboard alongside the BPS supply and battery pack.
7) Is the Securitron PSM a commercial-duty device for access control panels?
Yes, it is a commercial electronic access control accessory, one of the power supply monitors in Securitron's PSM Series, rated 12/24VDC depending on which model you take.
