Securitron PSP Medium Filtered...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$163.00
$131.64

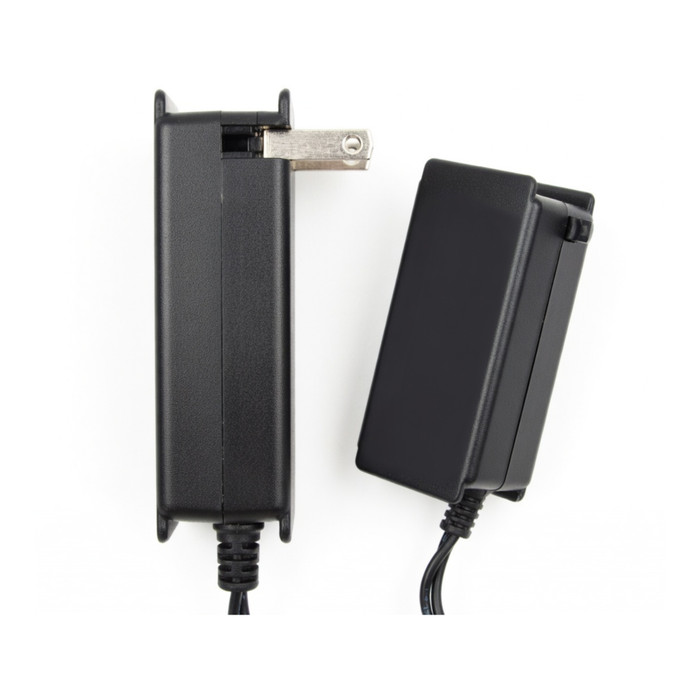

Securitron PSP Medium Filtered DC Plug-In Power Supply SEC-PSP-M

Securitron PSP Medium Filtered DC Plug-In Power Supply

(No reviews yet) Write a Review

Model: PSP-24-1.5

In Stock (leaves warehouse same day if ordered before 3pm ET)

$163.00
$131.64
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SECURITRON PSP MEDIUM FILTERED DC PLUG-IN POWER SUPPLY

12 volts at 3 Amp max. capacity (model PSP-12-3) and 24 volts at 1.5 Amp max. capacity (model PSP-24-1.5). 6 ft. output cable is included. Input voltage 120 to 220VAC. PSPs are ideal for powering a wide range of DC devices.

PSPs are ideal for powering a wide range of DC devices where power is available via an outlet. The PSP Plug-in DC Power Supplies are available in 12 volts at 3 A maximum capacity or 24 volts at 1.5 A maximum capacity.



FEATURES & BENEFITS

Product Features

  • Switchmode regulated power
  • 36 watts continuous output
  • 6 ft. [1.8m] output cable included
  • Folding two prong AC connector
  • MagnaCare® lifetime replacement, no fault warranty



Models

Part # Description
PSP-12-3 Power Supply Plug-In - Switching, Regulated, 12VDC, 3A
PSP-24-1.5 Power Supply Plug-In - Switching, Regulated, 24VDC, 1.5 A







CERTIFICATE & LISTING

  • UL Listed



DOWNLOAD & RESOURCES

Manufacturer Resources

Product Specs

Series:
PSP Series
Warranty:
Lifetime Replacement
Product Group:
Electronic Access Controls
Product Subgroup:
Controllers, Power Supplies and Transformers
Subcategory:
Eco and Other Power Supplies
Commercial/Residential:
Commercial
Power:
36 Watts Continuous
Product Type:
Power Supplies
Electronic:
Yes
Product Model:
SEC-PSP-M
Product Height:
4-1/8"
Product Category:
Electronic Access Controls
Product Width:
1-1/8"
Department:
Door Hardware

Securitron PSP-24-1.5 – Frequently Asked Questions

1) What voltage and amperage options does the Securitron PSP plug-in power supply come in?
Two models. The PSP-12-3 puts out 12VDC at 3A maximum, and the PSP-24-1.5 puts out 24VDC at 1.5A maximum. Both are switchmode regulated and both deliver 36 watts continuous, so you pick by the voltage your device needs, not by total power. Input accepts 120 to 220VAC.
2) Will a PSP power supply run a maglock or electric strike, or do I need something bigger?
It depends on the draw. The PSP is a plug-in supply sized for a single device or a small group: 3A at 12VDC or 1.5A at 24VDC, 36 watts continuous either way. Add up the holding current of everything on the circuit first. If you need more headroom, or multiple fused outputs, step up to a boxed supply like the RCI DKPS-2A, which gives 12/24VDC at 2A across 8 outputs, or the Altronix AL1024ULACMCB at 24VDC 10A with 8 PTC outputs.
3) Does the Securitron PSP have battery backup?
No. The PSP is a straight plug-in DC supply with no standby battery, so anything connected to it drops when the outlet loses power. If you need the opening to hold up through an outage, look at a supply built with backup, such as the Command Access PS204/204B (2A at 24VDC with battery backup) or the Adams Rite PS-1 (1 amp, 12/24VDC with battery backup).
4) Is there an equivalent to the Securitron PSP that lets me select 12 or 24 volts on one unit?
The PSP is ordered as a fixed-voltage unit - PSP-12-3 for 12VDC at 3A or PSP-24-1.5 for 24VDC at 1.5A. If you want one part that covers both, the SDC 631 Series is a 1.5 amp regulated and filtered DC power controller with dual voltage selection, and the SDC 632 Series is the same dual-voltage arrangement at 2 amps. The Von Duprin PS902 is a 2A 12/24 VDC field selectable base power supply.
5) What is the closest plug-in alternative to the Securitron PSP power supply?
The ROFU 9126T is the nearest plug-in unit among the alternatives: it is a plug-in mini power supply rated 12 VDC at 1.5A with a built-in time delay. The Securitron PSP is also a plug-in unit with a folding two prong AC connector, offered as PSP-12-3 at 12VDC 3A and PSP-24-1.5 at 24VDC 1.5A, with 36 watts continuous output and a 6 ft output cable included. So the 9126T brings timing functionality at 12V only, while the PSP covers either 12V at higher current or 24V.
6) I need more than 3 amps at 12V - what should I use instead of the Securitron PSP?
The PSP tops out at 36 watts continuous, which is 12VDC at 3A or 24VDC at 1.5A. For more current, the Aiphone AC-PS1250 is a UL Listed 12V DC 5A supply, and the BEST PS161-6 takes 120V input with 12/24V output at 6A capacity. The SDC 634 Series is a 4 amp regulated and filtered low voltage supply with dual voltage selection. Those are enclosure or hardwired style units rather than plug-in.
7) Does the Securitron PSP provide battery backup, or do I need a different power supply?
The PSP is a switchmode regulated plug-in supply with 36 watts continuous output and a 6 ft output cable; standby battery capability is not part of it. For backup, the Adams Rite PS-1 is a regulated 1 amp 12/24 VDC supply with battery backup, the Command Access PS204/204B is a linear supply with 2A at 24VDC and battery backup, and the Detex 10-800 Series is a universal logic controller with 120VAC/24VDC power supply and battery backup.
8) I need to power several doors from one point - is the Securitron PSP the right choice?
The PSP is a single-output plug-in unit with one 6 ft output cable, sized for 36 watts continuous. For distributing power to multiple doors from one device, the RCI DKPS-2A is a power supply with 8 outputs at 12/24VDC and 2A, and the Altronix AL1024ULACMCB is a power supply and access power controller with 8 PTC outputs, 115VAC 60Hz input at 4.2A and 24VDC at 10A in a grey enclosure.
9) How far can I mount the device from the outlet with a Securitron PSP?
A 6 ft (1.8m) output cable ships with the supply, so the device has to land within that reach of the receptacle unless you splice and extend the DC run yourself. On longer extensions, voltage drop becomes the thing to watch.
10) Is the Securitron PSP UL Listed?
Yes, the PSP plug-in DC power supply is UL Listed. It is a commercial-rated product for access control work. If your spec calls out a specific UL category for the supply, match that to the model you are ordering.
11) Is the output on the PSP filtered and regulated enough for electronics, or is it just a transformer?
Regulated and filtered switchmode DC, not a raw transformer. That matters when you are powering readers, controllers, or anything with logic in it, where unfiltered DC can cause nuisance behavior. Both the 12VDC and 24VDC models are switching and regulated.
12) Can I use the Securitron PSP to power a motorized latch retraction exit device?
Motor-driven exit hardware is normally fed by a supply built for that duty: the BEST RPSMLR2 Series is a power supply for motorized latch retraction exit devices, and the BEST PS161-6 is intended for delayed egress exit devices with 12/24V output at 6A. The Securitron PSP is a general purpose plug-in DC supply at 36 watts continuous, offered as 12VDC 3A or 24VDC 1.5A, for powering DC devices where an outlet is available.
13) What looks like a substitute for the Securitron PSP but is not a power supply at all?
The ROFU 10305-LA/10306-LA is a tamper resistant power transfer hinge rated 1.5A at 42V in a plastic white finish - it carries current into the door rather than generating DC. The BEST ELR150 Series is a power supply control module for electronic access control, and the Command Access CAT Field Tester is a portable 12-24VDC tester that runs on DeWalt, Makita and Milwaukee batteries. The Securitron PSP is the plug-in DC source itself, at 12VDC 3A or 24VDC 1.5A.
14) For a single 24VDC device at about 1.5 amps, how does the Securitron PSP compare with a linear supply?
The PSP-24-1.5 is a switchmode regulated plug-in unit at 24VDC 1.5A with a folding two prong AC connector and a 6 ft output cable. Among linear options at similar output, the Command Access PS210 is a UL 6E/CSA linear power supply with 1.5A at 24VDC and boost circuitry, and the Command Access PS1 Series is a 24VDC linear supply with 1 amp output. The Securitron unit is UL Listed and measures 4-1/8 inches high by 1-1/8 inches wide.
15) Which alternative should I specify when the power supply has to be mounted in an enclosure rather than plugged into an outlet?
The Securitron PSP plugs directly into an outlet using a folding two prong AC connector and feeds the device through a 6 ft output cable. When the job calls for an enclosed, hardwired unit, the Locknetics LP Series 150 and 250 is supplied with an enclosure, the Altronix AL1024ULACMCB comes in a grey enclosure with 115VAC input, and the ROFU 9102-12D UL/9102-24D runs on 10/120VAC 60Hz input.
16) How much space does the Securitron PSP take up at the outlet?
It measures 4-1/8 inches by 1-1/8 inches, and the AC prongs fold flat against the body. On a duplex receptacle it will cover the second outlet depending on orientation, so plan for it if that outlet is spoken for.
17) Can I use the PSP on 220 volt power overseas or in a facility with 208/220 service?
Input range is 120 to 220VAC, so the supply itself accepts either. The limit is the plug: it is a folding two prong AC connector, so you need a receptacle or adapter that accepts it.
