SEPCO LLA Type LL Conduit Outlet Body, Die-Cast Copper-Free Aluminum

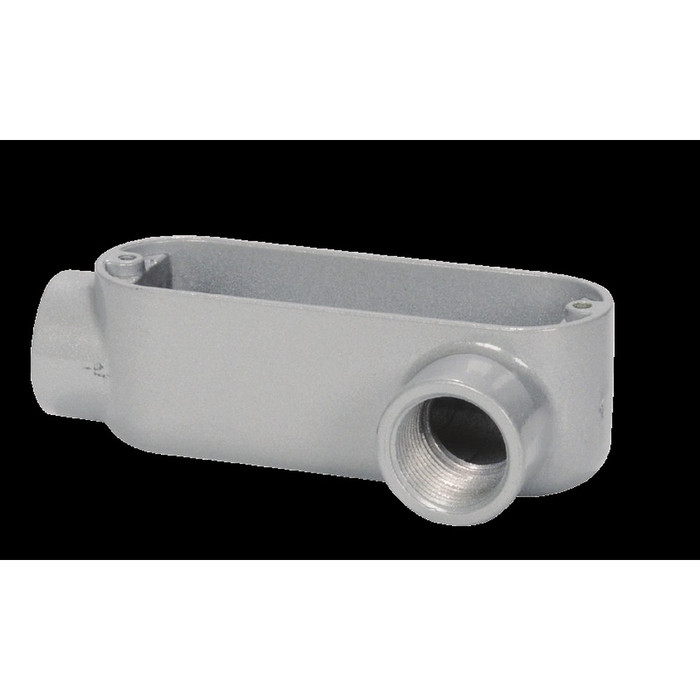

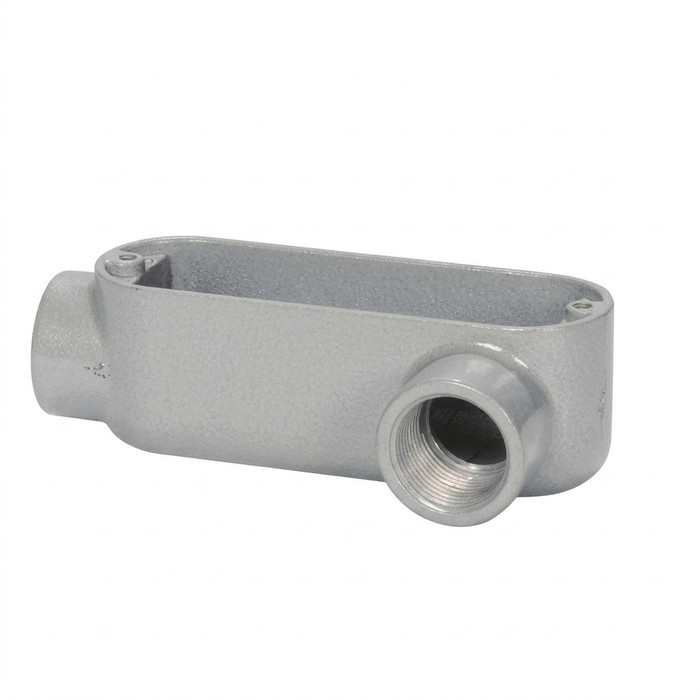

The SEPCO LLA is a Type LL conduit outlet body built from die-cast, copper-free aluminum, giving electrical contractors a durable, corrosion-resistant access point for conduit and raceway systems. The Type LL hub configuration provides a dedicated opening for routing, splicing, or pulling conductors along a conduit run without disturbing wiring elsewhere in the system. Because the LLA housing is cast from copper-free aluminum rather than a standard aluminum alloy, it is better suited to environments where copper content in metal fittings can accelerate corrosion. SEPCO offers the LLA for use with rigid and intermediate metal conduit, giving installers a code-compliant access point mid-run rather than routing every conductor through a single junction.

Key Features

  • Type LL Configuration: The Type LL body designation identifies the hub arrangement, giving installers a defined access point for pulling and routing conductors through a conduit run.
  • Die-Cast Construction: The LLA housing is die-cast for consistent wall thickness and a rigid, durable body that stands up to jobsite handling.
  • Copper-Free Aluminum: Formulated without copper content, the aluminum alloy used in the LLA resists the accelerated corrosion that copper-bearing alloys can experience in certain environments.
  • Model LLA: This SEPCO outlet body is identified under the LLA model designation within the Type LL conduit body family.
  • Removable Cover Access: As a conduit outlet body, the LLA is designed with a removable cover so conductors can be pulled, spliced, or serviced without disconnecting the conduit run.

Technical Specifications

  • Series: LLA

Typical Applications

  • Conduit and Raceway Systems
  • Wire Pulling, Splicing, and Access Points
  • Commercial and Industrial Electrical Installations
  • Rigid and Intermediate Metal Conduit Systems
  • Renovation and New Construction Wiring

Why SEPCO?

SEPCO builds the LLA conduit outlet body from die-cast, copper-free aluminum to give electrical contractors a durable access fitting that resists the corrosion issues associated with copper-bearing alloys. The Type LL configuration keeps wire routing and splicing straightforward without disturbing the rest of a conduit run. Its die-cast body and removable cover give contractors and facility maintenance teams a reliable way to access, splice, and service conductors along a conduit run without compromising the integrity of the raceway system.

Manufacturer Resources

SEPCO Product Catalog

Product Specs

list_batch:
SEP-20260911
Product Type:
Type LL Conduit Body
Configuration:
Type LL
Series:
LLA
Department:
Electrical
Product Group:
Conduit & Raceway
Product Subgroup:
Conduit Bodies & Covers
Product Material:
Copper-Free Aluminum

SEPCO LL1A – Frequently Asked Questions

1) What is a Type LL conduit body used for on a conduit run?
A Type LL body gives you a cover-accessible opening part way along a rigid or IMC run so conductors can be pulled, spliced, or serviced without breaking down the raceway or pulling everything back to a junction box. The SEPCO LLA is that fitting in die-cast, copper-free aluminum. The LL designation describes the hub arrangement, with the back opening on the left side as you face the cover, so it is the one to order when the branch has to come off that side.
2) What part numbers does the SEPCO LL series come in?
SEPCO lists the LL body as LL1A, LL2A, LL3A, LL4A, LL5A and LL6A, six part numbers in the same die-cast copper-free aluminum LLA series. The number in the part number is what steps the hub size up through the range, so order by the hub that matches the conduit you are running.
3) Will the SEPCO LLA work with EMT?
SEPCO specifies the LLA for use with rigid and intermediate metal conduit. Threaded hub bodies like this one take threaded RMC or IMC; EMT is unthreaded and needs either a set-screw or compression type body or an EMT to threaded adapter at the body.
4) Should I use an LL body or an LB for a conduit run?
It depends which way the run has to turn. An LL turns to the left as you face the cover; an LR turns right, and an LB turns back behind the wall, which is the one most often used where conduit comes off a wall and heads into the building. SEPCO's LLA covers the left-hand case only. If the pull needs a straight-through pull point rather than a 90, that is a C body, not an L body.
5) Why choose copper-free aluminum for a conduit body instead of standard aluminum?
Copper content in an aluminum alloy accelerates galvanic corrosion, which shows up fast in coastal, wash-down, chemical, and other wet or aggressive environments. The LLA is cast from a copper-free aluminum alloy specifically to avoid that, so it holds up better than copper-bearing castings in those locations while staying lighter than a malleable iron body.
6) Can I splice wires inside the SEPCO LLA conduit body?
The LLA has a removable cover so conductors can be pulled, spliced, or serviced without disconnecting the conduit run. Whether you can splice in a given body depends on having enough volume for the conductor count under code, so size the body to your fill, not just to the conduit.
7) Does the LLA conduit body come with a cover and gasket?
The LLA is built as a conduit outlet body with a removable cover for conductor access. Covers and gaskets are commonly ordered as separate items on conduit bodies, so confirm the cover and gasket line items with your order if you need a wet-location seal rather than assuming they ship with the casting.
