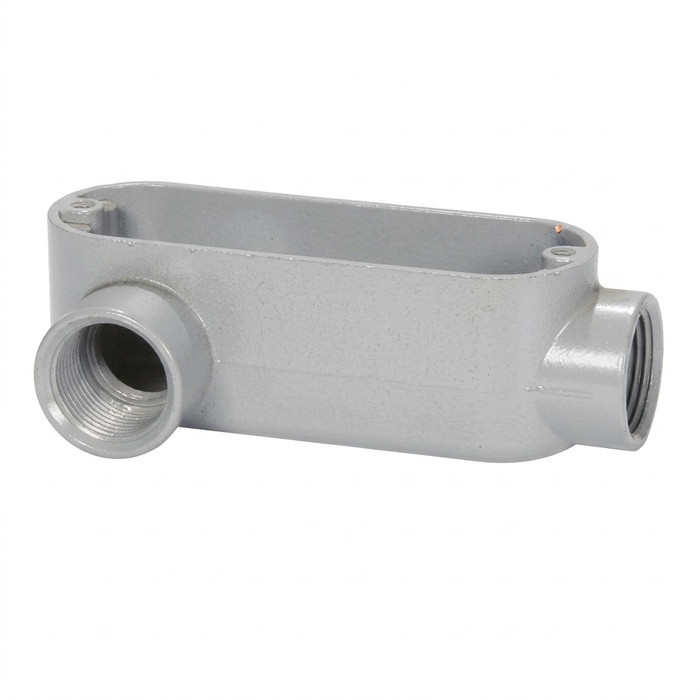

SEPCO LRA Series Type LR Conduit Outlet Body, Copper-Free Die-Cast Aluminum

SEPCO LRA Series Type LR Conduit Outlet Body, Copper-Free Die-Cast Aluminum

(No reviews yet) Write a Review

Model: LR1A

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4.35
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SEPCO LRA Series Type LR Conduit Outlet Body, Copper-Free Die-Cast Aluminum

The SEPCO LRA Series Type LR Conduit Outlet Body is a die-cast, copper-free aluminum fitting engineered for professional electrical conduit systems, giving installers an in-line access point for pulling and splicing conductors while keeping the conduit run continuous and code-compliant. Copper-free aluminum construction is specifically formulated to resist galvanic corrosion when paired with aluminum conduit, making this Type LR body a dependable choice for new installations, conduit direction changes, and system repairs where a rugged, lightweight fitting is required. As part of SEPCO's LRA outlet body line, it delivers consistent fit, threading, and finish for demanding jobsite conditions.

Key Features

  • Type LR Body Design: The LR configuration is an in-line conduit outlet body style commonly used to provide pulling and splicing access, or to transition direction, within a conduit run.
  • Durable Die-Cast Construction: Die-cast aluminum housing delivers strong, rigid protection for conductors while standing up to jobsite handling and outdoor exposure.
  • Copper-Free Aluminum Alloy: Formulated without copper content to reduce the risk of galvanic corrosion when the body is installed with aluminum conduit or in contact with dissimilar metals.
  • SEPCO LRA Series: Manufactured as part of SEPCO's LRA outlet body line, engineered for consistent fit, threading, and finish across installations.
  • Removable Cover Access: Outlet body construction typical of Type LR fittings allows for a removable cover, simplifying wire pulling, splicing, and future conduit maintenance without disturbing the run.
  • Lightweight Aluminum Build: Aluminum construction keeps installed weight lower than malleable iron alternatives, easing handling on overhead runs and long conduit pulls.

Technical Specifications

  • Product Type: Conduit Body
  • Series: LRA

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Conduit Routing and Direction Changes
  • Wire Pulling and Splicing Access Points
  • Aluminum Conduit Systems
  • New Construction and Conduit System Repairs
  • Panelboard and Raceway Feeder Runs

Why SEPCO?

SEPCO engineers this conduit outlet body from copper-free aluminum specifically to guard against galvanic corrosion in aluminum conduit systems, giving electrical contractors a lightweight, reliable fitting for demanding installations. The Type LR configuration and die-cast construction reflect SEPCO's focus on fittings that hold up to daily jobsite handling while keeping conduit runs code-compliant. For professionals who need dependable electrical components, SEPCO delivers consistent quality built for real-world installation conditions.

Manufacturer Resources

SEPCO Product Catalog

Product Specs

list_batch:
SEP-20260911
Product Type:
Type LR Conduit Body
Series:
LRA
Configuration:
Type LR
Department:
Electrical
Product Group:
Conduit & Raceway
Product Subgroup:
Conduit Bodies & Covers
Product Material:
Copper-Free Aluminum

SEPCO LR1A – Frequently Asked Questions

1) What is a Type LR conduit body used for on a conduit run?
A Type LR body like the SEPCO LRA Series gives you an access opening in the middle of a conduit run so you can pull and splice conductors, or turn the run, without breaking it up. The LR configuration is the in-line style with the opening on the left side relative to the run, and the removable cover means you can get back in later for maintenance without disturbing the conduit.
2) Is the SEPCO LRA conduit body safe to use with aluminum conduit?
Yes, that is what it is built for. The LRA body is die-cast from copper-free aluminum, an alloy formulated without copper content to cut the risk of galvanic corrosion where the fitting meets aluminum conduit or other dissimilar metals. If you are running aluminum rigid conduit, a copper-free aluminum body is the matching choice.
3) What trade sizes does the SEPCO LRA Type LR conduit body come in?
Six sizes are offered, ordered as LR1A, LR2A, LR3A, LR4A, LR5A and LR6A. Match the body to the trade size of the conduit you are terminating into it so the threads land correctly.
4) Should I use an aluminum LR body or a malleable iron one?
Pick by the conduit material and the handling. The SEPCO LRA aluminum body weighs less than a malleable iron equivalent, which matters on overhead racks and long pulls, and its copper-free alloy is the right pairing for aluminum conduit. Malleable iron bodies are the usual answer for steel rigid or IMC runs where you want matched materials and a heavier housing.
5) Does the LRA conduit body come with a cover and gasket?
The LRA body is an outlet body of the removable-cover type, but the cover and gasket are separate items on this fitting, so plan your order to include a cover of the same trade size. Confirm the cover style you want (blank stamped or cast) when you order.
6) Can I use this conduit body as a splice point for a feeder run to a panelboard?
Yes. SEPCO lists panelboard and raceway feeder runs among the applications for the LRA body, and the whole point of the Type LR configuration is to give an in-line pulling and splicing access point while keeping the run continuous. Conductor fill in a conduit body is governed by the body's volume and the conduit size, so size the body to the conductors you are splicing.
7) Can the SEPCO LRA body be installed outdoors?
The die-cast aluminum housing is rated by SEPCO for jobsite handling and outdoor exposure, and the copper-free alloy resists corrosion. For a wet location you still need a gasketed cover on the body so the opening is sealed.
