SEPCO LR34 Type LR Conduit Bod...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$5.95

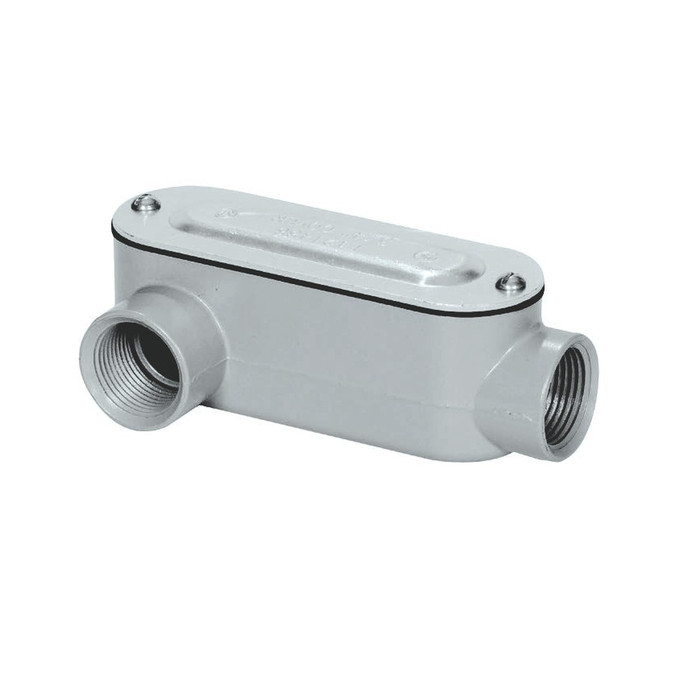

SEPCO LR34 Type LR Conduit Body, Copper-Free Cast Aluminum with Cover & Gasket

SEPCO LR34 Type LR Conduit Body, Copper-Free Cast Aluminum with Cover & Gasket

(No reviews yet) Write a Review

Model: LR1ACG

In Stock (leaves warehouse same day if ordered before 3pm ET)

$5.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SEPCO LR34 Type LR Conduit Body, Copper-Free Cast Aluminum with Cover & Gasket

The SEPCO LR34, manufacturer model LR1ACG, is a Type LR conduit body family built from die cast copper-free aluminum, engineered as a rugged access and pull point along rigid and intermediate metal conduit (IMC) runs. Available in trade sizes from 1/2" through 1-1/2", every size in the family ships complete with a matching cover and gasket so the access opening can be sealed immediately after conductors are pulled or spliced. The copper-free aluminum housing offers a lightweight, corrosion-resistant alternative to cast iron conduit bodies for indoor and protected outdoor conduit installations, making the LR34 family a practical choice wherever an LR-style access fitting is called for on the print.

Key Features

  • Trade Size Range: Offered in 1/2", 3/4", 1", 1-1/4", and 1-1/2" trade sizes to match rigid and IMC conduit runs.
  • Type LR Configuration: The LR body style provides an offset access opening suited for conduit runs that change direction, simplifying conductor pulls at tight turns and offsets.
  • Durable Construction: Die cast copper-free aluminum housing resists corrosion while keeping the fitting lighter than comparable cast iron conduit bodies.
  • Cover and Gasket Included: Every size ships complete with a matching aluminum cover and gasket, so the access opening can be sealed immediately after conductors are pulled or spliced.
  • Manufacturer Model LR1ACG: Carries the manufacturer model designation LR1ACG for straightforward cross-reference, submittal matching, and reordering.
  • Conduit Body Access Point: Creates a serviceable junction in an exposed conduit system, giving electricians a pull and splice point without installing a full junction box.
  • Copper-Free Alloy: The copper-free aluminum formulation is selected for conduit body castings where a low copper content alloy is preferred for the application.

Technical Specifications

  • Trade Size: 1/2" - 1-1/2"

Typical Applications

  • Conduit and Raceway Systems
  • Wire Pulling and Splicing Access Points
  • Commercial and Industrial Electrical Installations
  • Rigid and Intermediate Metal Conduit (IMC) Runs
  • Renovation and New Construction Wiring

Why SEPCO?

SEPCO builds its Type LR conduit bodies from die cast copper-free aluminum for installers who need a fitting that stands up to corrosion without the added weight of a cast iron body. Offered across trade sizes from 1/2" through 1-1/2" and shipped complete with a matched cover and gasket, the LR34 family is ready to install right out of the box, helping electrical contractors keep conduit systems accessible, serviceable, and code-compliant on both new construction and renovation work.

Manufacturer Resources

SEPCO Product Catalog

Product Specs

list_batch:
SEP-20260911
Product Type:
Type LR Conduit Body
Configuration:
Type LR
Department:
Electrical
Product Group:
Conduit & Raceway
Product Subgroup:
Conduit Bodies & Covers
Product Material:
Die-Cast Aluminum

SEPCO LR1ACG – Frequently Asked Questions

1) What trade sizes does the SEPCO LR conduit body come in, and what part number do I order for each?
Five trade sizes, each with its own model number: 1/2 inch is LR1ACG, 3/4 inch is LR2ACG, 1 inch is LR3ACG, 1-1/4 inch is LR4ACG, and 1-1/2 inch is LR5ACG. Order by the trade size of the conduit run it is going into, not by the conductor size.
2) Do I have to buy the cover and gasket separately for the SEPCO LR conduit body?
No. Every size in the SEPCO LR family ships complete with a matching aluminum cover and gasket, so you can close and seal the access opening as soon as the conductors are pulled or spliced. Nothing extra to order to finish the fitting.
3) Will a Type LR conduit body work on rigid and IMC conduit?
Yes, the SEPCO LR body is built as an access and pull point for rigid metal conduit and intermediate metal conduit (IMC) runs, in trade sizes 1/2 inch through 1-1/2 inch. It threads into the run at a turn or offset and gives you a serviceable opening without setting a full junction box.
4) When should I use a Type LR body instead of an LB or LL?
The LR designation tells you which side the access opening and the back outlet face. On the SEPCO LR, the body provides an offset access opening for runs that change direction, which is what you want pulling conductors around a tight turn. If your run needs to drop back through a wall behind the fitting you are looking for an LB; if the turn goes the other way, that is an LL. The body style has to match the direction of the turn on the print, so confirm the letter called out in the drawing before ordering.
5) Is the SEPCO LR conduit body aluminum or iron, and can I use it in a corrosive area?
It is die-cast copper-free aluminum, not iron. The copper-free alloy resists corrosion and the body is lighter than a comparable cast iron conduit body, which is why it gets specified for indoor and protected outdoor conduit work. For direct exposure to harsh chemical atmospheres, confirm the alloy is accepted for that environment in your spec.
6) Can I use this conduit body as a splice point instead of installing a junction box?
That is what it is for. The SEPCO LR creates a serviceable junction in an exposed conduit system, giving a pull and splice point without a full junction box, and the included gasketed cover seals it back up. Fill and splice volume still have to work out for the number and size of conductors you are putting in it.
7) I am matching an existing fitting marked LR1ACG. Is that the same part?
Yes. LR1ACG is the manufacturer model for the 1/2 inch SEPCO Type LR conduit body, cover and gasket included. The rest of the family follows the same pattern, LR2ACG through LR5ACG for 3/4 inch up to 1-1/2 inch, so you can match a submittal or reorder straight off the casting marking.
8) Why does copper-free aluminum matter on a conduit fitting?
Copper content in an aluminum casting is what gets restricted in certain atmospheres and facility specs. The SEPCO LR body uses a copper-free aluminum formulation chosen for conduit body castings where a low copper content alloy is preferred, so it satisfies prints that call out copper-free fittings by name.
