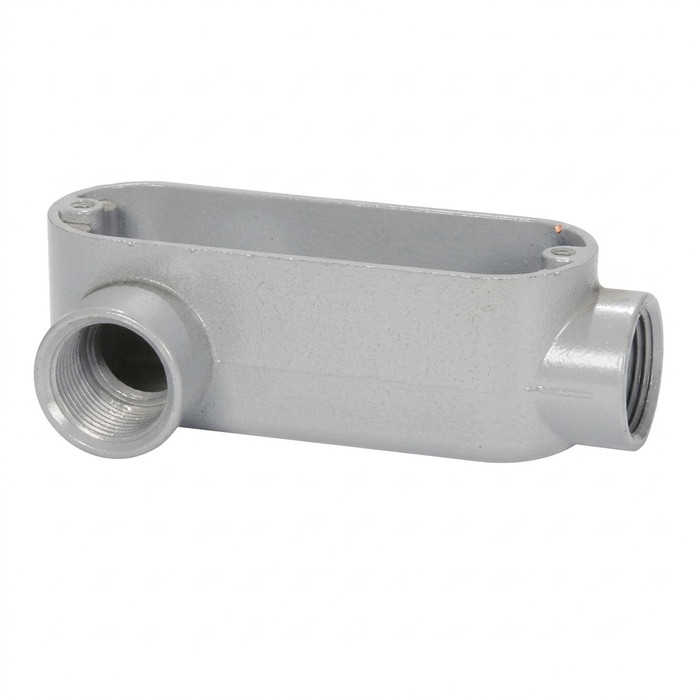

SEPCO LR8A Type LR Conduit Body, Copper-Free Die Cast Aluminum, 3-Inch

SEPCO LR8A Type LR Conduit Body, Copper-Free Die Cast Aluminum, 3-Inch

(No reviews yet) Write a Review

Model: LR8A

In Stock (leaves warehouse same day if ordered before 3pm ET)

$86.93
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SEPCO LR8A Type LR Conduit Body, Copper-Free Die Cast Aluminum, 3-Inch

The SEPCO Type LR Conduit Body is a 3-Inch conduit fitting engineered from copper-free die cast aluminum for durable, corrosion-resistant performance in rigid and IMC conduit raceway systems. Its Type LR configuration provides a convenient access point for pulling and redirecting conductors at the 3-Inch trade size connection, making it a practical choice for commercial and industrial installations where a code-compliant pull point is needed along a run. Built without copper content, the die cast aluminum body resists galvanic corrosion across a wide range of environments, supporting long-term, reliable conduit systems on both new construction and retrofit projects. The removable cover on a conduit body of this type also simplifies access for pulling, splicing, and inspecting conductors without disturbing the rest of the raceway.

Key Features

  • Trade Size: 3-Inch trade size for connection to matching rigid or IMC conduit runs.
  • Durable Construction: Copper-Free Die Cast Aluminum body resists corrosion for long service life in the field.
  • Type LR Body: LR-style conduit body configuration provides a convenient access and pull point within the raceway for routing and redirecting conductors.
  • Copper-Free Formulation: Aluminum alloy contains no copper, suited for installations where copper-free fittings are specifically required.
  • Lightweight Design: Die cast aluminum construction is lighter than comparable iron conduit bodies, easing handling and installation on the job site.
  • Precision Die-Cast Body: Die casting produces a consistent, tight-tolerance fitting that mates cleanly with 3-Inch conduit and standard conduit body covers and gaskets.

Technical Specifications

  • Refer to manufacturer documentation for complete specifications.

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Rigid and IMC Conduit Raceway Systems
  • Wire Pulling and Direction Changes in Conduit Runs
  • Outdoor and Corrosion-Prone Environments
  • New Construction and Conduit System Upgrades
  • Retrofit and Maintenance Access Points Along Existing Runs

Why SEPCO?

SEPCO manufactures conduit bodies from copper-free die cast aluminum for contractors who need corrosion-resistant, code-compliant fittings that hold up in demanding electrical installations. Eliminating copper from the alloy broadens where the fitting can be specified, while the die-cast aluminum construction keeps the body lightweight without sacrificing the strength needed for rigid and IMC conduit systems. The Type LR configuration and 3-Inch trade size make this conduit body a reliable choice for professional raceway work where durability, corrosion resistance, and easy conductor access all matter.

Manufacturer Resources

SEPCO Product Catalog

Product Specs

list_batch:
SEP-20260911
Product Type:
Type LR Conduit Body
Configuration:
Type LR
Department:
Electrical
Product Group:
Conduit & Raceway
Product Subgroup:
Conduit Bodies & Covers
Product Material:
Die-Cast Aluminum
Product Size:
3-Inch

SEPCO LR8A – Frequently Asked Questions

1) Will the SEPCO LR8A thread onto 3-inch rigid conduit, or is it for EMT?
It is a 3-inch trade size fitting for threaded rigid metal conduit and IMC runs. Threaded hubs, so EMT would need threaded adapters or a different fitting family. Match it to 3-inch RMC or IMC that is already threaded or that you can field-thread.
2) Does the LR8A come with a cover and gasket, or do I order those separately?
Covers and gaskets for conduit bodies are separate line items, and the LR8A is a 3-inch body sized to accept standard conduit body covers and gaskets. Order a 3-inch (size 8) cover, plus a gasket if the location needs the joint sealed, along with the body.
3) Is the LR8A conduit body safe to use in a corrosive or coastal environment?
The body is copper-free die cast aluminum, which is the alloy specified where galvanic corrosion is a concern or where copper-free fittings are explicitly required, such as certain petrochemical and marine-adjacent installations. It is the same reason it shows up on outdoor and wash-down runs rather than plain iron.
4) Can conductors be spliced inside a 3-inch LR conduit body?
The removable cover gives access for pulling, splicing, and inspecting conductors without opening up the rest of the raceway. Whether splices are permitted in a given body depends on the fitting's marked volume versus the conductors you are installing, so size your splice count to the marking on the body.
5) Is an aluminum conduit body strong enough, or should I use a malleable iron LR?
Die cast aluminum is lighter than a comparable iron body, which matters when you are hanging a 3-inch fitting overhead, and it holds the strength needed for rigid and IMC work. Go to iron only where the spec calls for ferrous fittings or where impact exposure is the governing concern.
6) What is the exact part number to order for the SEPCO 3-inch Type LR body?
Order SEPCO LR8A. The 8 in the designation is the 3-inch trade size and the A denotes the copper-free die cast aluminum body.
