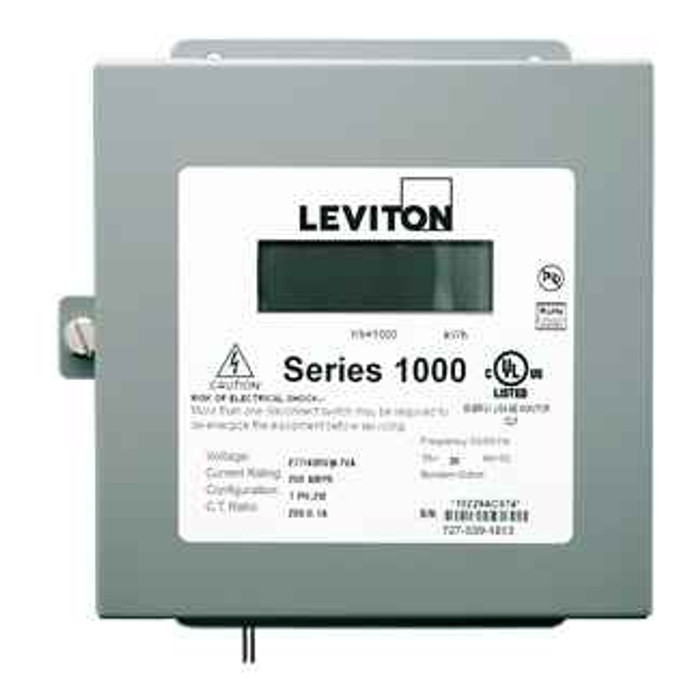

Leviton 1N120-21 Series 1000, Single Element Meter, 1P/2W, 120V, 200:0.1A, Max 200A, METER ONLY.

Features

• Enclosures include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
• Five year warranty
• 1-or 2-Phase applications, 120V, 120/240V, 277V or 277/480V
• Utilizes revenue-grade 0.3% accuracy class 0.1A secondary solid core CTs that conform to all applicable ANSI requirements or 1.0% accuracy split-core CTs
• Large LCD display
• Isolated pulse output channel
• Conforms to all applicable standards of ANSI C12.1
• Large LCD display shows kWh and instantaneous and peak demand (optionally) with manual keyed reset
• Reverse Phase Indicator LED illuminates if the meter is improperly installed
• UL/cUL Listed for UL 916 Energy Monitoring Equipment
• Equipped with an Isolated Pulse Output channel
• Up to three sets of CTs per phase can be paralleled per meter without the need for a meter multiplier
• Interfaces with numerous communication systems – Hardwired Automatic Meter Reading (AMR) or wireless AMR
• Load Indicator LED verifies meter functionality
• 100A-800A services
• Measures kWh and demand (optional)
• kWH and demand (optional)
