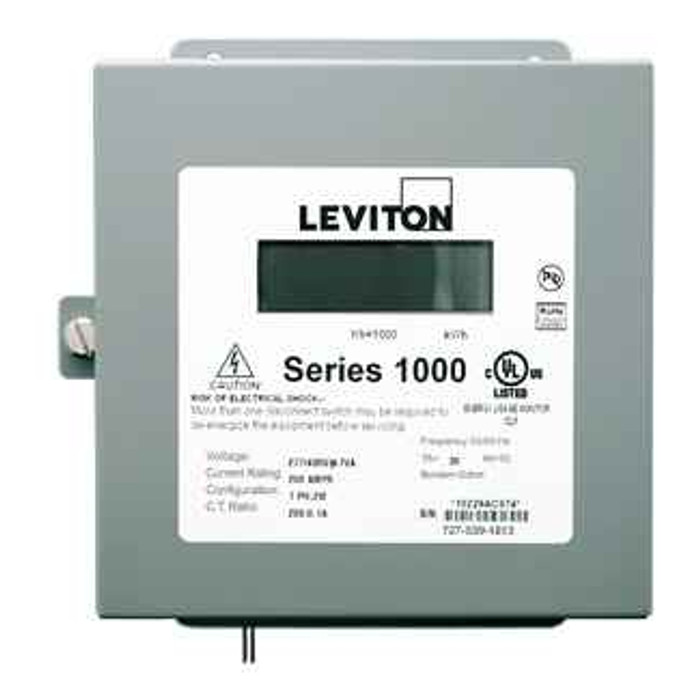

Series 1000, Single Element Meter, 1P/2W, 277V, 800:0.1A, Max 800A, METER ONLY.
Features
- Large LCD display
- Reverse Phase Indicator LED illuminates if the meter is improperly installed
- UL/cUL Listed for UL 916 Energy Monitoring Equipment
- kWH and demand (optional)
- Five year warranty
- Up to three sets of CTs per phase can be paralleled per meter without the need for a meter multiplier
- Isolated pulse output channel
- Equipped with an Isolated Pulse Output channel
- Interfaces with numerous communication systems – Hardwired Automatic Meter Reading (AMR) or wireless AMR
- 100A-800A services
- Conforms to all applicable standards of ANSI C12.1
- Utilizes revenue-grade 0.3% accuracy class 0.1A secondary solid core CTs that conform to all applicable ANSI requirements or 1.0% accuracy split-core CTs
- Load Indicator LED verifies meter functionality
- 1-or 2-Phase applications, 120V, 120/240V, 277V or 277/480V
- Enclosures include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
- Measures kWh and demand (optional)
- Large LCD display shows kWh and instantaneous and peak demand (optionally) with manual keyed reset
Manufacturer Resources
Product Specs
- Cts Included:
- No Meter Only
- Meter Configuration:
- Single Meter
- Product Line:
- Series 1000
- Product Group:
- Wiring Devices
- Department:
- Electrical
- Product Subgroup:
- Energy Monitoring
- Amperage:
- 800 A
- Communication:
- Pulse Output
- Enclosure:
- Indoor (NEMA 1)
- Voltage:
- 277 VAC, 1P, 2W
