Minerallac Set Screw Beam Clamp 1/2" Flange Spring Steel with Zinc Phosphate Finish, Pack of 100

Minerallac Set Screw Beam Clamp 1/2" Flange Spring Steel with Zinc Phosphate Finish, Pack of 100

(No reviews yet) Write a Review

Model: 500

In Stock (leaves warehouse same day if ordered before 3pm ET)

$184.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

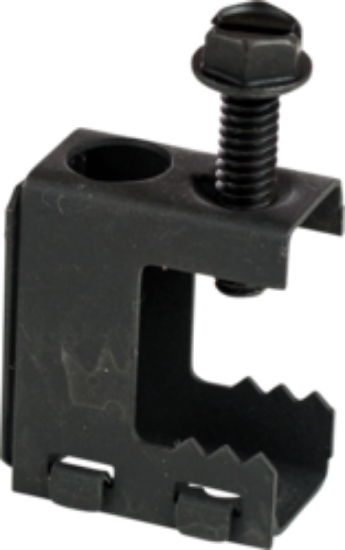

Minerallac Set Screw Beam Clamp 1/2" Flange Spring Steel with Zinc Phosphate Finish

Professional beam mounting solution for versatile structural applications

The Minerallac Set Screw Beam Clamp delivers reliable structural mounting performance with spring steel construction and zinc phosphate finish for enhanced durability. Designed to accommodate flanges up to 1/2" width, this beam clamp features pass holes for 1/4" and 3/8" threaded rod with multiple thread impressions including 1/4"-20 on bottom and back, plus #10-24 on back for versatile connection options.

Professional Features & Benefits

  • Spring Steel Construction: Provides superior strength and resilience for demanding structural mounting applications
  • 1/2" Flange Capacity: Accommodates a wide range of beam sizes for versatile installation flexibility
  • Dual Rod Compatibility: Pass holes for both 1/4" and 3/8" threaded rod maximize connection options
  • Multiple Thread Impressions: 1/4"-20 and #10-24 thread patterns enable diverse fastening configurations
  • Zinc Phosphate Finish: Black protective coating enhances corrosion resistance and extends service life
  • 100 lb Maximum Load: Rated capacity ensures reliable performance for appropriate structural loads
  • Compact Design: 1.42" x 1.25" x 0.70" dimensions provide secure mounting without excessive bulk

Technical Specifications

  • Country Of Origin: United States
  • Fastening Holes: 2
  • Flange Width: 0.5
  • Maximum Load: 100
  • Product Color: Black
  • Product Finish: Zinc Phosphate
  • Product Length: 1.420 in
  • Product Material: Spring Steel
  • Product Size: 1.42" x 0.70" x 1.25
  • Product Type: Beam Clamp
  • Product Width: 1.250 in
  • Rod Size: 1/4" � 3/8

Professional Applications

  • Commercial Building Infrastructure
  • Industrial Facility Mounting
  • Electrical System Support
  • HVAC Equipment Installation
  • Structural Steel Connections
  • Mechanical System Anchoring
  • Professional Construction Projects

Why Choose Minerallac Quality?

Minerallac delivers trusted performance with spring steel construction and protective zinc phosphate finish, ensuring reliable structural mounting solutions. Made in the United States with professional-grade materials and 100 lb load capacity for dependable service in demanding applications.

Manufacturer Resources

Product Specs

Country Of Origin:
United States
Fastening Holes:
2
Flange Width:
0.5
Maximum Load:
100
Product Color:
Black
Product Finish:
Zinc Phosphate
Product Length:
1.420 in
Product Material:
Spring Steel
Product Size:
1.42" x 0.70" x 1.25
Product Type:
Beam Clamp
Product Width:
1.250 in
Rod Size:
1/4" – 3/8
Department:
Electrical
Product Subgroup:
Clamps
Pack size (unit):
100
Product Group:
Hangers, Supports & Fasteners

Minerallac 500 – Frequently Asked Questions

1) What size beam flange will the Minerallac 500 beam clamp fit?
The Minerallac 500 set screw beam clamp grips flanges up to 1/2 inch thick. If the beam flange on your job is thicker than that, this clamp won't seat on it and you need a larger-capacity clamp. The clamp body itself is small, 1.42 x 0.70 x 1.25 inches, so it works in tight spots alongside other trades' hangers.
2) Can I hang 3/8 inch threaded rod from the Minerallac 500 beam clamp?
Yes. The 500 has pass holes sized for both 1/4 inch and 3/8 inch threaded rod, so it covers the two rod sizes most electrical and HVAC hangers use. Note the rod passes through, so you'll need nuts top and bottom to lock it off; threaded rod and nuts are not included with the clamps.
3) How much weight can a single Minerallac 500 beam clamp carry?
Rated at 100 lb maximum load per clamp. That covers typical conduit runs, small cable tray, light fixtures and strut drops. For heavier mechanical equipment or large multi-conduit racks you want a malleable iron clamp instead, such as the Appleton IS-500 or the Thomas & Betts RC-2SC Steel City clamp, rather than spring steel.
4) What is the closest equivalent to the Minerallac 500 beam clamp if I need a malleable iron body instead of spring steel?
The Minerallac 500 is a spring steel clamp with a zinc phosphate finish, fitting flanges up to 1/2 inch. If you want a cast body, the Appleton IS-500 is a malleable iron beam clamp with a screw-type hexagonal head and a 1/4-20 tapped hole, and the Thomas & Betts RC-2SC Steel City clamp is galvanized malleable iron sized for a 2 inch flange. Malleable iron clamps are heavier and bolt down with a hex head screw; the spring steel 500 relies on its set screw and spring body against the flange.
5) My beam flange is wider than 1/2 inch - what should I use instead of the Minerallac 500?
The Minerallac 500 is built for flanges up to 1/2 inch, so a thicker flange is outside its range. The Thomas & Betts RC-2SC Steel City beam clamp is a 2 inch galvanized malleable iron clamp and covers the heavier flange thicknesses that the 500 cannot reach. Confirm the actual flange thickness at the point of attachment before ordering either one.
6) I am only hanging 1/4-20 threaded rod. Is there a simpler clamp than the Minerallac 500?
Yes. The Kindorf FBC1 structural beam clamp is made specifically for 1/4 inch-20 threaded rod and also ships 100 to a pack. The Minerallac 500 is the broader choice because it has pass holes for both 1/4 inch and 3/8 inch rod plus 1/4-20 and #10-24 thread impressions, so pick the 500 if you want one clamp that covers both rod sizes on the same job and the FBC1 if every drop on the job is 1/4-20.
7) Can I screw a fixture or box directly to the beam clamp instead of using rod?
Yes, that's what the thread impressions are for. The 500 carries 1/4"-20 threads on the bottom and the back of the clamp, plus #10-24 on the back, and has two fastening holes. So you can hang rod off the bottom, or fasten a box, strap or small fixture straight to the back of the clamp without a rod drop at all.
8) Is a spring steel beam clamp or a malleable iron beam clamp the right choice?
Spring steel clamps like the Minerallac 500 snap onto the flange and tighten with a set screw, which makes them fast to install in volume and good for light loads up to the clamp's 100 lb rating. Malleable iron screw-type clamps, like the Appleton IS-500 with its hexagonal head and 1/4-20 tapped hole, are the heavier-duty route when load or vibration is the concern. For 1/4"-20 rod work in bulk, the Kindorf FBC1 structural beam clamp is another 100-pack option.
9) Will a zinc phosphate beam clamp hold up outdoors or in a damp area?
Zinc phosphate is a black protective coating that improves corrosion resistance over bare steel, and it's well suited to interior commercial and industrial work. For wet or exterior exposure, a galvanized clamp is the better call; the Thomas & Betts RC-2SC Steel City clamp is galvanized malleable iron.
10) Are Minerallac beam clamps made in the USA for a Buy American spec?
The Minerallac 500 beam clamp is manufactured in the United States, which is the detail that matters on federal, state and institutional jobs carrying domestic-sourcing language. Country of origin is United States as supplied.
11) Does the Appleton IS-500 accept 3/8 inch threaded rod like the Minerallac 500?
No. The Appleton IS-500 is a screw-type malleable iron clamp tapped 1/4-20, so it is a 1/4 inch rod device. The Minerallac 500 carries pass holes for both 1/4 inch and 3/8 inch threaded rod, so if any of your drops step up to 3/8 inch rod the 500 is the one that takes them without a second part number.
12) For an outdoor or damp structural location, how does the Minerallac 500 finish compare to the alternatives?
The Minerallac 500 uses a black zinc phosphate finish over spring steel. If you want a galvanized coating on a cast body for a wet or exterior steel location, the Thomas & Betts RC-2SC Steel City beam clamp is galvanized malleable iron. Match the clamp coating to the rest of the support assembly so you are not mixing coatings at the connection.
13) How many Minerallac 500 beam clamps come in a box?
They ship 100 clamps to the pack, which is the practical count for a crew running conduit or fixture drops across a floor. Only the model 500 clamp is sold on it, so there's no size or finish decision to make at order time.
