SharkBite 25568 Dishwasher Installation Kit with Push-to-Connect PEX Fittings

SharkBite 25568 Dishwasher Installation Kit with Push-to-Connect PEX Fittings

(No reviews yet) Write a Review

Model: 25568

In Stock (leaves warehouse same day if ordered before 3pm ET)

$52.57
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SharkBite 25568 Dishwasher Installation Kit with Push-to-Connect PEX Fittings

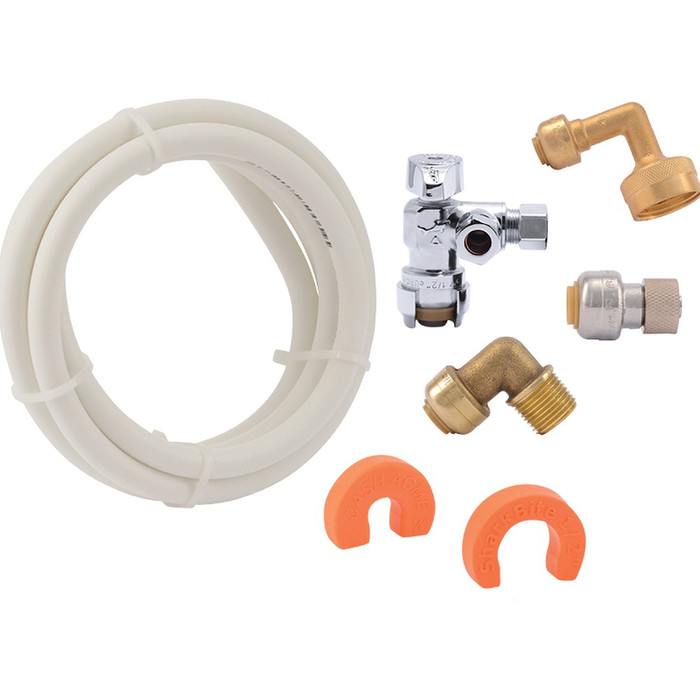

The SharkBite 25568 Dishwasher Installation Kit gives plumbers and contractors everything needed to rough-in and connect a new dishwasher without glue, soldering, unions, or specialty tools. The kit is built around SharkBite's push-to-connect design and includes a 1/2 in. dual outlet angle stop valve, a 1/4 in. x 3/4 in. MPT elbow, a 1/4 in. x 3/4 in. GHT elbow, a 1/4 in. stop valve adapter, a 10 ft. coil of 1/4 in. PEX pipe, and two disconnect clips (1/2 in. and 1/4 in.). The dual outlet angle stop valve works with copper, PEX, or CPVC supply lines, and the push-to-connect fittings are also compatible with PE-RT.

Key Features

  • Trade Size: 1/2 in. dual outlet angle stop valve with 1/4 in. x 3/4 in. MPT elbow, 1/4 in. x 3/4 in. GHT elbow, and 1/4 in. stop valve adapter for dishwasher supply connections.
  • PEX Supply Line: Includes a 10 ft. coil of 1/4 in. PEX pipe that can be cut to the exact length needed, eliminating excess line behind the dishwasher.
  • Durable Construction: Lead-free DZR brass construction on fittings for durability and reliability in behind-the-wall and underground applications.
  • Push-to-Connect Design: Insert the pipe and stainless steel teeth grip tight while a specially formulated O-ring compresses to create a seal - no solder, glue, unions, or tools required.
  • Rotatable Fittings: Fittings can be rotated on the pipe after installation, making it easier to work in tight spaces behind appliances.
  • Disconnect Clips: Two disconnect clips (1/2 in. and 1/4 in.) allow the simple disconnect tool to release fittings from the pipe for fast disassembly and reuse.
  • Compatible Materials: Push-to-connect compatible with PEX, copper, CPVC, or PE-RT piping systems.
  • Pressure & Temperature Rating: Rated to 200 degrees F and 200 PSI.

Certifications & Compliance

  • Certified as a manufactured joint and for underground and behind-the-wall applications without access panels
  • Listed by IAPMO
  • Design certified and listed to ASSE 1061/NSF 61

Technical Specifications

  • Valve: 1/2 in. dual outlet angle stop valve
  • Elbow 1: 1/4 in. x 3/4 in. MPT elbow
  • Elbow 2: 1/4 in. x 3/4 in. GHT elbow
  • Adapter: 1/4 in. stop valve adapter
  • PEX Coil: 10 ft. of 1/4 in. PEX pipe
  • Disconnect Clips: 1/2 in. and 1/4 in.
  • Packaging: 3 ea

Typical Applications

  • Dishwasher Water Supply Rough-In
  • Residential and Commercial Kitchen Appliance Connections
  • Behind-the-Wall and Underground Installations Without Access Panels
  • Copper, PEX, CPVC, or PE-RT Supply Line Connections
  • Appliance Replacement and Retrofit Plumbing

Why SharkBite?

SharkBite push-to-connect fittings use lead-free DZR brass construction and are listed by IAPMO and design certified to ASSE 1061/NSF 61, giving plumbers a reliable, reusable connection method rated to 200 degrees F and 200 PSI. The rotatable, tool-free design speeds up dishwasher installations while the included disconnect clips make future service or appliance swaps fast and straightforward.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
SHK-20260923
Product Type:
Dishwasher Installation Kit
Connection Type:
Push-to-Connect
Standards:
ASSE 1061/NSF 61
Listing:
IAPMO
Department:
Plumbing
Product Subgroup:
Parts & Accessories
Product Material:
Brass
Product Size:
1/2" x 1/4"
Product Group:
Fitting

SharkBite 25568 – Frequently Asked Questions

1) Will the SharkBite 25568 angle stop valve work on a copper stub-out, or do I need PEX?
The 1/2 in. dual outlet angle stop valve connects to copper, PEX, or CPVC supply lines, and the push-to-connect fittings also accept PE-RT. The inlet pushes straight onto a 1/2 in. stub-out of any of those materials with no soldering or glue, so an existing copper stub is fine.
2) Can I run the SharkBite 25568 connections inside a wall or under a slab with no access panel?
Yes. The push-to-connect fittings are certified as a manufactured joint and for underground and behind-the-wall use without access panels, and the brass bodies are lead-free DZR for those buried applications. They are listed by IAPMO and design certified to ASSE 1061/NSF 61.
3) Why two different elbows in the SharkBite dishwasher kit, MPT and GHT?
They cover the two ways dishwashers take water. The 1/4 in. x 3/4 in. MPT elbow threads into a dishwasher inlet with a female 3/4 in. pipe thread, and the 1/4 in. x 3/4 in. GHT elbow mates to a garden-hose-thread inlet. Both take the 1/4 in. PEX supply on the push-to-connect side, so you pick the one that matches the appliance and set the other aside.
4) Is the 25568 kit rated for a hot water dishwasher feed?
It is rated to 200 degrees F and 200 PSI, which covers a domestic hot water supply to a dishwasher. The same rating applies to the push-to-connect joints, so the stop valve, elbows, and 1/4 in. PEX run all share it.
5) Do I need a special tool to take a SharkBite push-to-connect fitting back apart?
The kit includes two disconnect clips, one 1/2 in. and one 1/4 in., which work with the simple disconnect tool to release a fitting from the pipe. Fittings come off and go back on, so swapping an appliance later does not mean cutting the line. No tools are needed to make the connection in the first place.
6) Why a dual outlet angle stop for a dishwasher instead of a single stop?
A dual outlet stop lets one 1/2 in. supply feed two things, typically the kitchen faucet and the dishwasher, off a single stub-out under the sink. That avoids adding a tee and a second stop in a crowded cabinet. The 25568 pairs that 1/2 in. dual outlet angle stop valve with a 1/4 in. stop valve adapter for the dishwasher leg.
7) Is the SharkBite 25568 lead-free for potable water?
The fittings use lead-free DZR brass and are design certified and listed to ASSE 1061/NSF 61, with an IAPMO listing. That covers potable water service, which is what a dishwasher feed is.
8) Is 10 feet of 1/4 inch PEX enough for a dishwasher supply, and can I shorten it?
The 10 ft. coil of 1/4 in. PEX is meant to be cut to the exact length of the run, so you are not coiling excess line behind the dishwasher. One kit covers a typical under-sink stop to appliance run with margin; for a long island or peninsula run, measure the path first.
9) Can the fittings be turned after they are pushed on? Space behind my dishwasher is tight.
They rotate on the pipe after installation, which is the point of the design for appliance work. You can seat the elbow and then spin it to aim the PEX where it needs to go without breaking the joint, useful when you are reaching behind a cabinet or an installed dishwasher.
10) What is the SharkBite part number for the dishwasher install kit, and how is it packaged?
The part number is SharkBite 25568, and the packaging is 3 each.
