SharkBite UIP714 1-in IPS PVC Disconnect & Gauge Tool

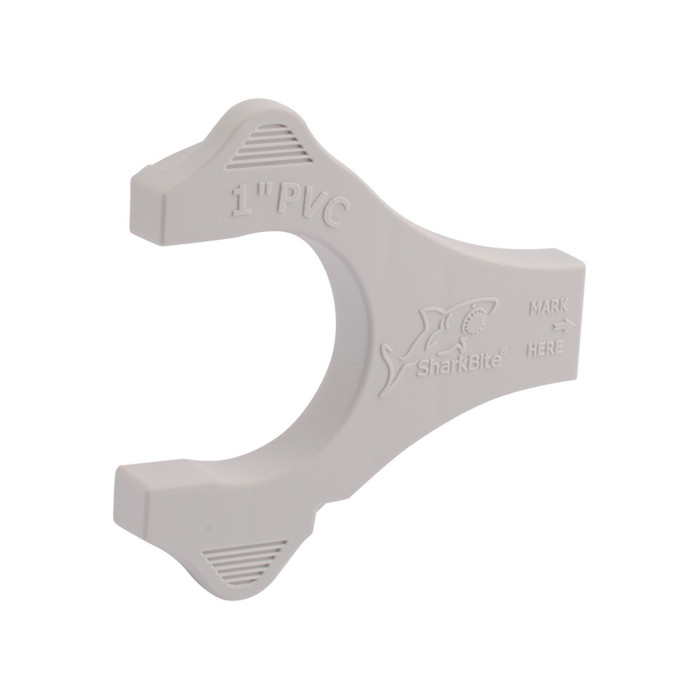

The SharkBite UIP714 1-in IPS PVC Disconnect & Gauge Tool is a dual-purpose rough-in tool used to release a SharkBite PVC fitting from schedule 40, 80, or 120 PVC pipe. It is compatible with white collar iron pipe-sized (IPS) fittings in the 1-in trade size, and it doubles as a depth gauge for marking proper insertion depth on PVC pipe to help ensure a watertight connection when the fitting is re-installed. For plumbers and contractors working with SharkBite push-to-connect PVC fittings in the field, this tool is a practical addition to the truck box, letting a fitting be safely disconnected and re-checked for correct pipe insertion without cutting or damaging the fitting or the pipe.

Key Features

  • Trade Size: Sized for 1-in IPS (iron pipe size) PVC pipe and fittings.
  • Fitting Release Function: Used to release a SharkBite PVC fitting from schedule 40, 80, or 120 PVC pipe for rework or reconfiguration.
  • Fitting Compatibility: Compatible with white collar iron pipe-sized fittings in the SharkBite PVC line.
  • Depth Gauge Function: Doubles as a depth gauge to mark the proper insertion depth on PVC pipe, helping ensure a watertight connection.
  • Tight-Space Design: Ideal for working in tight spaces where a standard disassembly method is impractical.
  • Fast Disassembly: Enables quick and easy disassembly of a connected fitting from the pipe.
  • Sold in Multi-Packs: Packaged 6 per unit, so a crew or service truck can keep several on hand.

Technical Specifications

  • Trade Size: 1-in IPS
  • Compatible Pipe Schedules: Schedule 40, 80, and 120 PVC pipe
  • Fitting Type Compatibility: White collar iron pipe-sized (IPS) SharkBite PVC fittings
  • Packaging: 6 each per pack

Typical Applications

  • Removing SharkBite PVC fittings from schedule 40, 80, or 120 PVC pipe runs
  • Marking correct pipe insertion depth before final assembly of a SharkBite PVC fitting
  • Rework and reconfiguration of rough-in PVC piping behind walls or under floors
  • Service and repair work in confined or tight-access spaces
  • Residential and commercial rough-in PVC plumbing installations

Why SharkBite?

SharkBite tools are built to support the installation, service, and rework of its push-to-connect PVC fitting system, and the UIP714 Disconnect & Gauge Tool is purpose-made to work with white collar IPS fittings across schedule 40, 80, and 120 PVC pipe. By combining a fitting-release function with a depth gauge in one compact tool, it helps plumbers and contractors disconnect fittings cleanly and confirm proper pipe insertion depth for a watertight connection, saving time on rough-in and repair jobs.

Manufacturer Resources

Product Specs

list_batch:
SHK-20260923
Product Type:
Disconnect Tool
Configuration:
Depth Gauge
Department:
Plumbing
Product Subgroup:
Pipe and Tubing
Product Material:
PVC
Product Size:
1"
Product Group:
Fitting

SharkBite UIP714 – Frequently Asked Questions

1) Will the SharkBite UIP714 disconnect tool work on 1/2-inch or 3/4-inch SharkBite PVC fittings?
No. The UIP714 is sized for 1-inch IPS only. Using it on a smaller trade size won't engage the collar, so you'd need the disconnect tool matched to that size. If your run is 1-inch iron pipe size PVC, this is the right one.
2) Can I use the UIP714 on schedule 80 PVC, or is it only for schedule 40?
It releases SharkBite PVC fittings from schedule 40, 80, and 120 PVC pipe. The wall thickness changes between schedules but the outside diameter of 1-inch IPS pipe does not, which is why one tool covers all three.
3) Does the SharkBite UIP714 work on the brass push-to-connect fittings for copper and PEX?
No. The UIP714 is made for SharkBite's white collar iron pipe-sized PVC fittings. The copper/PEX/CPVC push-fit line uses a different disconnect clip or tongs, so keep this one with your PVC fittings.
4) How do I know how far to push 1-inch PVC pipe into a SharkBite PVC fitting?
That is the second job this tool does. The UIP714 doubles as a depth gauge: you use it to mark the correct insertion depth on the pipe before assembly, then push to the mark so the pipe seats fully and the joint seals. Mark it before you push rather than guessing, especially on a rough-in you are about to cover.
5) Can I take a SharkBite PVC fitting off without cutting the pipe?
Yes, and that's the point of the UIP714. It releases the fitting from the pipe so the fitting and the pipe both survive for reuse, instead of cutting the joint out and adding couplings. Useful on rework behind a wall or under a floor where you cannot afford to lose pipe length.
6) Does the UIP714 come as a single tool or a multi-pack?
It ships 6 each per pack. For a service fleet or a crew that's one per truck box rather than one tool passed around; order quantity accordingly if you only need a single gauge.
7) Is there a tool that works in tight spaces where you can't get a hand around the fitting collar?
The UIP714 is built for that. It's a compact release tool for 1-inch IPS SharkBite PVC fittings, intended for confined access where pulling the collar back by hand or with standard disassembly isn't practical, such as under a floor or inside a wall cavity.
8) What is the SharkBite part number for the 1-inch IPS PVC disconnect tool?
Order it as SharkBite UIP714. One model covers the 1-inch IPS white collar PVC fittings and acts as the depth gauge for the same size.
