Sioux Chief 630WGD288E PEX Dou...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$29.00

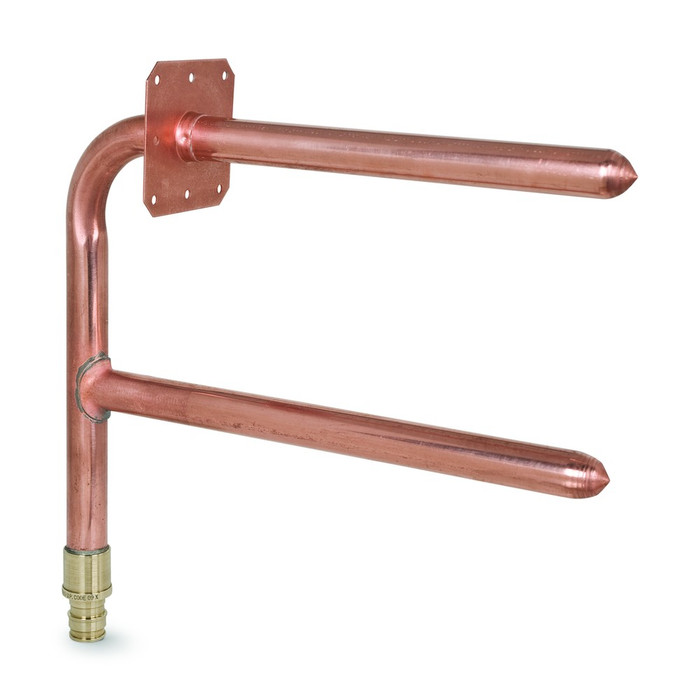

Sioux Chief 630WGD288E PEX Double Stub-Out Elbow with Ear, No-Lead

Sioux Chief 630WGD288E PEX Double Stub-Out Elbow with Ear, No-Lead

(No reviews yet) Write a Review

Model: 630WGD288E

In Stock (leaves warehouse same day if ordered before 3pm ET)

$29.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sioux Chief 630WGD288E PEX Double Stub-Out Elbow with Ear, No-Lead

The Sioux Chief 630WGD288E is a No-Lead/DZR double stub-out elbow built to bridge PEX rough-in piping with copper fixture connections. It features a 1/2" F1960 PEX expansion connection on the inlet and two 8" copper stub outs with a brazed saddle joint, plus a mounting ear for secure wall or stud attachment. This fitting combines the versatility of traditional copper stub outs with the speed and ease of PEX installation, making it well suited for kitchen rough-in applications where both a cold and a hot supply are needed from a single point — for example, cold water to a sink and icemaker, and hot water to a sink and dishwasher.

Key Features

  • Trade Size: 1/2" F1960 PEX connection x 8" x 8" copper stub outs for dual fixture supply from one rough-in point.
  • No-Lead/DZR Construction: Manufactured as NL/DZR (dezincification-resistant), suited for potable water supply line rough-in.
  • PEX Expansion Connection: F1960 inlet connection combines the ease of PEX installation with the familiarity of copper stub outs at the fixture end.
  • Brazed Stub-Out Saddle Joint: The dual 8" stub outs are joined with a brazed saddle joint for a secure, permanent connection between the two outlets.
  • Mounting Ear: Integrated ear allows the fitting to be fastened to a stud or blocking, holding stub-out spacing and alignment steady during rough-in and after drywall closes the wall.
  • Kitchen Application Design: Configured for common kitchen rough-in needs — cold water branching to a sink and icemaker, and hot water branching to a sink and dishwasher — from a single PEX supply line.

Technical Specifications

  • Connection: 1/2" F1960 PEX x 8" x 8" copper stub outs
  • Material/Alloy: No-Lead/DZR
  • Joint Type: Brazed stub-out saddle joint
  • Country of Origin: United States
  • Packaging: 25 EA per pack

Typical Applications

  • Kitchen Sink Hot and Cold Rough-In
  • Icemaker Supply Line Branching
  • Dishwasher Supply Line Branching
  • PEX-to-Copper Transition at Fixture Stub Outs
  • Residential Rough-In Plumbing Behind the Wall

Why Sioux Chief?

Sioux Chief builds the 630WGD288E as a No-Lead/DZR fitting that lets plumbers install PEX supply lines while still terminating at the familiar copper stub outs fixtures and appliances connect to. The brazed saddle joint and integrated mounting ear are designed to keep both stub outs aligned and secure through rough-in, drywall, and final trim-out, reducing callbacks on kitchen hot/cold branch runs.

Note: Prop 65 WARNING applies to this product.

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Stub-Out Elbow
Connection Type:
PEX F1960
Configuration:
Double Stub-Out with Ear
Country of Origin:
United States
Department:
Plumbing
Product Group:
Rough-In and Supports
Product Subgroup:
Fittings and Valves
Product Material:
No-Lead
Product Size:
1/2" x 8" x 8"

Sioux Chief 630WGD288E – Frequently Asked Questions

1) Will the Sioux Chief 630WGD288E connect to 1/2 inch PEX-a with an expansion tool?
Yes. The inlet on the 630WGD288E is a 1/2 inch F1960 PEX expansion connection, which is the cold-expansion fitting standard used with PEX-a and an expansion tool. It will not work with crimp or press fittings, so if your rough-in is PEX-b on copper crimp rings you need a different connection style.
2) How does one stub-out elbow feed both a sink and a dishwasher?
The 630WGD288E is a double stub-out: one 1/2 inch F1960 PEX inlet feeds two 8 inch copper stub outs joined by a brazed saddle joint. That lets a single supply line serve two points, so the cold run can feed a sink and an icemaker while the hot run feeds a sink and dishwasher. You still need one fitting per temperature, so a kitchen rough-in takes two.
3) Do I need a separate drop-ear bracket to secure this stub out in the wall?
No. The 630WGD288E has an integrated mounting ear, so you fasten it directly to a stud or blocking. That holds the two 8 inch stub outs on spacing and alignment through drywall and trim-out, which is the main reason to pick the eared version over a plain stub-out elbow.
4) Is this stub-out elbow safe for potable water lines?
The 630WGD288E is built as No-Lead/DZR brass, dezincification resistant, and is intended for potable water supply rough-in. A Prop 65 warning does apply to the product.
5) Why use a copper stub out instead of running PEX all the way to the fixture?
A copper stub out gives you a rigid, familiar tube to sweat or compress a stop valve onto at the fixture, which PEX tubing alone cannot do well at the wall. The 630WGD288E keeps PEX behind the wall for speed and transitions to 8 inch copper stub outs at the fixture end, so supply stops, icemaker boxes, and dishwasher connections land on copper.
6) Is the 630WGD288E suitable for a 1/2 inch hot water branch, or cold only?
Either. The same fitting is used for both legs of a kitchen rough-in: one for cold branching to sink and icemaker, one for hot branching to sink and dishwasher. The No-Lead/DZR body and brazed saddle joint are the same regardless of which temperature you run through it.
7) How many Sioux Chief 630WGD288E stub-out elbows come in a pack?
They are packaged 25 each per pack. For a multi-family or production build that is roughly a dozen kitchens' worth, since each kitchen needs one for hot and one for cold. Country of origin is the United States.
