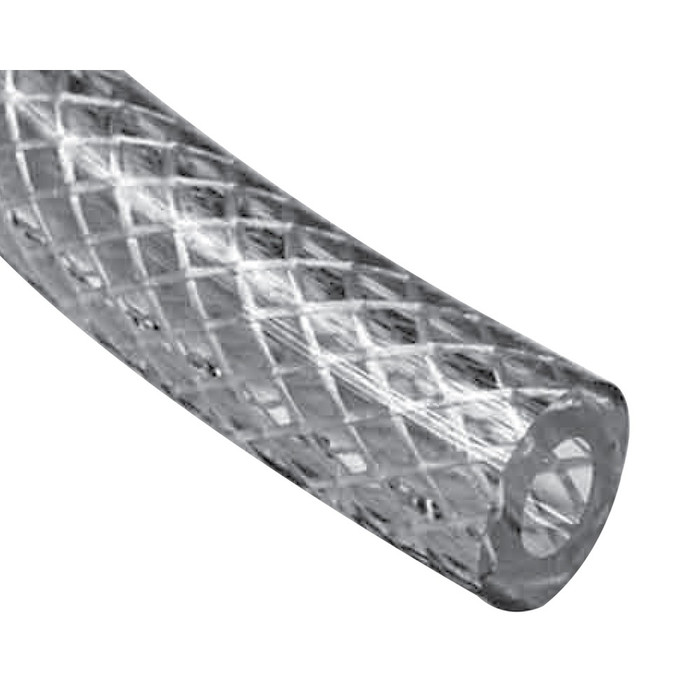

Sioux Chief Braided Vinyl Tubing, Clear PVC Reel

Sioux Chief Braided Vinyl Tubing, Clear PVC Reel

(No reviews yet) Write a Review

Model: 900-02256C00755

In Stock (leaves warehouse same day if ordered before 3pm ET)

$69.64
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sioux Chief Braided Vinyl Tubing, Clear PVC Reel

The Sioux Chief Braided Vinyl Tubing line is a family of clear, polyester-reinforced PVC tubing supplied on bulk reels for rough-in, shop, and maintenance use. This series is available across multiple inside diameter, outside diameter, and reel-length combinations to match a range of hydraulic, pneumatic, and vacuum line applications. Every option in the family shares the same core construction: polyvinyl chloride tubing reinforced with a polyester braid that delivers roughly four times the working pressure capability of single-wall PVC tubing, making it a dependable choice for plumbers, maintenance techs, and fabricators who need a flexible line that can handle repeated pressure cycling without failure. The clear wall construction is consistent across the line, letting installers visually confirm flow and check for air bubbles, debris, or blockage without disconnecting the line — a practical advantage on hydraulic test benches, air lines, and vacuum setups alike. Each size is supplied on its own bulk reel so installers can cut tubing to length on site, reducing waste and keeping a single roll on hand instead of stocking a range of pre-cut lengths.

Key Features

  • Sizing: Offered across multiple inside/outside diameter and wall-thickness combinations to suit hydraulic, pneumatic, and vacuum line connections — select the size that matches your application.
  • Durable Construction: Polyvinyl chloride reinforced with polyester braiding for added strength and durability under pressure.
  • Pressure Performance: Delivers roughly four times the working pressure of single-wall PVC tubing, outperforming unreinforced tubing in demanding service.
  • Severe-Duty Rating: Engineered for superior performance under severe operating conditions, a first-rate choice for hydraulic, pneumatic, and vacuum lines.
  • Clear Wall: Clear construction allows visual inspection of flow and line contents without disconnecting fittings.
  • Bulk Reel Supply: Each size is packaged on its own reel, allowing installers to cut custom lengths as needed from a single roll.

Technical Specifications

  • Country of Origin: China
  • Material: Polyester-braided PVC
  • Color: Clear
  • Packaging: Supplied on bulk reels, size and reel length vary by model

Typical Applications

  • Hydraulic Line Connections
  • Pneumatic Air Line Runs
  • Vacuum Line Applications
  • Shop and Maintenance Fluid Transfer
  • Bulk Tubing Stock for Custom-Length Cutting

Why Sioux Chief?

Sioux Chief backs this braided vinyl tubing line with reinforced polyester construction built to outperform single-wall PVC tubing under pressure, giving contractors and maintenance crews a reliable flexible line for hydraulic, pneumatic, and vacuum service across a range of sizes. The bulk reel format keeps a ready supply on hand for cutting to the exact lengths a job requires, reducing waste and reorder frequency. Choose Sioux Chief for rough-in tubing stock that holds up to demanding shop and field conditions.

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Tubing
Country of Origin:
China
Department:
Plumbing
Product Group:
Rough-In and Supports
Product Subgroup:
Pipe and Tubing
Product Material:
PVC
Product Color:
Clear
Product Size:
3/8" ID x 5/8" OD

Sioux Chief 900-02256C00755 – Frequently Asked Questions

1) What sizes and reel lengths does Sioux Chief braided vinyl tubing come in?
Six size and reel combinations, each sold as its own full reel: 1/4 inch ID x 1/2 inch OD on 250 ft, 3/8 x 5/8 on 150 ft, 1/2 x 3/4 on 100 ft, 5/8 x 7/8 on 75 ft, 3/4 x 1 inch on 75 ft, and 1 inch ID x 1-3/8 inch OD on 50 ft. The reel gets shorter as the tubing gets bigger, so if you need long continuous runs in a larger bore, plan on multiple reels.
2) How do I know which tubing size matches my fitting, ID or OD?
Size the Sioux Chief braided tubing by inside diameter, since that is what slips over a barbed or hose fitting. The ID is the first number in each pairing: 1/4, 3/8, 1/2, 5/8, 3/4, and 1 inch. The OD matters when the tube has to pass through a clamp, bushing, or bulkhead, and it runs 1/2 inch on the 1/4 ID up to 1-3/8 inches on the 1 inch ID.
3) Can I use braided PVC tubing on a pressurized air or hydraulic line instead of plain clear vinyl?
That is what the polyester braid is there for. The PVC wall is reinforced with a polyester braid that gives roughly four times the working pressure of single wall PVC tubing, which is why it holds up to repeated pressure cycling on hydraulic test benches and shop air lines. Plain unreinforced clear vinyl is a drain, overflow, and gravity-feed product by comparison.
4) Will braided vinyl tubing work on a vacuum line, or will it collapse?
Vacuum service is one of the named applications for this tubing. The braid reinforcement resists collapse the way a single wall vinyl tube under suction will not, and the same reel covers hydraulic, pneumatic, and vacuum runs.
5) Is this sold by the foot or do I have to buy the whole reel?
It ships as a bulk reel, one reel per size, and you cut your lengths on site. For a maintenance shop that means a single roll on the shelf instead of a rack of pre-cut lengths, with offcuts kept for the next repair.
6) What clamps or fittings do I need with Sioux Chief braided vinyl tubing?
The tubing is supplied as tubing only, with no fittings or clamps on the reel. Match a barbed or hose-end fitting to the inside diameter you order (1/4 through 1 inch) and secure it with a worm-gear or pinch clamp sized to the outside diameter, which ranges from 1/2 inch up to 1-3/8 inches.
7) Is this tubing clear enough to see flow through the wall?
Yes, the wall is clear on every size. You can confirm flow and spot air bubbles, debris, or a blockage without breaking a fitting loose, which is the main reason techs run it on test benches and air lines rather than opaque hose.
8) Where is Sioux Chief braided vinyl tubing made?
Country of origin is China. Material is polyester-braided PVC in clear.
