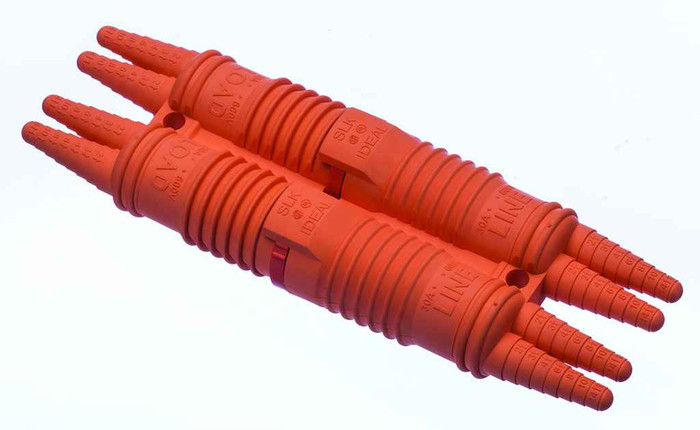

IDEAL Industries 30-S2222D SLK® Disconnect Fused Kit, 2-Pole Dual, Set-Screw 2-Line/2-Load

No fuses in the kit. The 30-S2222D takes a 13/32 x 1-1/2 midget-style fuse, and you order those separately. Size the fuse to the luminaire load, not to the 30A holder rating.

The set-screw terminals take 14 through 2 AWG, and they are rated for both copper and aluminum. That covers typical pole-base feeds through to larger area-lighting runs, and it means you don't need a separate AL-rated connector on an aluminum branch circuit.

Yes. The SLK disconnect is listed to UL 486D, which is the submersible wire connector standard, so it holds up in a wet or flooded pole base, handhole or direct-burial location. That is the reason it gets specified for roadway and parking lot poles where the base fills with water.

It's a 2-pole dual unit with set-screw terminals for 2 line and 2 load conductors, so it fuses both ungrounded legs of a 240V or two-circuit feed. A single-pole kit only breaks one leg; if the fixture is fed line-to-line, you want the 2-pole version.

30A at 600V, with a 105 degree C conductor temperature rating. That 600V rating covers 120, 240, 277 and 480V lighting circuits, which is why it works on both residential-scale area lighting and commercial 480V roadway runs.

The orange body makes the holder easy to spot inside a dark pole base or handhole when a crew is troubleshooting a dead fixture. Breakaway means the holder pulls apart to open the circuit, so a lineman can kill power to the luminaire by hand without cutting conductors, then reconnect it after service. That is the working detail that makes it standard for roadway, street, parking lot and area lighting maintenance.

No. Terminations are set-screw, so it's strip and torque with a screwdriver, no crimper, no dies, no heat shrink. That is part of why it is used for field replacement in a pole base where working room is tight.
