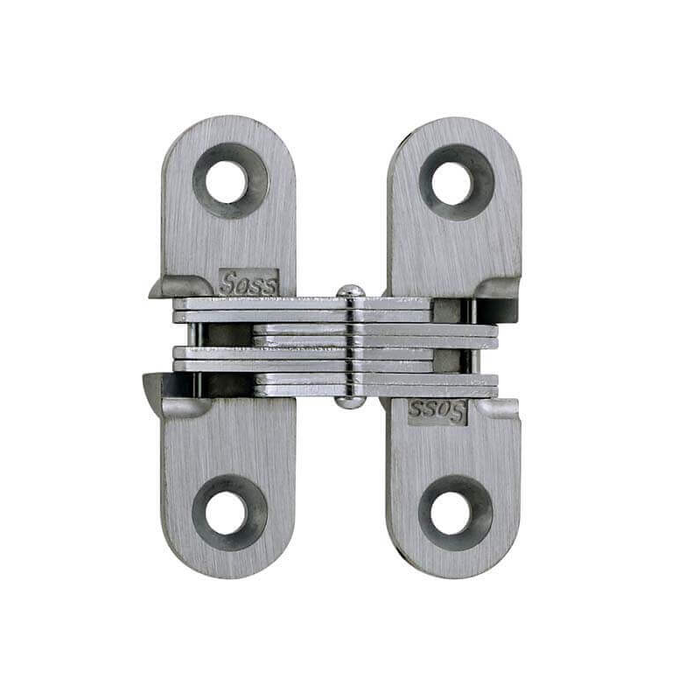

SOSS 203 Series Invisible Hinge, 1-3/4" with 180° Swing for Wood or Metal Doors

SOSS 203 Series Invisible Hinge, 1-3/4" with 180° Swing for Wood or Metal Doors

(No reviews yet) Write a Review

Model: 203CUS26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$33.37
$31.87
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SOSS 203 Series Invisible Hinge, 1-3/4" with 180° Swing for Wood or Metal Doors

The SOSS 203 Series Invisible Hinge is a 1-3/4" concealed hinge engineered for wood or metal applications with a minimum material thickness of 3/4" (suitable for doors 3/4" to 1" thick). Constructed of durable zinc and steel materials, this single action hinge opens a full 180° for smooth, reliable operation. Its cabinet style profile delivers a flush, invisible fit ideal for applications where compact size, superior appearance, and smooth operation are essential. Sold as 1 pair carded, with wood screws included.

Key Features

  • Compact Size: 1-3/4" hinge designed for a minimum door/material thickness of 3/4", suitable for material 3/4" to 1" thick.
  • Durable Construction: Made of zinc and steel materials for long-lasting performance and appearance.
  • Full 180° Swing: Single action hinge design allows the door to open completely flat for maximum accessibility.
  • Invisible Cabinet Style Design: Provides a flush, concealed fit that enhances appearance while maintaining smooth, quiet operation.
  • Versatile Application: Suitable for cabinet, metal, and wood applications where compact size and flush fit are required.
  • Wood Screws Included: Comes with wood screws for installation; machine screws are available for an additional charge.
  • Convenient Packaging: Packaged as 2 each carded, equal to 1 pair, with 10 pairs per container, priced per pair.

Technical Specifications

  • Subcategory: Hinges and Pivots
  • Commercial/Residential: Commercial
  • Product Group: Door Hinges and Pivots
  • Product Type: Hinges and Pivots
  • Duty Level: Light Duty
  • Electronic: No
  • Corner Type: Radius
  • Series: 203 Series
  • Product Size: 1-3/4"
  • Product Category: Door Hinges and Pivots
  • Department: Door Hardware
  • Application: Cabinet, Metal, Wood
  • Min. Material Thickness: 3/4″
  • Fire Rating: No
  • Power Transfer: No
  • Closer: No
  • Counter Bored Screw Holes: No
  • Screws Included: Wood
  • Packaging: 2 each carded / = 1 Pair
  • Packages Per Container: 10 Pair
  • Price Per: Pair

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Cabinet and Millwork Installations
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why SOSS 203?

SOSS 203 Series hinges are built from durable zinc and steel materials designed to provide a flush, invisible fit with smooth, reliable operation across a full 180° swing. Whether used in cabinet, wood, or metal applications, this light duty commercial hinge delivers the compact size and refined appearance that discerning installers and designers expect.

Product Specs

Subcategory:
Hinges and Pivots
Commercial/Residential:
Commercial
Product Group:
Door Hinges and Pivots
Product Type:
Hinges and Pivots
Product Subgroup:
Invisible Hinges
Duty Level:
Light Duty
Electronic:
No
Corner Type:
Radius
Series:
203 Series
Product Function:
Invisible Hinges
Product Size:
1-3/4"
Product Category:
Door Hinges and Pivots
Product Substrate:
Zinc and Steel
Department:
Door Hardware

SOSS 203CUS26D – Frequently Asked Questions

1) Will the SOSS 203 invisible hinge work on a 1-3/8 inch or 1-3/4 inch door?
No. The 203 Series is built for material 3/4 inch to 1 inch thick, and 3/4 inch is the hard minimum. A standard 1-3/8 inch interior door or a 1-3/4 inch commercial door is too thick for it, and you need a larger SOSS invisible hinge sized for that thickness instead. The 1-3/4 inch in the name is the hinge size, not the door it goes in, and that is where most of the ordering mistakes on this model start.
2) Is the SOSS 203 hinge strong enough for a full size entry or high traffic door?
It is a light duty hinge, and that is the limit to work to. The 203 is intended for cabinet doors, millwork panels, and light wood or metal doors in the 3/4 inch to 1 inch thickness range. Hanging a heavy or high cycle opening on it is the wrong application, even in a commercial building. For a full weight door, step up to an invisible hinge rated for a heavier duty level and a thicker door.
3) Can SOSS 203 invisible hinges be used on a fire rated door assembly?
No. The 203 Series carries no fire rating, so it does not belong on a rated opening. If the door is part of a rated assembly, everything in the prep has to be listed for it, and this hinge is not. Use it on non-rated cabinet, millwork, and light door work only.
4) Do SOSS 203 hinges drop into an existing butt hinge mortise?

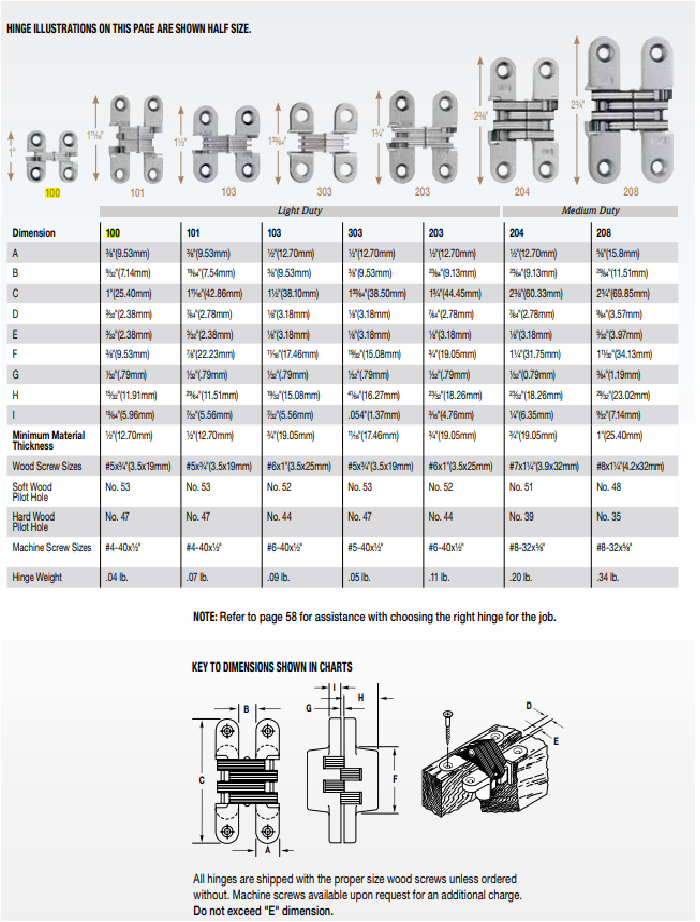

They do not. An invisible hinge needs a routed pocket in the door edge and a matching pocket in the jamb, which is nothing like the shallow flat mortise a butt hinge leaf sits in. Plan on new prep in both the door and the frame. The hinge body uses radius corners, so the pockets are routed rather than chiseled square, and SOSS publishes a hinge location detail and a cased jamb detail for laying the cuts out.
5) How far does a SOSS 203 hinge open, and can the door swing both directions?
Full 180 degrees, in one direction. It is a single action hinge, so the door swings one way only, but it goes all the way flat back, which is what you want on a cabinet or a panel that has to clear the opening completely. If you need a door that pushes both ways, this is not the hinge for it.
6) How many SOSS 203 hinges come in an order, and are screws included?
One order is a pair, two hinges carded together, and wood screws come with them. If you are hanging into metal, the wood screws are no use to you and machine screws are ordered separately, so add them at the same time. The screw holes are not counterbored. Bulk buyers should know a container holds 10 pairs.
7) Can the SOSS 203 be used on a metal door or only on wood?
Both. The 203 is listed for cabinet, wood, and metal applications. What decides it is not the material but the thickness: you need at least 3/4 inch of solid material to take the mortise, and the hinge is sized for 3/4 inch to 1 inch. The hinge itself is zinc and steel. On metal, remember the included fasteners are wood screws, so machine screws have to be added to the order.
8) What finishes do SOSS 203 invisible hinges come in for matching existing hardware?
Eight finishes: satin brass (606), oil rubbed bronze lacquered (613L), bright nickel (618), satin nickel (619), matte black (622), bright chrome (625), satin chrome (626), and unplated (UNP). Because the hinge is fully concealed when the door is closed, finish only shows on the exposed knuckle when the door is open, so most people match the door pulls or the other hardware in the room. Unplated is the choice when the hinge is going somewhere it will never be seen or will be finished separately.
9) Is any part of a SOSS 203 hinge visible when the door is shut?
Nothing shows. The hinge buries in the door edge and the jamb, so with the door closed you see a plain gap and no hardware from either face. That is the whole point of the cabinet style invisible design, and it is why these get specified on millwork, casework, and flush panel work where a surface hinge would break the look. Open the door and only the working knuckle appears in the gap.
10) Does the SOSS 203 have a built in closer or a power transfer for an electrified lock?
Neither. The 203 is a mechanical hinge and nothing more: no self closing action, no electric power transfer, no electronic function. A door on these needs a separate closer if it has to close on its own, and any electrified hardware on the opening needs its own transfer device or a power transfer hinge in one of the other positions.
