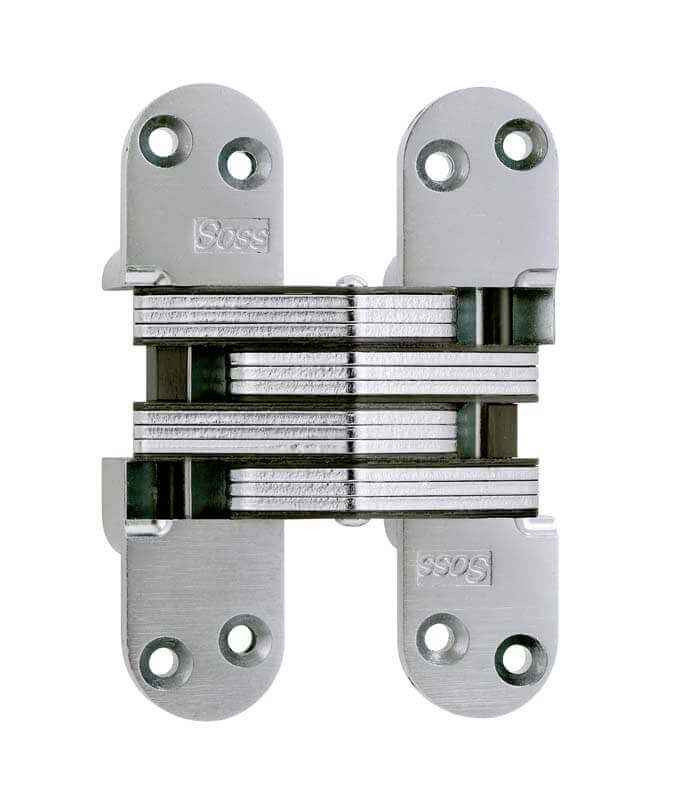

SOSS 220 Series 5-1/2" Invisible Hinge for Wood or Metal Doors

SOSS 220 Series 5-1/2" Invisible Hinge for Wood or Metal Doors

(No reviews yet) Write a Review

Model: 220US26D
From the 220 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$112.93
$86.11
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SOSS 220 Series 5-1/2" Invisible Hinge for Wood or Metal Doors

The SOSS 220 Series Invisible Hinge is a 5-1/2" heavy duty hinge engineered for use in wood or metal applications that are 2" thick or thicker. Constructed of zinc and steel with nylon links for added strength and durability, this full size door style hinge opens a full 180° as a single action hinge, delivering superior appearance and durability wherever flush fit, compact size, and smooth operation are required. Wood and machine screws are included for straightforward installation.

Key Features

  • Product Size: 5-1/2" full size door style hinge suited for full sized entry applications in wood or metal.
  • Min. Material Thickness: Designed for doors 2" thick or thicker, ensuring proper concealment and operation.
  • Heavy Duty Construction: Made of zinc and steel materials with nylon links that add strength and long-term durability.
  • Full 180° Opening: Single action hinge design allows the door to swing a full 180 degrees for maximum flexibility.
  • Invisible, Flush-Fit Design: Compact, concealed construction provides a clean appearance while maintaining smooth operation.
  • Hardware Included: Wood and machine screws are included with each hinge for versatile mounting options.
  • Radius Corner Type: Radius corner design for compatibility with standard mortise preparations.
  • Commercial Grade: Heavy duty rating suitable for demanding commercial door applications.

Technical Specifications

  • Subcategory: Hinges and Pivots
  • Commercial/Residential: Commercial
  • Product Group: Door Hinges and Pivots
  • Product Type: Hinges and Pivots
  • Duty Level: Heavy Duty
  • Electronic: No
  • Corner Type: Radius
  • Series: 220 Series
  • Collection: 220 Series
  • Product Size: 5-1/2"
  • Product Category: Door Hinges and Pivots
  • Department: Door Hardware
  • Application: Full Sized Entry, Metal, Wood
  • Min. Material Thickness: 2″
  • Fire Rating: No
  • Power Transfer: No
  • Closer: No
  • Counter Bored Screw Holes: No
  • Screws Included: Wood and Machine
  • Packaging: 1 / Box = 1 Each
  • Packages Per Container: 1 Each
  • Price Per: Each

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why SOSS 220?

SOSS 220 Series hinges combine zinc and steel construction with nylon links for a heavy duty hinge built to perform in demanding wood and metal door applications 2" thick or thicker. The full 180° single action opening and flush, invisible profile deliver a clean, professional appearance without sacrificing durability. Backed by solid commercial-grade construction, the 220 Series is engineered for reliable, long-term performance in high-traffic entryways.

Product Specs

Subcategory:
Hinges and Pivots
Commercial/Residential:
Commercial
Product Group:
Door Hinges and Pivots
Product Type:
Hinges and Pivots
Product Subgroup:
Invisible Hinges
Duty Level:
Heavy Duty
Electronic:
No
Corner Type:
Radius
Series:
220 Series
Collection:
220 Series
Product Function:
Invisible Hinges
Product Size:
5-1/2"
Product Category:
Door Hinges and Pivots
Product Substrate:
Zinc and Steel
Department:
Door Hardware

SOSS 220US26D – Frequently Asked Questions

1) Will the SOSS 220 invisible hinge work on a standard 1-3/4 inch commercial door?
No, 1-3/4 inch is too thin. The SOSS 220 Series needs material 2 inches thick or thicker to bury the hinge body, in wood or in metal, and 1-3/4 inch is the usual commercial leaf thickness (1-3/8 inch on older interior doors). At 5-1/2 inches it is the full size door style hinge, sized for full sized entry openings built at 2 inches or heavier. If your leaves measure under 2 inches, look for an invisible hinge rated down to that thickness instead of the 220.
2) Can the SOSS 220 invisible hinge be used on a hollow metal door and frame, or is it wood only?
Both. The 220 Series is listed for wood and metal, and each hinge comes with wood screws and machine screws, so you have the correct fastener for either substrate without sourcing anything extra. What rules an opening in or out is thickness, not material: whatever it mortises into, door and jamb alike, has to be 2 inches or thicker.
3) Is the SOSS 220 invisible hinge fire rated for use on a rated opening?
The 220 Series is not fire rated, so keep it off rated door assemblies. A rated opening has to be hung on hinges listed for that assembly, and substituting an unrated concealed hinge will fail an inspection. On non-rated wood or metal doors 2 inches thick or heavier it is a heavy duty commercial hinge.
4) What door and jamb prep does a SOSS 220 invisible hinge need, and do the mortise corners have to be squared?
Radius corner, so no chiseling. The 220 Series is a radius corner hinge, which means a router-cut pocket in the door edge and a matching one in the jamb take it exactly as the router leaves them. Both halves mortise in, which is what gives you the flush, concealed look with the door shut. Wood and machine screws ship with the hinge, so once the pockets are cut there is nothing else to buy to hang it.
5) Does a SOSS 220 invisible hinge swing both ways, and how far does the door open?
One direction only, and a full 180 degrees. It is a single action hinge, so the leaf swings one way and lays back flat against the wall at 180. For a door that has to push and pull from either side, a single action invisible hinge is the wrong part, and you want a double acting hinge or a center-hung pivot instead.
6) When should I use an invisible hinge like the SOSS 220 instead of standard butt hinges?
Use it when you do not want hardware showing. With the door closed nothing is visible on either face, which is why concealed hinges go on flush panel doors, executive offices, and architectural millwork where a butt hinge would break up the surface. The tradeoffs are real: the 220 wants material 2 inches thick or thicker in both door and jamb, it needs a routed mortise on both sides rather than a shallow leaf mortise, it swings one direction to 180 degrees, and it is not fire rated. On a 1-3/4 inch hollow metal opening, or anything rated, butt hinges are the simpler answer.
7) Can a SOSS 220 hinge transfer power to an electrified lock or maglock?
No power transfer through this hinge. The 220 Series is mechanical, not electronic, and has no wiring path, so anything electrified on the opening, an electric strike, an electrified mortise lock, a card reader, needs a separate electric power transfer or door loop run through the jamb. There is no closer function in it either, so a closer is a separate line on the order.
8) What finishes does the SOSS 220 invisible hinge come in, and does the finish even matter on a concealed hinge?
Ten finishes: UNP unplated, 605 bright brass, 606 satin brass, 609 antique brass, 613L oil rubbed bronze lacquered, 618 bright nickel, 619 satin nickel, 622 matte black, 625 bright chrome, 626 satin chrome. Because the hinge disappears when the door is shut, the finish only reads on the door edge and jamb pocket with the door open, so match it to the lockset BHMA number on the same opening and it will never draw attention. UNP is supplied unplated.
9) Is the SOSS 220 sold as a pair or individually?
Individually. Packaging is 1 per box, 1 each, so a door hung on three concealed hinges is a quantity of three, not one. Keep every hinge on a given opening in the same finish, and if you are standardizing across a building, total the openings by hinge count before ordering.
10) Is the SOSS 220 heavy enough for a solid core entry door in a high traffic building?
Heavy duty, commercial grade. The 220 is built from zinc and steel with nylon links, and at 5-1/2 inches it is the full size door style hinge meant for full sized entry doors, not a cabinet or light interior hinge. For office buildings, schools, healthcare, retail, and multi-tenant residential entries it is rated for the traffic; the thing that usually decides whether it suits an opening is the 2 inch minimum material thickness, not the load.
