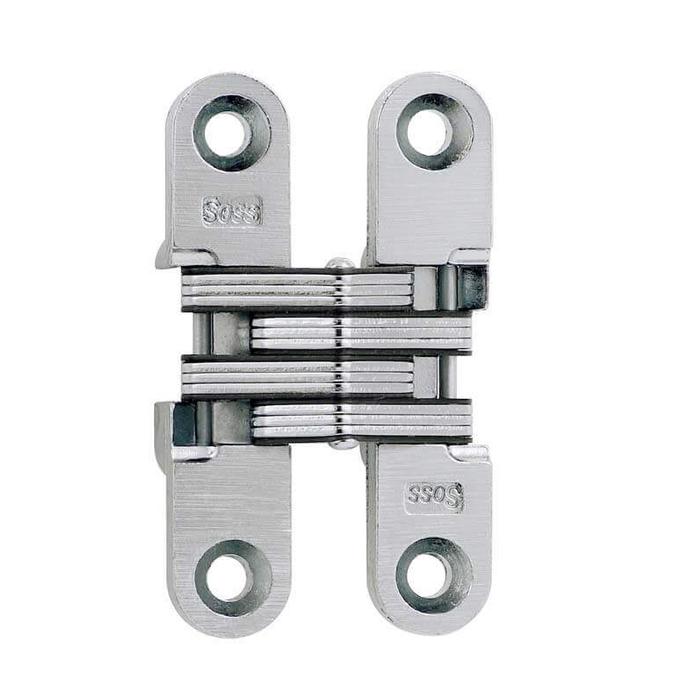

SOSS 204 Series Invisible Hinge, 2-3/8" with Nylon Links, 1 Pair Carded

SOSS 204 Series Invisible Hinge, 2-3/8" with Nylon Links, 1 Pair Carded

(No reviews yet) Write a Review

Model: 204CUS26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$37.16
$32.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SOSS 204 Series Invisible Hinge, 2-3/8" with Nylon Links, 1 Pair Carded

The SOSS 204 Series Invisible Hinge is a fully concealed, single action hinge engineered for wood or metal applications with doors 3/4" to 1" thick. Constructed from zinc and steel materials with nylon links for added strength and durability, this 2-3/8" hinge opens a full 180° and delivers the flush-fit, compact-size appearance that architects and cabinet makers rely on. Ideal for cabinet, exterior, metal, and wood door applications where a clean, invisible profile and smooth operation are essential. Sold as 1 pair carded, with wood screws included.

Key Features

  • Compact 2-3/8" Size: Designed for doors and applications with a minimum material thickness of 3/4", up to 1" thick, for precise cabinet and door fit.
  • Durable Construction: Made of zinc and steel materials with nylon links that add strength and durability for long-term reliable operation.
  • Full 180° Opening: Single action hinge design allows the door to swing completely open while remaining fully concealed when closed.
  • Invisible, Flush-Fit Appearance: Provides a superior appearance with no visible hinge hardware, ideal where flush fit and compact size are necessary features.
  • Versatile Application Range: Suitable for Cabinet, Exterior, Metal, and Wood applications, offering flexibility across commercial and residential projects.
  • Wood Screws Included: Ships with wood screws included; machine screws are available for an additional charge.
  • Convenient Packaging: Packaged 2 per card (1 pair), with 10 packages per container, priced per pair for straightforward ordering.

Technical Specifications

  • Subcategory: Hinges and Pivots
  • Commercial/Residential: Commercial
  • Product Group: Door Hinges and Pivots
  • Product Type: Hinges and Pivots
  • Duty Level: Light Duty
  • Electronic: No
  • Corner Type: Radius
  • Series: 204 Series
  • Product Size: 2-3/8"
  • Product Category: Door Hinges and Pivots
  • Department: Door Hardware
  • Application: Cabinet, Exterior, Metal, Wood
  • Min. Material Thickness: 3/4″
  • Fire Rating: No
  • Power Transfer: No
  • Closer: No
  • Counter Bored Screw Holes: No
  • Screws Included: Wood
  • Packaging: 2 /Card = 1 Pair
  • Packages Per Container: 10
  • Price Per: Pair

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Cabinet and Millwork Manufacturing
  • Multi-Tenant Residential Properties
  • Exterior and Interior Wood or Metal Doors

Why SOSS 204?

SOSS 204 Series hinges combine zinc and steel construction with nylon-reinforced links to deliver dependable, long-lasting performance in cabinet, exterior, wood, and metal door applications. The full 180° single action opening and completely concealed design make this hinge a trusted choice where appearance, compact size, and smooth operation matter most. Engineered for both commercial and residential projects demanding a clean, professional finish.

Product Specs

Subcategory:
Hinges and Pivots
Commercial/Residential:
Commercial
Product Group:
Door Hinges and Pivots
Product Type:
Hinges and Pivots
Product Subgroup:
Invisible Hinges
Duty Level:
Light Duty
Electronic:
No
Corner Type:
Radius
Series:
204 Series
Product Function:
Invisible Hinges
Product Size:
2-3/8"
Product Category:
Door Hinges and Pivots
Product Substrate:
Zinc and Steel
Department:
Door Hardware

SOSS 204CUS26D – Frequently Asked Questions

1) Will the SOSS 204 invisible hinge work on a 3/4 inch door or cabinet stile?
Three quarters of an inch is exactly the floor for the 204. It is built for wood or metal doors from 3/4 inch up to 1 inch thick, and 3/4 inch is the minimum material thickness on both halves of the joint, so the jamb or face frame it mortises into has to be at least that thick as well. Cabinet work is squarely inside that band, since 3/4 inch stock is the common thickness for doors and face frames. Anything over 1 inch thick needs a larger invisible hinge than this 2-3/8 inch model.
2) Are SOSS 204 hinges strong enough for a full size exterior entry door?
No, not a standard entry slab. The 204 is a light duty hinge in a 2-3/8 inch size, made of zinc and steel with nylon links, and its range tops out at 1 inch of material. A typical exterior entry door is 1-3/4 inches thick, which is outside what this hinge mortises into at all. Where it does earn its exterior listing is on lighter concealed work in that 3/4 to 1 inch band, such as cabinet, millwork and light wood or metal doors. For a full thickness entry door you want a heavier invisible hinge sized for 1-3/4 inch stock.
3) Do SOSS 204 invisible hinges come with screws, and what do I need to fasten them to a metal door?
Wood screws ship in the pack. If you are mounting into metal, machine screws are a separate add at extra cost, so order them at the same time rather than discovering it on site. Each card holds two hinges, which is one pair.
4) Can SOSS 204 invisible hinges be used on a fire rated door assembly?
The 204 carries no fire rating, so keep it off rated openings. Use it on non-rated work: cabinet doors, millwork, and light wood or metal doors in the 3/4 to 1 inch range. A rated opening needs hinges listed for that assembly.
5) Does a door hung on SOSS 204 hinges swing a full 180 degrees, and is it a double acting hinge?
Full 180 degrees of swing, and single action, meaning the door goes one direction only, not both ways like a double acting hinge. When the door is shut nothing shows on either face, since the whole hinge buries in the mortise between the door edge and the jamb. That combination is why cabinetmakers and architects reach for it: flush appearance closed, complete access open.
6) I need concealed hinges to match matte black hardware on the rest of the job. What finish choices does the SOSS 204 come in?
Matte black is available as finish 622. The 204 also comes in 613 oil rubbed bronze, 619 satin nickel, 626 satin chrome, 605 bright brass, 606 satin brass, 609 antique brass, and UNP unplated, which is supplied bare with no plated finish. Eight finishes total. Worth noting that on a concealed hinge the finish only reads when the door is open, since nothing is visible with the door shut.
7) Will a SOSS 204 drop into the mortise left by the invisible hinges already on my other doors?
Only if those hinges are the same 2-3/8 inch size. An invisible hinge is routed into a pocket cut to that specific hinge body, so a different size will not sit in an existing prep without recutting. Check the size of what is coming out before ordering, then match finish across the openings so the doors look alike when they stand open. If you are standardizing a building, the 204 covers 3/4 to 1 inch material.
8) Do I have to chisel the mortise corners square for a SOSS 204?
No squaring needed. The 204 has radius corners, so the rounded corners a router bit leaves in the pocket match the hinge leaf as cut. That saves the corner chisel work a square cornered hinge demands on every mortise, which adds up fast across a run of cabinet doors.
9) Can I run wire through a SOSS 204 for an electrified lock or contact?
No. The 204 is a mechanical hinge with no electronic option and no power transfer path through the barrel, so there is nowhere to route conductors. Getting power across that opening means a separate door loop or an electric power transfer mortised into the edge and frame, specified alongside the hinges.
10) Is the SOSS 204 self closing, or do I need a separate closer?
Straight hinge, no closing function built in. Nothing in the 204 pulls the door shut or holds it open, so if the opening needs to self close you are adding a closer on top of the hinges. What it does bring is a 180 degree single action swing on a fully hidden hinge.
11) How are SOSS 204 hinges packaged if I am buying for a run of doors?
Two hinges per card, which is one pair, and pricing runs per pair. Cards pack ten to a container, so a bulk order for a millwork run or a multi unit property scales in tens of pairs. Count the pairs you need per opening before ordering, not the individual hinges.
