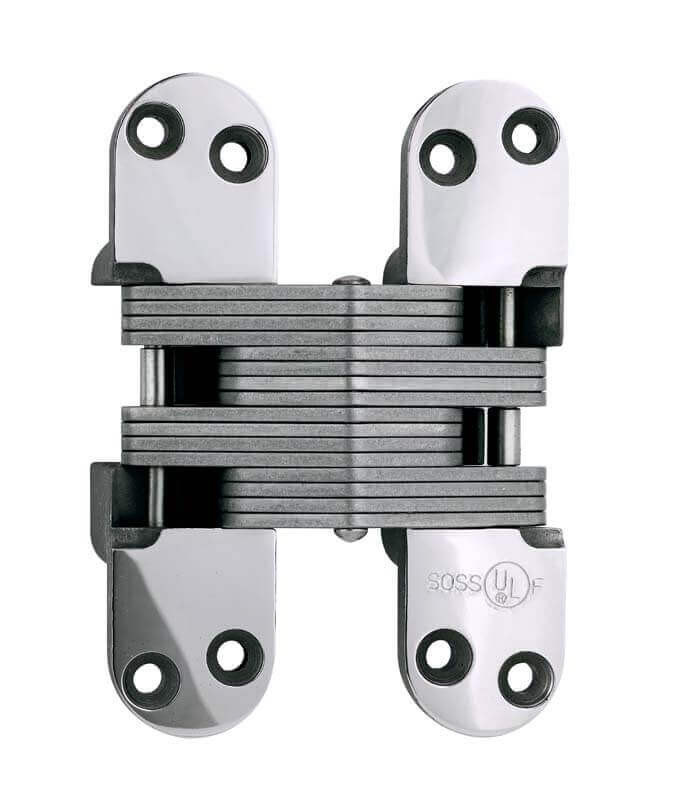

SOSS 220SS Series 5-1/2" Invisible Hinge with 316 Stainless Steel Construction

SOSS 220SS Series 5-1/2" Invisible Hinge with 316 Stainless Steel Construction

(No reviews yet) Write a Review

Model: 220SSUS32D
From the 220 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$546.77
$432.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SOSS 220SS Series 5-1/2" Invisible Hinge with 316 Stainless Steel Construction

The SOSS 220SS Invisible Hinge is engineered for wood or metal door applications with a 2" minimum material thickness, delivering a flush-fit, fully concealed hinge solution for full-sized entry doors. Constructed of complete 316 stainless steel, this 5-1/2" hinge is built for corrosion resistance, smooth single-action operation, and a full 180° opening range. The 220SS carries an Underwriters Laboratories label, supporting use on hollow metal, sheet metal, tin clad, and steel composite fire doors and frames rated up to and including 3 hours, wood core doors and frames rated up to 20 minutes, and wood/plastic composite doors and frames built with Georgia Pacific FS 1 or FS 2 banding rated up to and including 90 minutes.

Key Features

  • Compact Concealed Design: 5-1/2" invisible hinge sized for doors and frames with a 2" minimum material thickness, ideal for exterior, full-sized entry applications in metal or wood.
  • Full Range of Motion: Opens a full 180° as a single action hinge, providing smooth, reliable operation.
  • Corrosion-Resistant Construction: Made of complete 316 stainless steel for long-term durability in demanding commercial environments.
  • Fire-Rated Performance: UL labeled for use on hollow metal, sheet metal, tin clad, and steel composite fire doors and frames rated up to and including 3 hours, wood core doors/frames rated up to 20 minutes, and wood/plastic composite doors/frames with Georgia Pacific FS 1 or FS 2 banding rated up to and including 90 minutes.
  • Hardware Included: Wood and machine screws are included for installation flexibility across substrates.
  • Application-Specific Hinge Count Guidance: Use at least one fire-rated hinge for every 20" of door height (or portion thereof), or one hinge for every 60 lbs. (or fraction thereof), whichever calculation requires more hinges.
  • Heavy Duty Rated: Designed for commercial applications demanding dependable, long-service hardware performance.

Certifications & Compliance

  • Underwriters Laboratories (UL) Labeled
  • Fire Rated up to 3 Hours (Hollow Metal, Sheet Metal, Tin Clad, Steel Composite Doors/Frames)
  • Fire Rated up to 20 Minutes (Wood Core Doors/Frames)
  • Fire Rated up to 90 Minutes (Wood/Plastic Composite Doors/Frames with Georgia Pacific FS 1 or FS 2 Banding)

Technical Specifications

  • Subcategory: Hinges and Pivots
  • Product Group: Door Hinges and Pivots
  • Product Subgroup: Concealed Hinges
  • Commercial/Residential: Commercial
  • Duty Level: Heavy Duty
  • Electronic: No
  • Corner Type: Radius
  • Series: 220 Series
  • Collection: 220 Series
  • Product Size: 5-1/2"
  • Product Category: Door Hinges and Pivots
  • Department: Door Hardware
  • Application: Exterior, Full Sized Entry, Metal, Wood
  • Min. Material Thickness: 2″
  • Fire Rating: 90 / 180 Minutes
  • Power Transfer: No
  • Closer: No
  • Counter Bored Screw Holes: No
  • Screws Included: Wood and Machine
  • Packaging: 1 / Box = 1 Each
  • Packages Per Container: 1 Each
  • Price Per: Each

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why SOSS 220 Series?

SOSS 220 Series invisible hinges deliver professional-grade reliability with complete 316 stainless steel construction, offering corrosion resistance and smooth single-action operation rated for full 180° use. Backed by Underwriters Laboratories fire-door labeling across metal, wood core, and wood/plastic composite applications, the 220SS is engineered for demanding commercial installations where dependable, flush-fit hardware performance is essential.

Product Specs

Subcategory:
Hinges and Pivots
Product Group:
Door Hinges and Pivots
Product Type:
Invisible Hinges
Product Subgroup:
Concealed Hinges
Commercial/Residential:
Commercial
Duty Level:
Heavy Duty
Electronic:
No
Corner Type:
Radius
Series:
220 Series
Collection:
220 Series
Product Function:
Invisible Hinges
Product Size:
5-1/2"
Product Category:
Door Hinges and Pivots
Product Substrate:
Stainless Steel
Department:
Door Hardware

SOSS 220SSUS32D – Frequently Asked Questions

1) Will a SOSS 220SS invisible hinge work on a 1-3/4 inch door?
No. The 220SS needs 2 inches of material thickness minimum, in both the door and the frame, so a standard 1-3/4 inch commercial door is too thin for it. That 2 inch minimum is what the 5-1/2 inch 220 Series body requires to be routed in and stay fully concealed. For a thinner door you need a smaller SOSS invisible hinge sized to that thickness, not this one.
2) Is the SOSS 220SS fire rated, and for how long?
It carries an Underwriters Laboratories label, and the rating depends on the door it goes in. On hollow metal, sheet metal, tin clad and steel composite doors and frames it is labeled up to and including 3 hours. On wood core doors and frames it is 20 minutes. On wood/plastic composite doors and frames built with Georgia Pacific FS 1 or FS 2 banding it is up to and including 90 minutes. So the same hinge gives you three different numbers, and the door construction decides which one applies to your opening.
3) How many SOSS 220SS hinges do I need per door?
Run at least one fire rated hinge for every 20 inches of door height, or any portion of it, and at least one for every 60 pounds of door weight or any fraction of it. Whichever of those two counts comes out higher is the number you order. On a heavy full-size entry door the weight calculation usually drives it, so work both numbers before you buy.
4) Can I use the SOSS 220SS on both wood and hollow metal doors?
Yes, on either, as long as the door and frame have at least 2 inches of material thickness. The application is listed for exterior, full sized entry, metal and wood, and both wood screws and machine screws are in the box for that reason. What changes between the two is the fire label: 3 hours on hollow metal and steel composite, 20 minutes on wood core.
5) Why choose a 316 stainless invisible hinge instead of a standard butt hinge?
Two reasons drive it. The 220SS mortises into the door and frame edge and disappears when the door is closed, so there is no visible knuckle on the face of the opening, and there is no exposed hardware to pry at. And the body is complete 316 stainless steel, which is the grade you want on an exterior entry or in a coastal or wash-down environment where a plated butt hinge will corrode. A butt hinge is cheaper and easier to install, and it does not need a 2 inch thick door. If the opening is interior, thinner than 2 inches, or nobody cares about the sightline, a butt hinge is the simpler call.
6) Does the SOSS 220SS come with screws, or do I need to buy fasteners separately?
Both wood and machine screws ship with the hinge, so it covers a wood door into a wood frame and a metal door into a metal frame without a separate fastener order. It is packed one hinge per box, one each, so order the full hinge count your door height and weight calculation calls for rather than assuming a set comes in the carton.
7) Is the SOSS 220 Series hinge rated for high traffic commercial openings?
It is a heavy duty, commercial rated hinge, which is the class you want on an entry that cycles all day in an office building, school, hospital, retail space or multi-tenant residential building. The 316 stainless body is the corrosion side of that, aimed at exterior openings and wet or chemical environments where a plated hinge pits. It is not an electronic hinge and carries no power transfer, so if you need to run power to an electrified lock through the hinge, this is not the part.
8) Where do I locate SOSS 220 hinges on the door, and what routing do I need?
SOSS publishes the cutout and placement drawings for the 220 rather than leaving it to the field: a hinge location drawing for spacing up the door edge, a cased jamb detail for the frame side, an open clearance detail, and a 90 degree open drawing. Pull those before you rout, because a concealed hinge pocket is unforgiving and the mortise has to land in a door with at least 2 inches of material. The hinge has a radius corner cutout.
9) Do I need to specify handing when ordering a SOSS 220SS invisible hinge?
No handing to call out. The 220SS is a single action hinge that mortises into the edge of the door and the jamb, so the same part works left or right hand. What you do have to specify is the finish, 629 bright or 630 satin, and the quantity, since each box holds one hinge and the door height and weight rules set how many the opening needs.
10) What finishes does the SOSS 220SS invisible hinge come in?
Two: 629 bright stainless steel and 630 satin stainless steel. On a concealed hinge the finish is only visible on the edge of the door when it stands open, so 630 satin is the usual pick to match the rest of a 630 lever and exit device package on a commercial opening. Both are the same 316 stainless body underneath.
