Spears 413-010 PVC Schedule 40 Side Outlet 90° Socket Elbow

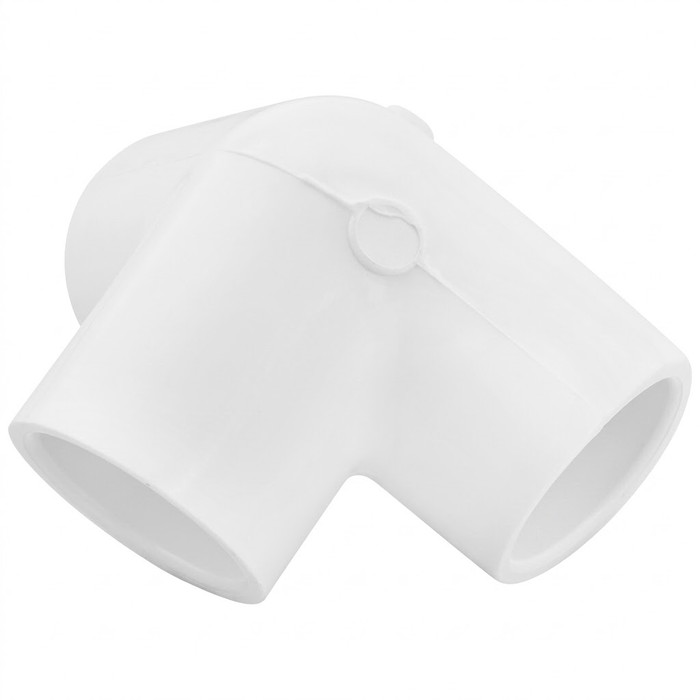

Spears 413-010 1" PVC Schedule 40 Side Outlet 90° Socket Elbow

The Spears 413-010 is a 1" PVC Schedule 40 Side Outlet 90° Socket Elbow designed to combine a standard directional turn with an integral branch connection in a single molded fitting. Molded from PVC for consistent chemical resistance, dimensional stability, and long-term durability, this elbow features socket (SOC) connections on all three ports for solvent-welded assembly with standard 1" Schedule 40 PVC pipe. The side outlet configuration lets installers take off a branch line directly at a 90° turn, eliminating the extra tee, coupling, and pipe segment that a separate branch connection would otherwise require. Sized to Schedule 40 dimensional standards, the 413-010 is built to perform reliably in pressure piping systems used across plumbing, irrigation, and industrial process lines.

Key Features

• Trade Size: 1" socket connections sized to accept standard Schedule 40 PVC pipe on all three ports.
• Durable PVC Construction: Molded PVC body resists corrosion, chemical attack, and degradation for long service life in demanding piping runs.
• Side Outlet Design: Combines a 90° elbow with an integral side outlet, letting a single fitting handle both a directional turn and a branch takeoff.
• Space-Saving Configuration: Replaces a separate elbow-and-tee arrangement with one compact fitting, reducing the number of joints and potential leak points in a run.
• Socket (SOC) Connections: All three openings accept solvent-weld socket joints for a secure, leak-resistant assembly with standard PVC pipe.
• Schedule 40 Sizing: Dimensioned to Schedule 40 standards for straightforward compatibility with existing 1" Schedule 40 PVC piping and fittings.

Technical Specifications

• Refer to manufacturer documentation for complete technical specifications.

Typical Applications

• Residential and Commercial Plumbing Systems
• Irrigation and Water Distribution Piping
• Industrial PVC Process Piping Networks
• Drainage and Waste Piping Systems
• New Construction and Retrofit Piping Projects
• Branch Connections in Pressure Piping Runs

Why Spears?

Spears is a recognized manufacturer of PVC and CPVC piping components, and the 413-010 Side Outlet Elbow reflects that focus with molded PVC construction and Schedule 40 socket connections engineered for dependable, code-compliant piping installations. Choosing a Spears fitting means consistent dimensional accuracy for solvent-welded assemblies, helping installers avoid mismatched joints and rework. This side outlet elbow lets contractors simplify piping layouts by combining a turn and a branch takeoff into one part, while still delivering the corrosion resistance and durability that PVC piping systems are chosen for.
