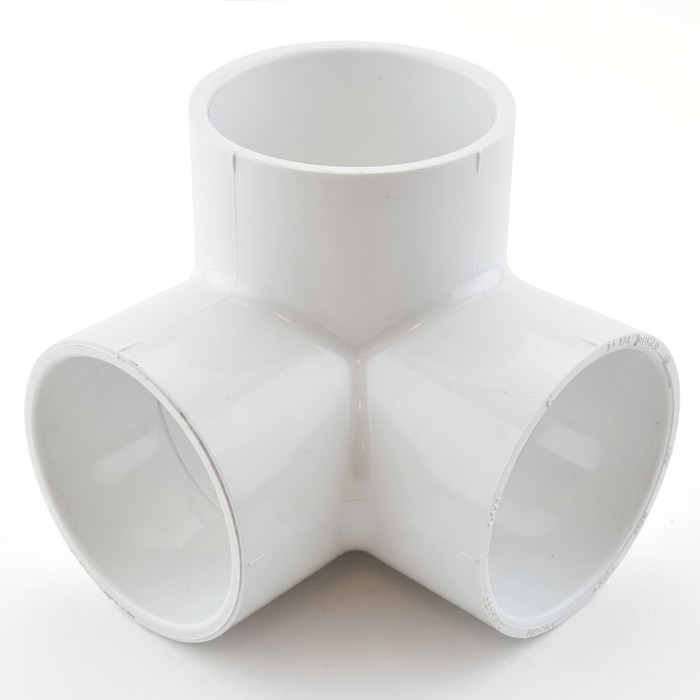

Spears 413-020 2" PVC Schedule 40 Side Outlet Elbow, Socket

Spears 413-020 2" PVC Schedule 40 Side Outlet Elbow, Socket

(No reviews yet) Write a Review

Model: 413-020

In Stock (leaves warehouse same day if ordered before 3pm ET)

$6.54
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Spears 2" PVC Schedule 40 Side Outlet Elbow, Socket

The Spears 2" PVC Side Outlet Elbow is built to Schedule 40 dimensions with solvent-weld socket connections on all three ports. This side outlet elbow combines a standard 90-degree turn with an integrated branch takeoff, letting installers create a perpendicular branch connection without adding a separate tee fitting to the run. Molded from PVC for corrosion resistance, this fitting is suited to Schedule 40 pressure pipe and PVC conduit systems where a compact side-branch connection is required in a single component. The three-way side outlet design is commonly specified where a compact branch connection is needed without altering the overall footprint of the pipe or conduit run. The socket-style Schedule 40 fitting is designed to be solvent welded in place using standard PVC primer and cement, consistent with common Schedule 40 installation practice.

Key Features

  • Trade Size: 2" port size for standard Schedule 40 pipe and conduit branch connections.
  • Durable Construction: Solid PVC construction resists corrosion, chemical attack, and degradation common to metallic fittings.
  • Socket Connection: Solvent-weld socket ends on all three outlets create a secure, leak-resistant joint when properly primed and cemented.
  • Schedule 40 Rating: Schedule 40 wall thickness delivers dependable performance in standard-duty piping and conduit runs.
  • Side Outlet Design: Combines an elbow and a perpendicular branch outlet in one molded fitting, reducing the number of joints, fittings, and labor hours needed for branch takeoffs.
  • Configuration: Three socket outlets arranged as a 90-degree elbow with a perpendicular side branch simplify layout in tight installation spaces.
  • Lightweight Profile: PVC construction keeps the fitting lightweight for faster handling and installation compared to metallic alternatives.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • PVC Schedule 40 Pressure Pipe Systems
  • Irrigation and Sprinkler Branch Line Connections
  • Pool and Spa Plumbing
  • PVC Conduit Branch Takeoffs
  • Schedule 40 Conduit and Pipe Branch Takeoffs in Tight Spaces
  • Commercial and Residential Plumbing Installations

Why Spears?

Spears PVC fittings are engineered for consistent Schedule 40 dimensions and dependable solvent-weld socket connections, making this side outlet elbow a practical choice wherever a compact branch takeoff is needed in place of a separate elbow-and-tee assembly. The PVC construction resists the corrosion and scaling that can affect metallic fittings, helping installers maintain long-term joint integrity in pressure pipe and conduit branch runs. Spears is a recognized manufacturer of PVC pipe and conduit fittings, and the 2" Schedule 40 socket configuration is intended to integrate with standard Schedule 40 PVC systems already in use on the job site. Choose this Spears side outlet elbow for a reliable, code-familiar fitting in Schedule 40 PVC pipe and conduit systems.

Product Specs

list_batch:
SPR-20260918
Product Type:
Side Outlet Elbow
Connection Type:
Socket
Grade:
Schedule 40
Department:
Plumbing
Product Group:
PVC & CPVC Fittings
Product Subgroup:
Fittings and Valves
Product Material:
PVC
Product Size:
2"

Spears 413-020 – Frequently Asked Questions

1) Will the Spears 413-020 side outlet elbow glue onto standard 2 inch Schedule 40 PVC pipe?
Yes. The 413-020 is a 2 inch fitting built to Schedule 40 dimensions with solvent-weld sockets on all three ports, so it slips over the outside diameter of standard 2 inch Sch 40 PVC pipe and is primed and cemented in place. All three openings are the same 2 inch socket size, so the branch takes the same pipe as the run.
2) Does the 413-020 take threaded pipe or does it have to be glued?
Solvent weld only. All three outlets on the 413-020 are socket ends, so there is no thread anywhere on the fitting. You need PVC primer and cement to make the joint. If the layout calls for a threaded connection, transition with a separate male or female adapter downstream of the elbow rather than trying to thread into this one.
3) What is a side outlet elbow used for instead of an elbow and a tee?
A side outlet elbow turns the run 90 degrees and gives you a perpendicular branch takeoff out of the same molded body. Instead of cementing an elbow plus a separate tee and a short nipple between them, you make three joints in one fitting. That matters in tight chases and equipment rooms where there is no room for the extra pipe length, and it cuts joint count on irrigation manifolds and pool plumbing.
4) Can I use the Spears 413-020 on PVC conduit as well as pressure pipe?
Yes, it is suited to both Schedule 40 pressure pipe and PVC conduit systems, and conduit branch takeoffs are one of its stated applications. Since Schedule 40 PVC conduit and Sch 40 pressure pipe share the same outside diameters, the 2 inch socket accepts either.
5) Is the Spears side outlet elbow PVC or CPVC, and does that limit where I can run it?
It is molded PVC, not CPVC. PVC handles cold water, irrigation, pool and spa circulation, and conduit duty, and it resists the corrosion and scaling that affects metal fittings. For hot water service you would need a CPVC fitting instead, and the solvent cement differs between the two materials.
6) What part number do I order for the Spears 2 inch PVC side outlet elbow?
Spears part number 413-020. That is the 2 inch, all-socket, Schedule 40 PVC side outlet elbow. The 413 prefix is the side outlet elbow pattern and the -020 suffix is the 2 inch size, which is the figure a distributor or purchasing desk will match against a submittal.
7) Where do I find laying lengths and socket depths for the Spears Schedule 40 side outlet elbow?
Spears publishes the dimensional data for its Schedule 40 socket fittings in two reference sheets: the PVC Schedule 40 fittings dimensions and weights document and the Schedule 40 dimensions sheet. Those are where you pull center-to-end and socket entry figures when you are dimensioning a manifold or a wall penetration before cutting pipe.
